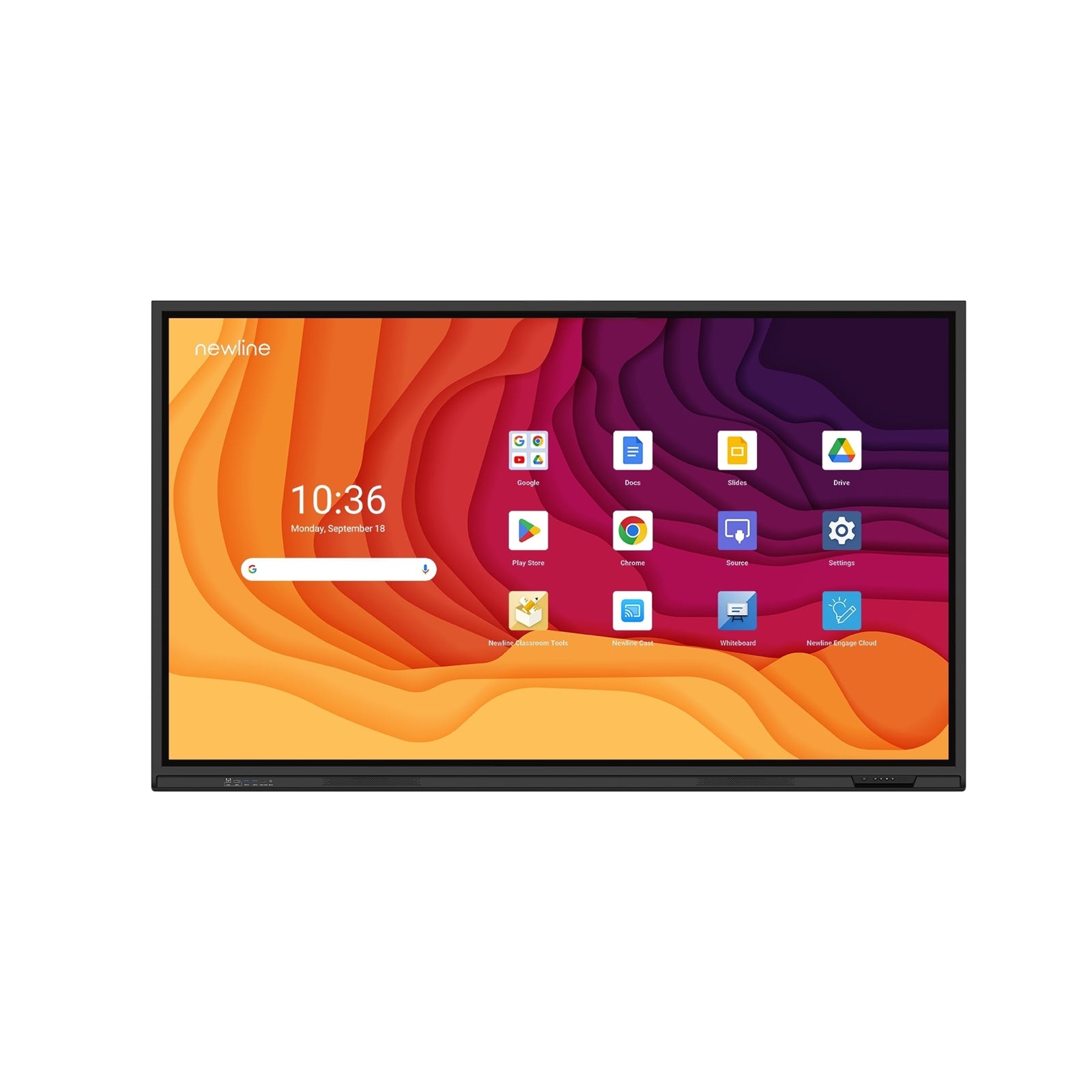

Newline TT-6523QA Lyra Pro 65 Inch Touch Screen Display

Newline Lyra Pro 65" Touch Screen

SECURE EDLA INNOVATION
Discover Lyra Pro, our our dependable enterprise solution. Google EDLA certified, it seamlessly integrates with Google Apps, featuring high-precision zero bonding for unparalleled writing. The display delivers crystal-clear 4K images with sound. Modular upgrades ensure adaptability, while the secure Android 14 platform prioritizes safety. Lyra Pro enhances efficiency and productivity, offering a reliable solution for today's needs.

MODULAR SYSTEM
Elevate your experience with our universe of solutions. Customise your display with Newlines' accessories. Mix and match to create the perfect fit.

NEWLINE INTERACTIVE ECOSYSTEM
The Newline Interactive Ecosystem enhances operations with integrated tools seamlessly across software and devices, meeting business needs and optimizing workflow.

Specifications

MODEL
LYRA Pro 65" TT-6523QA

PANEL
Backlight Direct LED (Wide Color Gamut +
Anti Blue Light)
Glass Surface Anti-Glare + Anti-Fingerprint
+ Antimicrobial Tempered Glass
Bonding Technlogy Certified Zero Bonding
Display Area
65": 1428 x 803 mm
Display Ratio 16:9
Resolution 3840 x 2160 (4K)
Colours 1,07 Billion
Brightness
65": 450 cd/m²
Contrast Ratio 5000:1
Response Time 5 ms
Viewing Angle 178 degrees
Display Life Time = 50 000 hours
Transparency > 88%
Haze 2 % ~ 5 %
Touch Surface Hardness 7 H

POWER CONSUMPTION
Standard mode*
65": 106 W
Standby mode* <0,5 W

TOUCH
Touch Technology Stellar Touch Technology
Touch Points 50 Windows
20 Android/MAC/Linux
Touch Screen Writing Tools Passive pen, Finger, Fist
Number of stylus 2
Accuracy ±1 mm
Real Palm Rejection - Yes

SPEAKER
Speaker Position Front Facing
Speaker Rated Impedance 6 O
Speaker Max.Power Output 20 W x 2

FRONT I/O
USB Type-C (Powered 65 W) 1
HDMI IN 2.1 with HDCP 2.2 1
USB Type-B (Touch) 1
USB 3.2 Type-A 2
Microphone In 1

REAR I/O
HDMI IN 2.1 with HDCP 2.2
(4k @60 Hz) 2
DisplayPort 1.2 1
USB Type-B 3.2 (Touch) 3
USB Type-C (Powered 15 W) 1
USB Type-A 3.2 2
USB 3.2 Type-A to Android 1
HDMI OUT 2.0 (4k @60 Hz) 1
RS232 1
RJ45 (Gigabit) In x 1 / Out x 1
OPS Slot 1
SDM-S Slot 1
SPDIF 1
Audio Line Out (Jack 3,5 mm) 1
Power Out Connect (180 W) 1

SMART SYSTEM
SoC Chipset
GPU
Amlogic A311D2 octa-core
processor 4 x Cortex-A73 at 2,2
GHz, 4 x Cortex-A53 at 2,0 GHz
Arm Mali-G52
RAM 8 GB DDR4
Total Storage 128 GB (Expandable)
Operating System Android 14 Certified
Google EDLA - Yes
Formats Support For Image JPG, JPEG, BMP, PNG
Formats Support For Video
MPEG1, MPEG2, MPEG4,
SorensonH.263, H.263, H.264,
MVC, AVS, AVS+, WMV3, VC1,
Motion JPEG, VP8, VP9, RV30/
RV40
Formats Support For Audio
MPEG1/2ER1; @LAYER2;
@LAYER3, EAC3, ACC-LC, HEAAC,
VORBIS, LPCM, IMA-ADPCM,
MS-ADPCM, G711 A/MU-LAW,
LBR (COOK), FLAC
Camera Slot 1
Wi-Fi 6 + Bluetooth 5.2 Module Integrated (Replaceable)

EXTRA FIRMWARE FEATURES
Multiuser profile - Yes
Embedded Google Apps - Yes

DIMENSIONS / WEIGHT
Outline Dimensions*
(Excl. wall mount)
65": 1513 x 927 x 118 mm
Net Weight
65": 39 Kg
VESA*
65": 600 x 400 mm
