ASRock PG-1000G Phantom Gaming Power Supply Unit, High Efficiency ATX 1000W PSU

ASRock Phantom Gaming PG1000G Power Supply Unit

POWERFUL FUTURE BE READY FOR ATX 3.1 & PCIe 5.1
The ASRock Phantom Gaming series power supply supports both current and future standards, fully compliant with ATX12V V3.1 and PCIe Gen 5.1. Ideal for both current systems and future builds, this power supplies can handle up to 220% power excursion and respond swiftly to power spikes, ensuring reliable, safe power for your components.

Native PCIe 12V-2x6 Cable

Dual Color Design
With ASRock Classic Green connectors, users can easily see if the connector has been plugged properly.

Cable Over-Temperature Protection
The NTC sensor at the VGA connector monitors the temperature and sends signal the PSU to ensure safe operation.

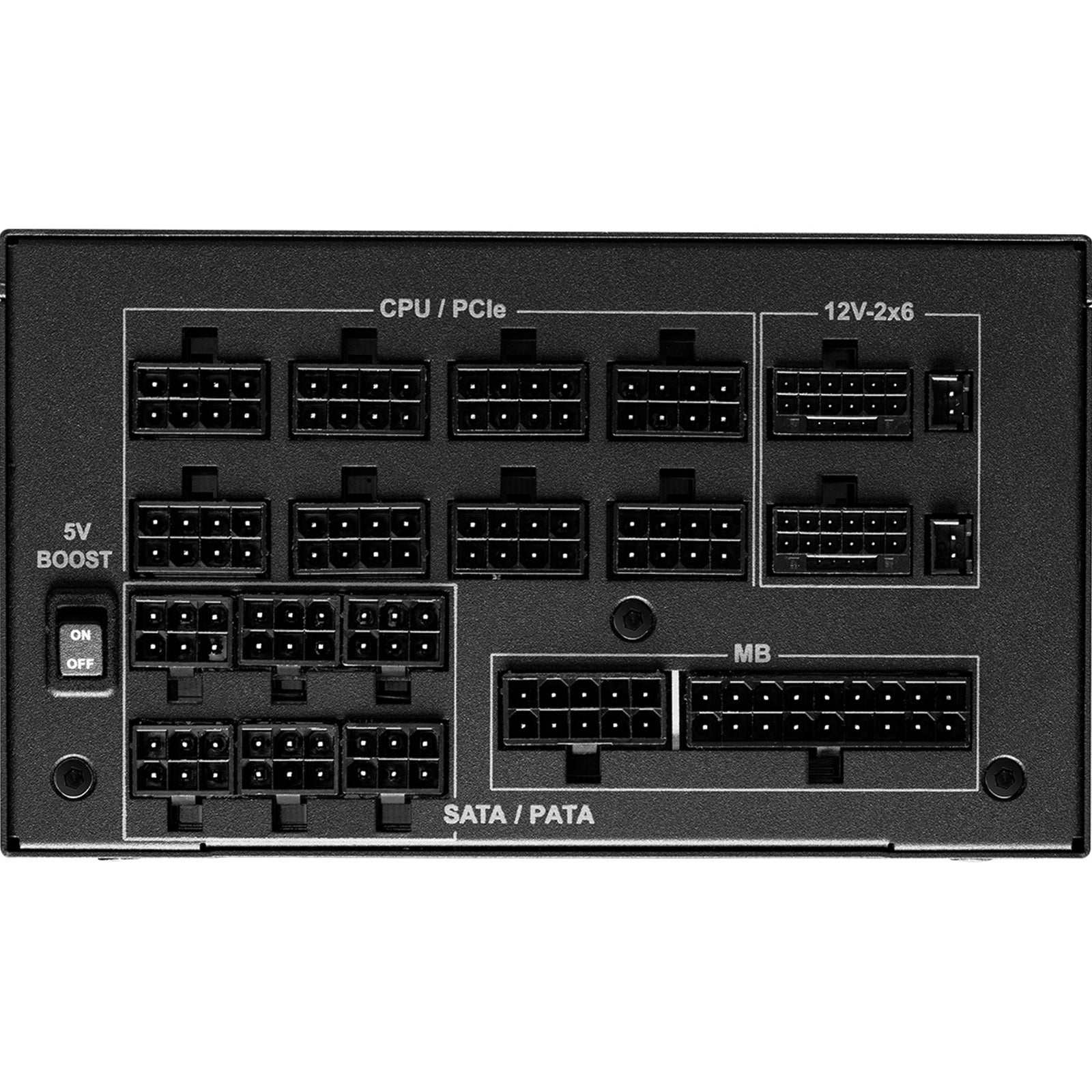

+5V BOOST Mode Voltage Compensation Mechanism
When this switch is enabled, it boosts the +5V voltage to maintain optimal performance.
If no voltage drop occurs, the PSU will regulate the +5V rail to approximately +5.15V, ensuring consistent power delivery.

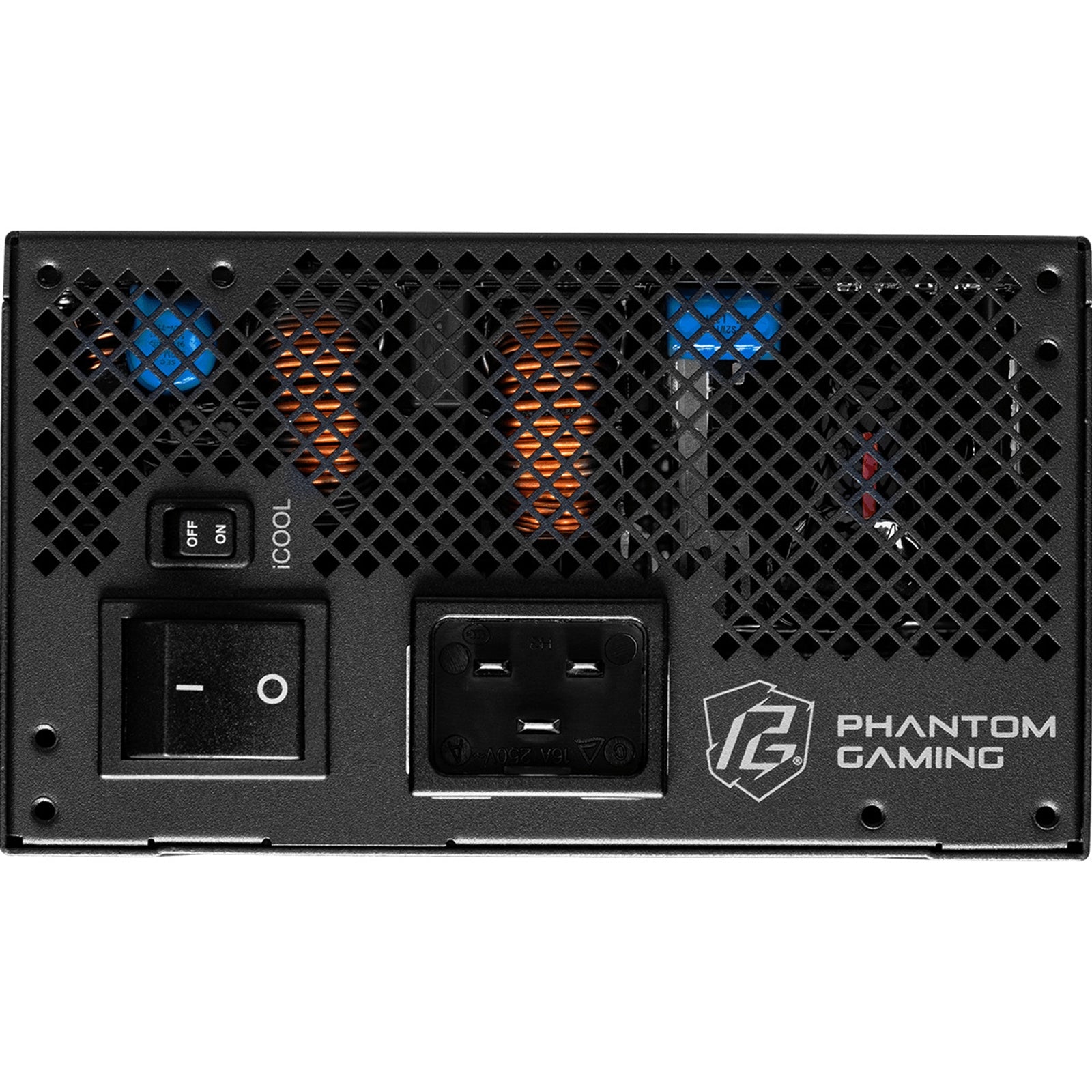

iCOOL Intelligent Fan Control Mode
iCOOL Mode ON: The power supply runs more efficiently. The fan stays off during low to medium loads, reducing noise and improving energy efficiency. The fan only activates when the load or temperature increases.
iCOOL Mode OFF: The fan runs continuously, regardless of load. This may increase noise slightly but provides consistent cooling and better performance under heavy loads.

80 PLUS & CYBENETICS CERTIFIED
Designed for gaming enthusiasts, the Phantom Gaming series power supply unit with 80 PLUS Gold efficiency certification and Cybenetics Platinum & Gold ratings, along with LAMBDA A acoustic certification, it guarantees superior energy efficiency and low noise operation.
*The Cybenetics certification on the packaging has been updated. Some earlier units may not show the badge. For the latest certification details, please visit the official Cybenetics website. Product specifications and performance remain unchanged.

CYBENETICS LAMBDA A
The Phantom Gaming series power earning the prestigious Cybenetics Lambda A certification. This recognition underscores the Phantom Gaming series' outstanding noise control performance, making it an exceptional choice for users seeking ultra-quiet operation.
The Cybenetics certification on the packaging has been updated. Some earlier units may not show the badge. For the latest certification details, please visit the official Cybenetics website. Product specifications and performance remain unchanged.

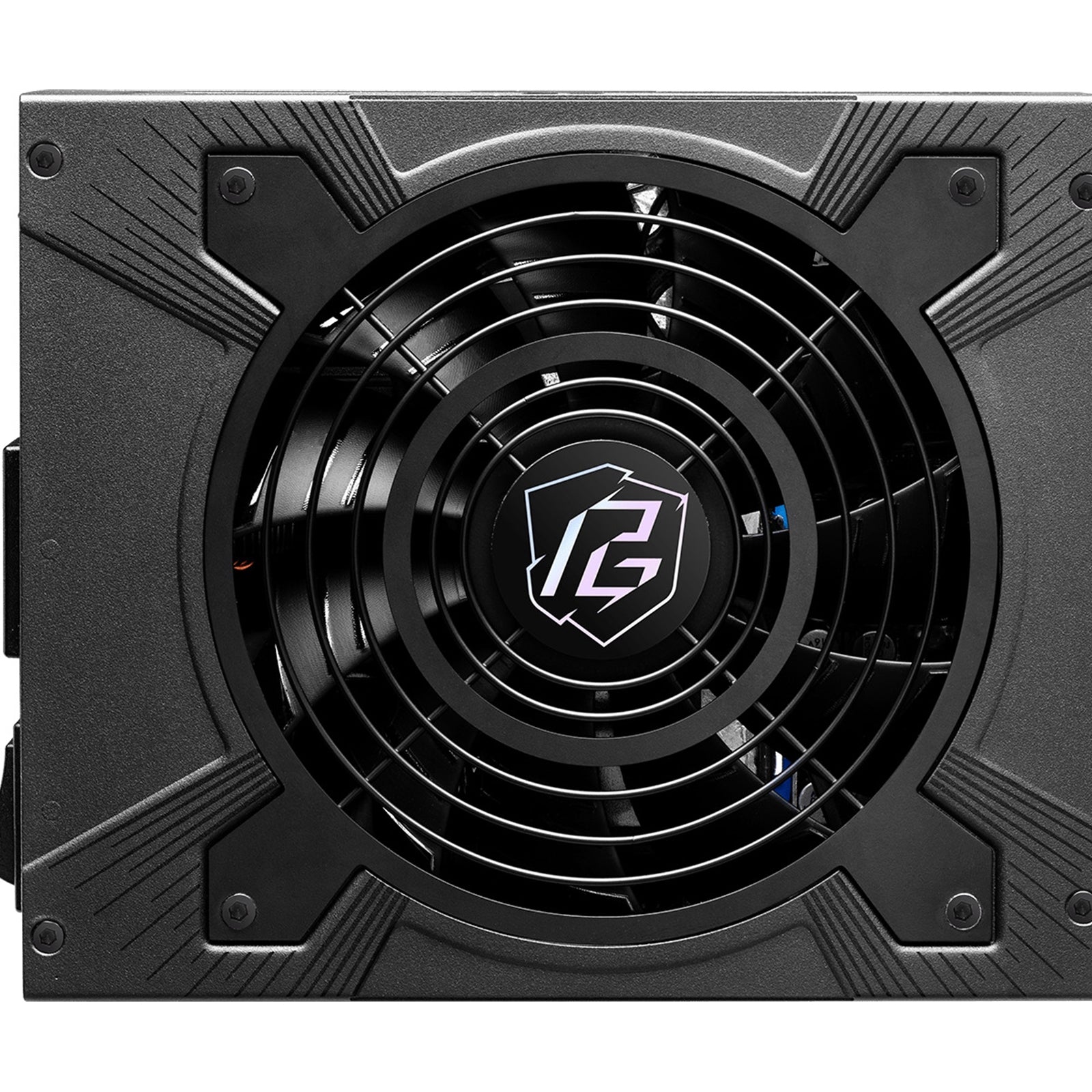

135mm Fluid Dynamic Bearing Fan
The fluid seal design and the herringbone structure provides an extremely long lifespan and noise minimization.

Infineon CoolMOS
The industrial-leading components deliver high efficiency and reliability.

Japanese Capacitors
105 °C Japanese-made Capacitor and Solid Capacitor, makes prolonged life span possible.

Safety First with ASRock
Full suite of protections to keep all components safe during normal to extreme power levels.
ASRock offers an outstanding 10 –Year warranty, guaranteeing long term reliable and peace of mind operation.

Specifications

80 Plus Efficiency
GOLD

Cybenetics (ETA/LAMBDA)
PLATINUM / A

ATX 12V Version
ATX 3.1

AC Input
115-240V~, 50-60Hz, 15-8A
100-240V~, 50-60Hz,15-8A

Continuous 12V output
133.3 A

Warranty (Years)
10

Dimensions(L x W x H)
180mm x 150mm x 86mm

Fan
135mm Striped Axial FDB Fan

iCOOL MODE
Yes (Switch)

Protections
OCP, SCP, OVP, UVP, OTP, OPP

Capacitors
All Japanese

5V BOOST
Yes (Switch)

PCIe 5.1 Cable TempGuard
Yes

Total Power Excursion
220%

MTBF (Hours)@25°C
100,000

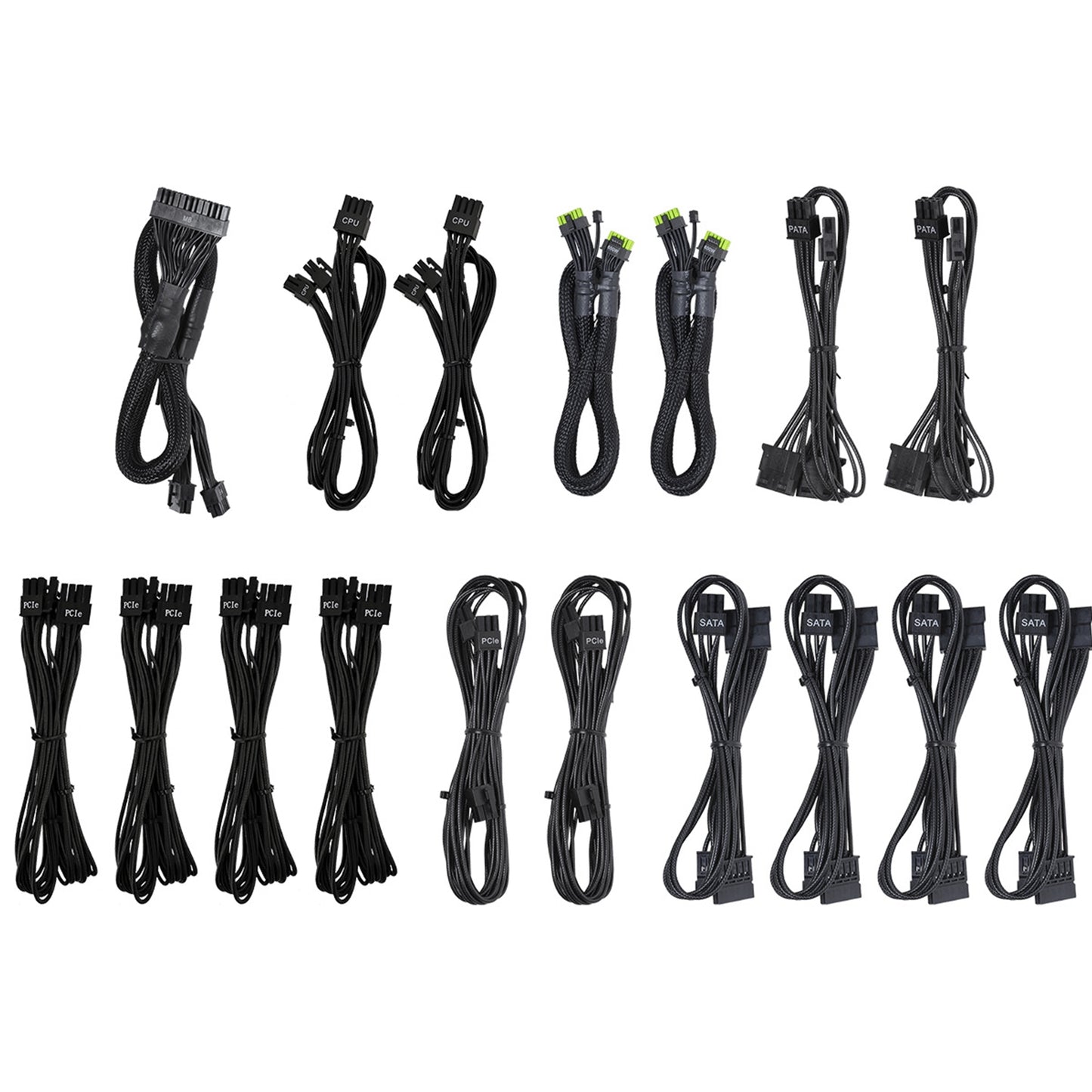

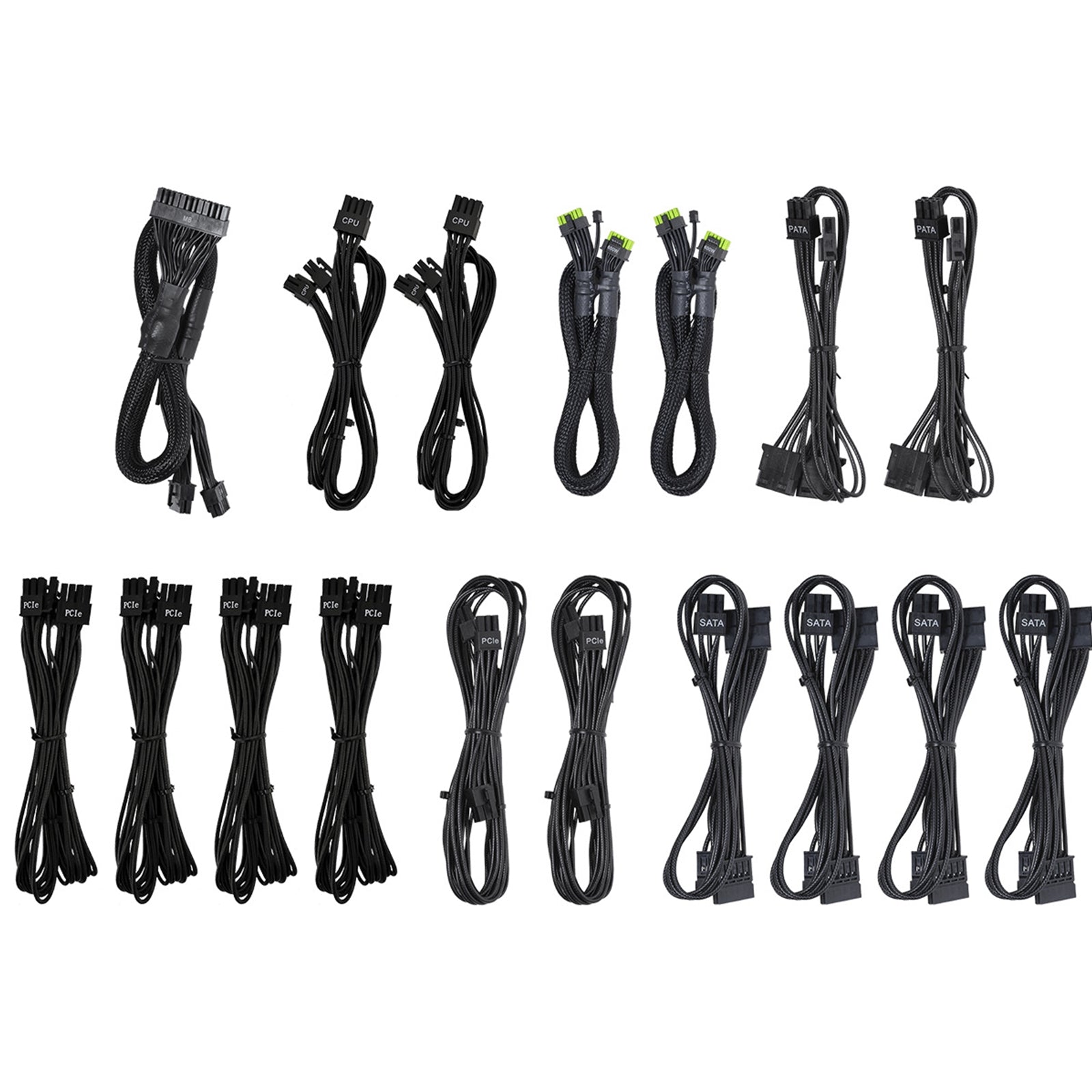

Cable Type
24pin & 12+4pin: Sleeved
Others: Individual Braided Pattern

Motherboard cable (24pin)
1

EPS 12V CPU connectors (4+4pin)
2

PCIe5.1 connectors(12+4pin) Dual Color
2

PCIe connectors (6+2pin)
8

4-pin Peripheral connectors
6

SATA 5-pin connectors
12
