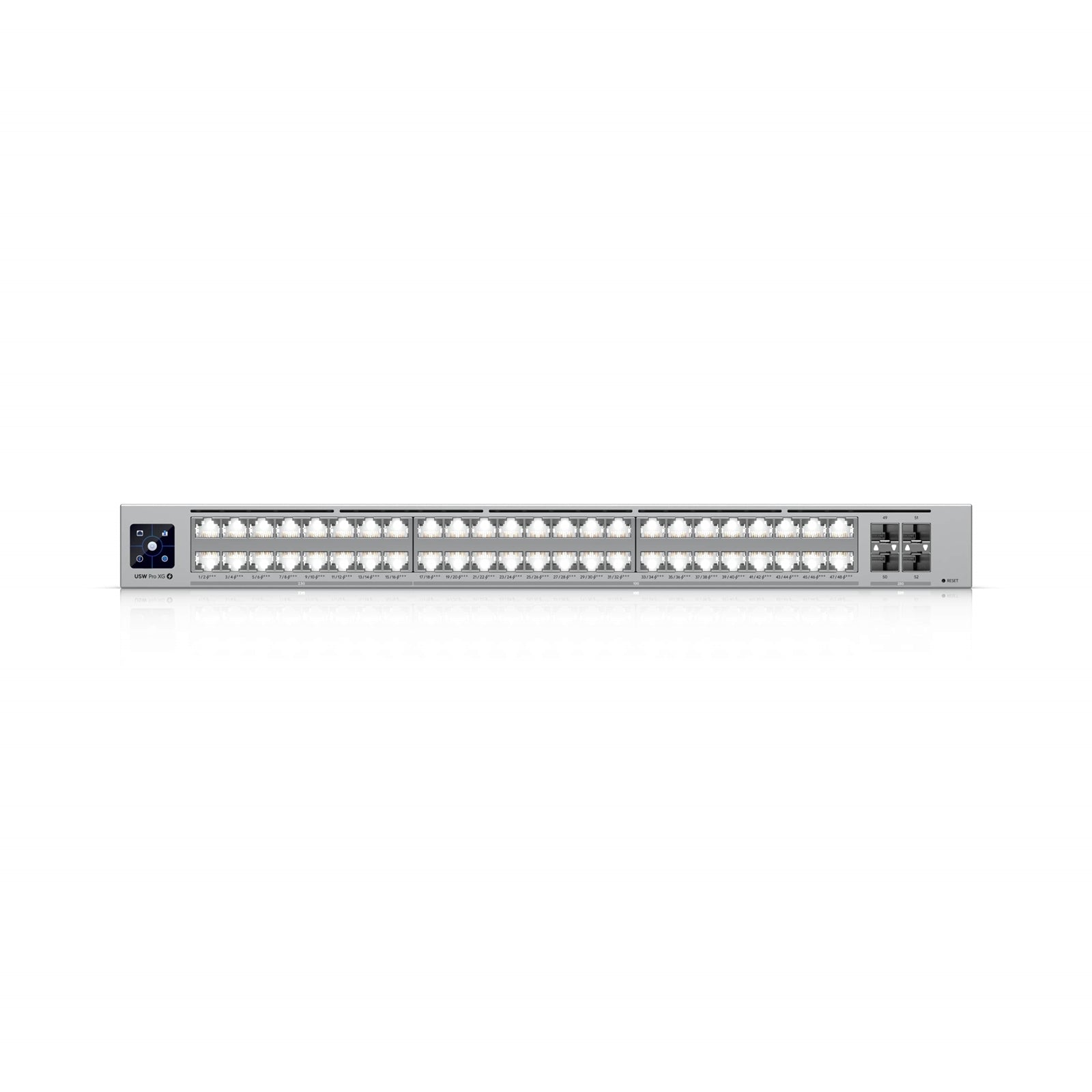

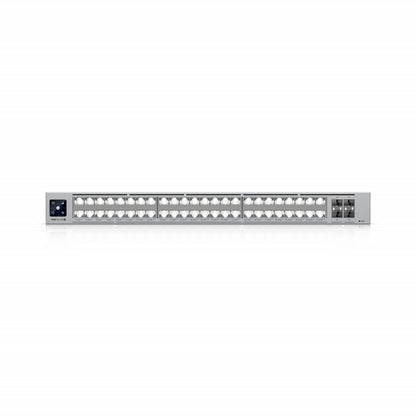

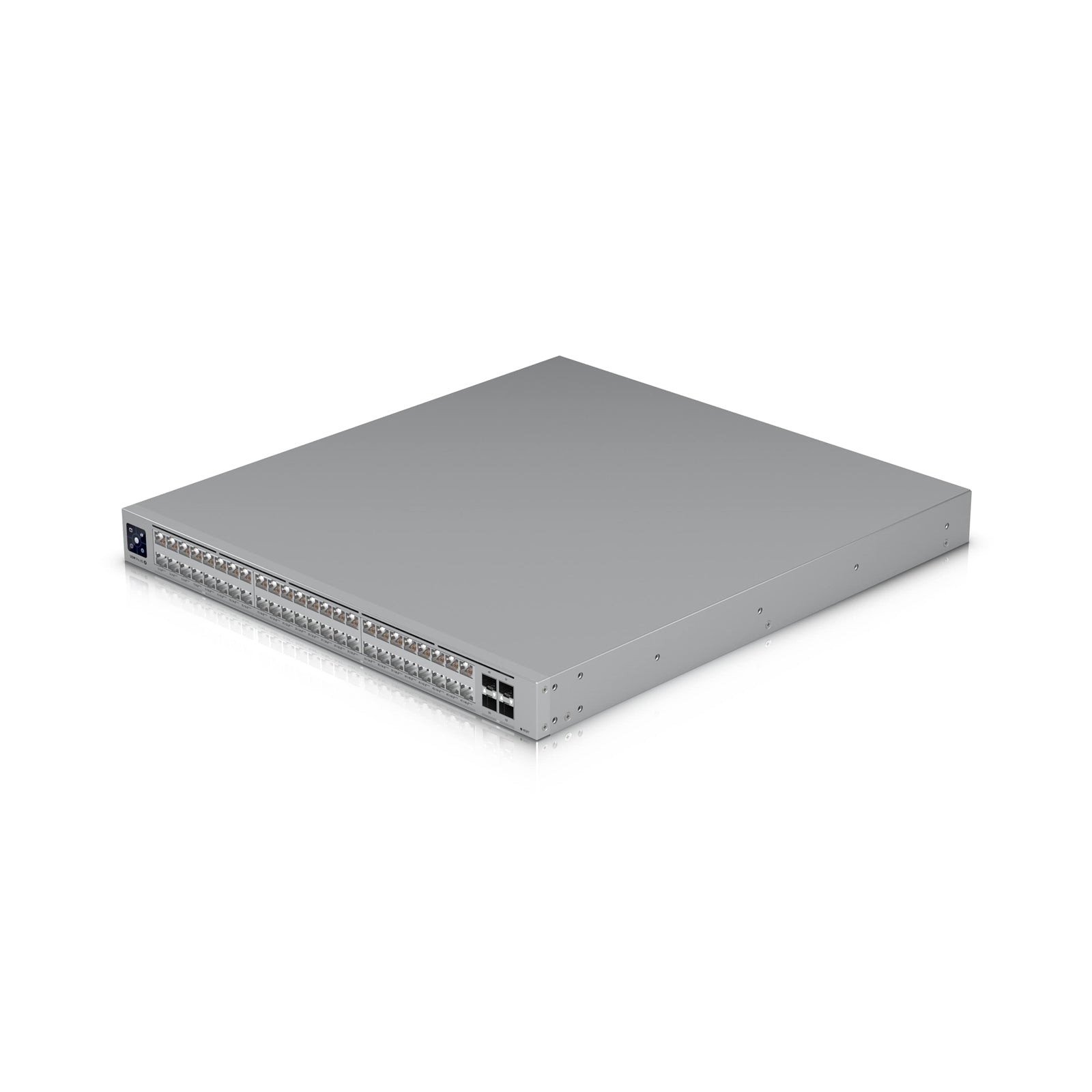

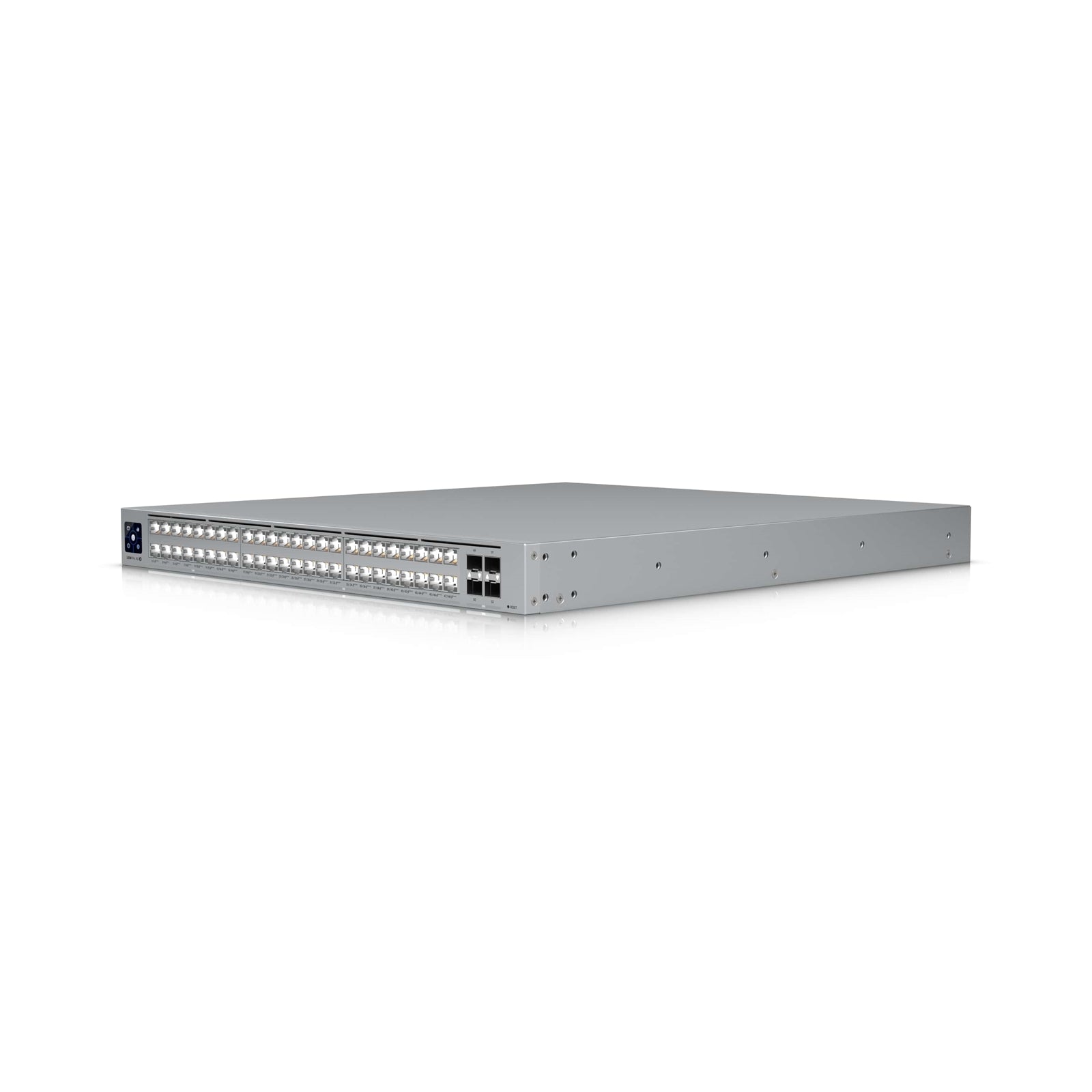

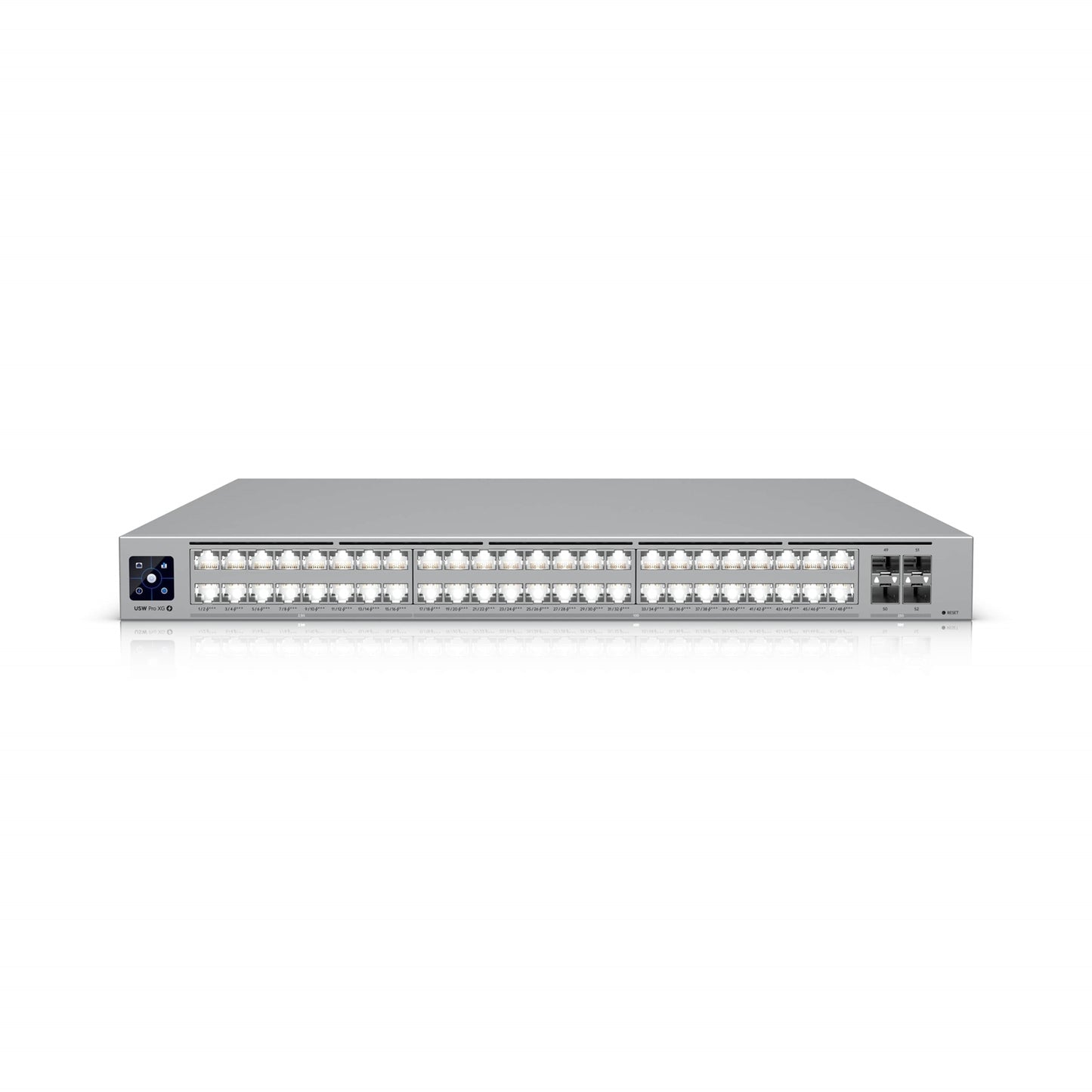

Ubiquiti (USW-Pro-XG-48) Professional-grade 48-port Layer 3 Etherlighting Switch

Ubiquiti Pro XG 48 Switich

Professional-grade, 48-port Layer 3 Etherlightin switch with (32) 10 GbE, (16) 2.5 GbE, and (4) 25G SFP28 ports.

Specifications

Overview

Dimensions
442 x 480 x 44 mm
(17.4 x 18.9 x 1.7")

Port Layout
2.5 GbE RJ45 - 16 (2.5G/1G/100M/10M)
10 GbE RJ45 - 32 (10G/5G/2.5G/1G/100M/10M)
25G SFP28 - 4 (25G/10G/1G)

Redundancy
DC Power Backup

Layer 3
Yes

Form Factor
Rack mount (1U)

Etherlighting
Yes

Performance

Switching Capacity
920 Gbps

Total Non-Blocking Throughput
460 Gbps

Forwarding Rate
684 Mpps

Supported VLANs
1,000

MAC Address Table Size
128,000

L3 Table Size
ARP Entries -128,000
IPv4 Routes - 256,000

Packet Buffer Size
8 MB

Access Lists
IPv4
256
MAC
256

Layer 3 Features

DHCP Server (Local Networks) - Yes
DHCP Relay - Yes
Inter-VLAN Routing (Local Networks) - Yes
Static Routing (Local Networks) - Yes

Layer 2 Features
LACP Port Aggregation - Yes
STP & RSTP - Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port) - Yes
IGMP Snooping - Yes
802.1X Control - Yes
MAC-Based ACLs & Device Isolation - Yes
DHCP Snooping & Guarding - Yes
Egress Rate Limit - Yes
Flow Control - Yes
Storm Control - Yes
Multicast & Broadcast Rate Limiting - Yes
MAC Address Blocking - Yes
IP-Based ACLs & Network Isolation - Yes
MAC-Based Port Restriction - Yes
Port Isolation - Yes
Port Mirroring - Yes
Jumbo Frames - Yes
LLDP-MED - Yes
Voice VLAN - Yes
Loop Protection - Yes

Hardware

Max. Power Consumption
250W

Power Method
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input

Power Input Method
AC input

Power Supply
AC/DC, internal, 300W

Supported Voltage Range
100—240V AC

Management
Ethernet
AR

Weight
Without mounting brackets: 7.5 kg (16.5 lb)
With mounting brackets: 7.6 kg (16.8 lb)

Enclosure Material
SGCC steel

Mount Material
SGCC steel

Supported Rack Depth
482.6 mm (19") four-post racks
Posts depths ranging from 600 to 1,066 mm (23.6-42”)

LCM Display
1.3" touchscreen

ESD Protection
Air: ± 30kV, contact: ± 14kV

Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing

LEDs
RPS - Yes
NDAA Compliant - Yes

Certifications
CE, FCC, IC

Software

Application Requirements
UniFi Network
Version 9.0.114 and later
