Ubiquiti UniFi Protect UNVR-KIT Compact NVR Kit with 1 x UniFi Protect NVR

Ubiquiti Network Video Recorder Instant Kit

Compact UniFi Protect NVR Kit, includes (1) UniFi Protect NVR Instant with (4) G5 Turret Ultra cameras and (1) 1TB HDD, delivering an all-in-one solution for fast and effortless setup.

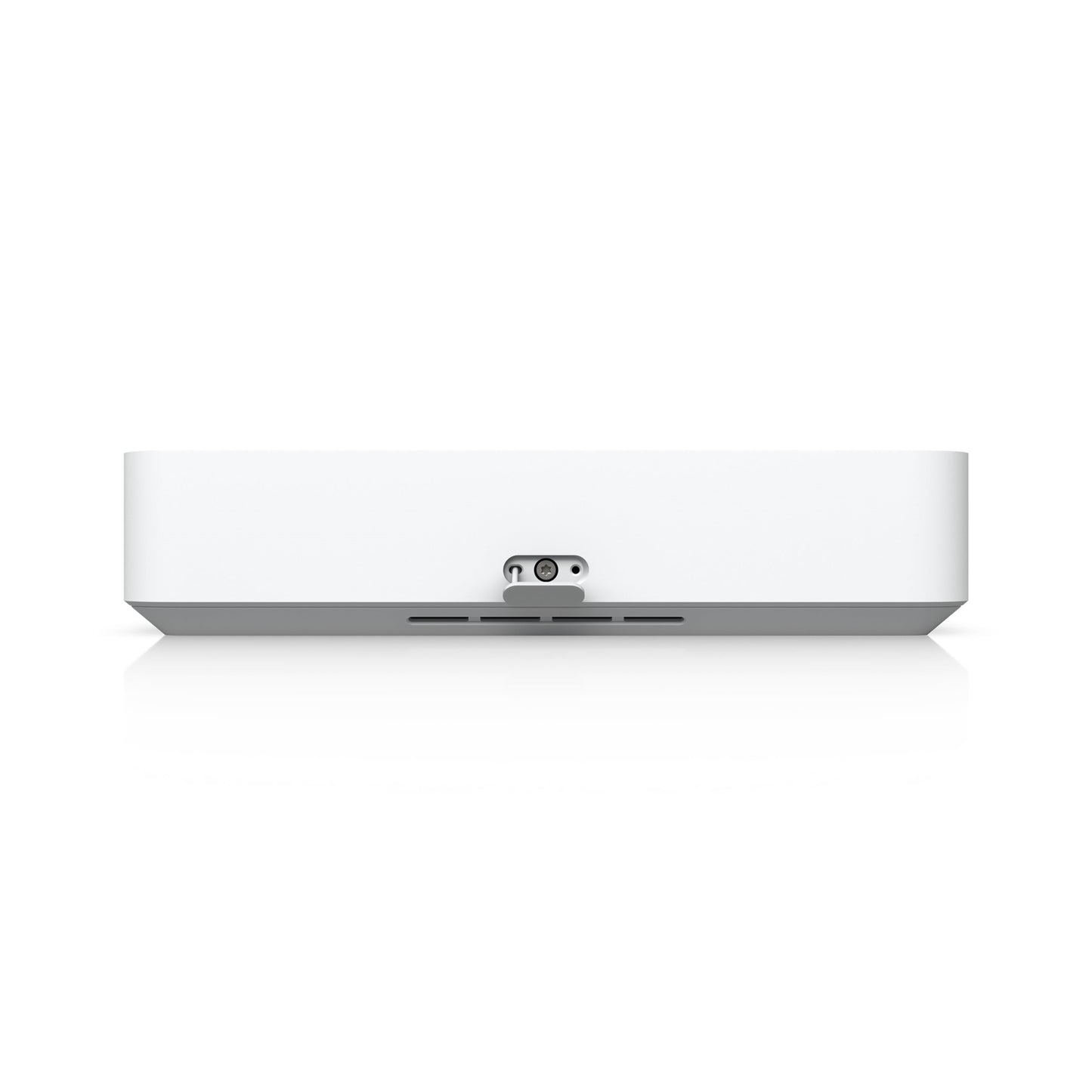

Network Video Recorder Instant

Dimensions
220 x 220 x 47 mm
(8.7 x 8.7 x 1.9")

UniFi Application Suite
Protect - Yes
Access - Yes

Managed Cameras
(15) HD
(8) 2K
(6) 4K

Storage Capacity
(1) 3.5" drive bay

Data Protection
Yes

Vantage Point
Yes

Networking Interface
(1) GbE RJ45 uplink port
(6) GbE PoE RJ45 downlink ports
(1) HDMI port (Viewport)

Form Factor
Compact Desktop

Mounting
Wall, Din rail mount (Included)

Door Access Support
Yes

Hard Drive Capacity
(1) 3.5" HDD support

Max. Power Budget for Drives
11W

Max. Power Consumption
9W

Power Method
Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz

Power Supply
AC/DC, Internal, 60W

PoE Budget
40W
Max. PoE Wattage per Port by PSE
PoE
15.4W
Voltage Range PoE Mode
44–57V

Processor
Quad-core ARM Cortex-A55 at 1.7 GHz

Memory
4 GB

Management
Ethernet
Bluetooth

Display
1.14" screen

Weight
1.04 kg (2.3 lb)

Enclosure Materials
Polycarbonate
Mount Material
Polycarbonate

LEDs
Ethernet - Yes
PoE - Yes

Ambient Operating Temperature
0 to 40° C (32 to 104° F)

Ambient Operating Humidity
5 to 95% noncondensing

NDAA Compliant
Yes

Certifications
FCC, IC, CE, Electrical Safety, UL

G5 Turret Ultra

Dimensions
90 x 71.2 mm
(3.5 x 2.8")

IR Night Vision
30 m (98 ft)

Smart Detections (People, Vehicles, Animals)
Yes

Resolution
2K

Field of View
H: 102.4°, V: 54.9°, D: 120.6°

Audio
Microphone

Weatherproofing
IP66

Tamper Resistance
IK04

Mounting
Wall, ceiling mount (Included)
Junction box, arm mount (Optional)

Networking Interface
10/100 MbE RJ45 port

Video

Image Settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay

Max. Frame Rate
30 FPS

Resolution
4MP 2688 x 1512 (16:9)

Optics

Sensor
1/2.4" CMOS

Lens
Fixed focal length

Night Mode
Built-in IR LED illumination and IR cut filter

Max. Power Consumption
4W

Supported Voltage Range
37—57V DC

Power Method
PoE

Processor
Dual-core Arm Cortex-A7 based chip

Weight
330 g (11.6 oz)

Enclosure Material
Aluminum alloy, UV-stabilized polycarbonate

Mount Material
Polycarbonate

Button
(1) Factory-reset

Cable

Cable Connector Type
RJ45

Cable Diameter
5 mm (0.2")

Cable Length
30 cm (1 ft)

Jacket Material
Polycarbonate

Jacket Enclosure Dimensions
20 x 70.6 mm (0.8 x 2.8")

Jacket Enclosure Material
Thermoplastic elastomer, polycarbonate, silicone rubber

Ambient Operating Temperature
-30 to 50° C (-22 to 122° F)

Ambient Operating Humidity
0 to 90% noncondensing

NDAA Compliant
Yes

Certifications
CE, FCC, IC

HDD

Dimensions
147 x 101.6 x 26.1 mm (5.75 x 4 x 1")

Hard Disk Form Factor
3.5-inch

Weight
0.45 kg (0.99 lb)

Storage Capacity
1 TB

Power Method
5V/12V input

Management Interface
SATA 6 Gb/s

Rotation Speed
5400 RPM

Workload Rating
180 TB/year

Mean Time Between Failure (MTBF)
1,000,000 h

Ambient Operating Temperature
0 to 65° C (32 to 149° F)

Ambient Operating Humidity
5 to 95% noncondensing

NDAA Compliant
Yes

Certifications
FCC, CE, UL, TUV, RCM, KC, BSMI
