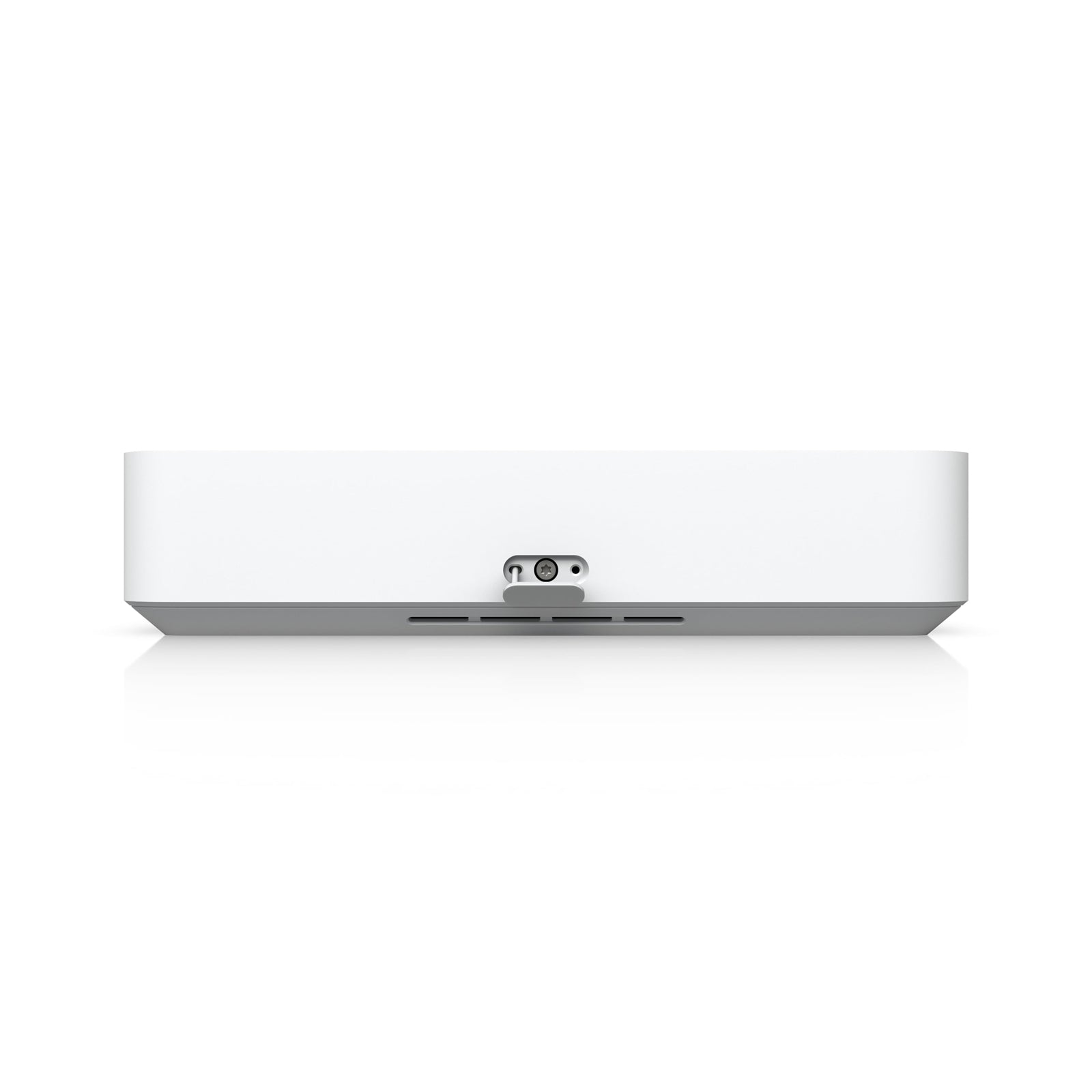

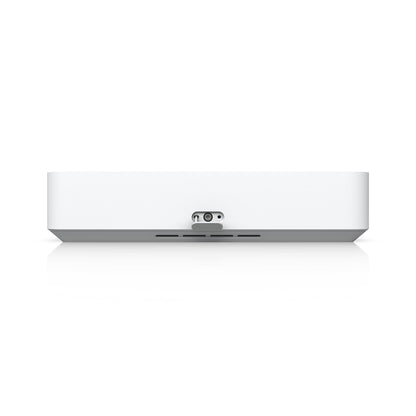

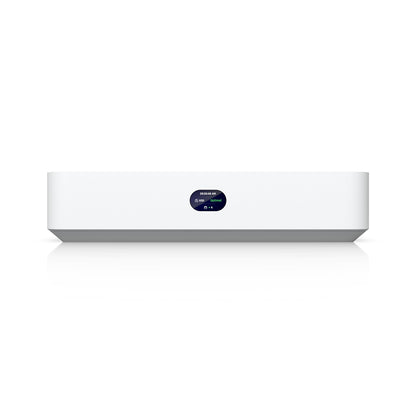

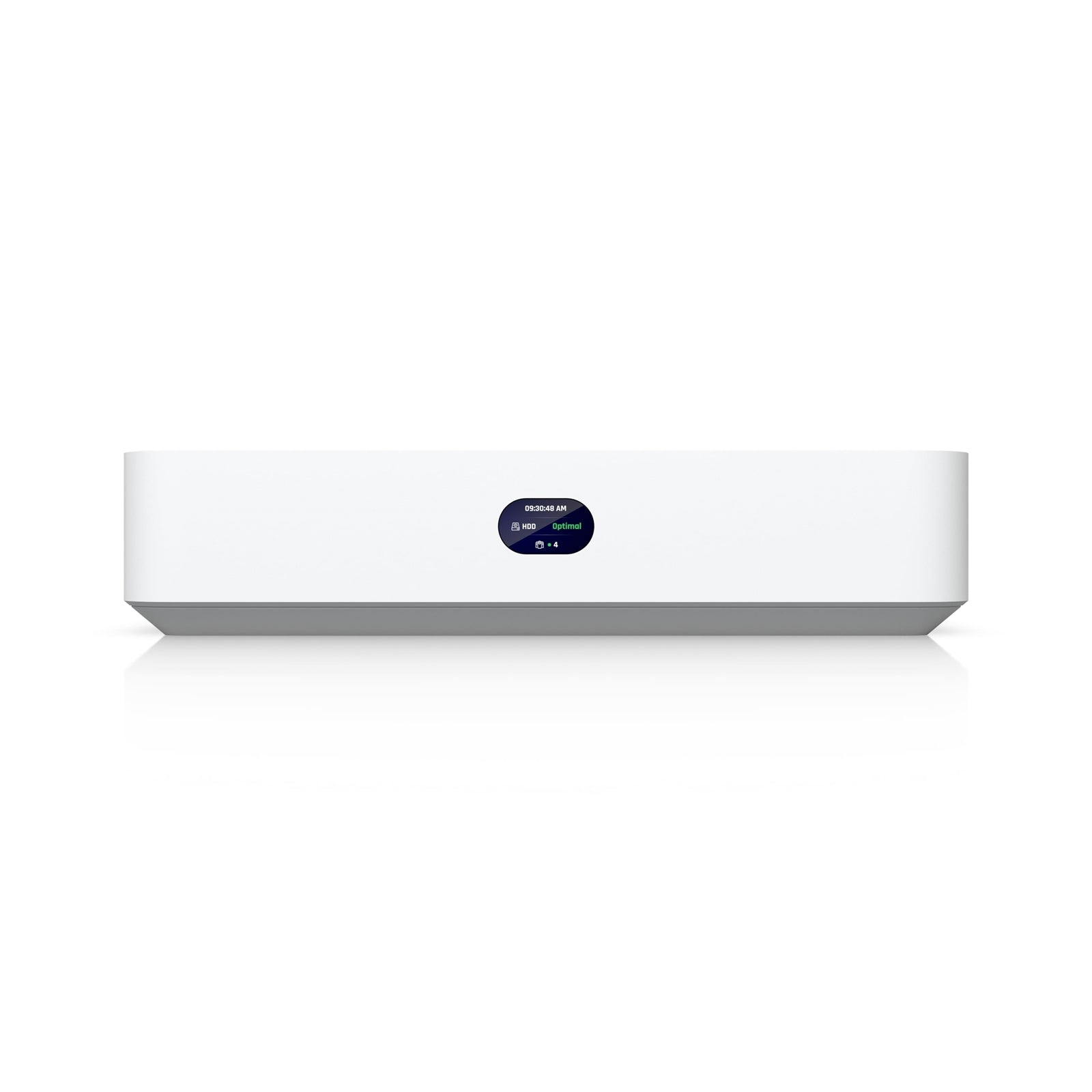

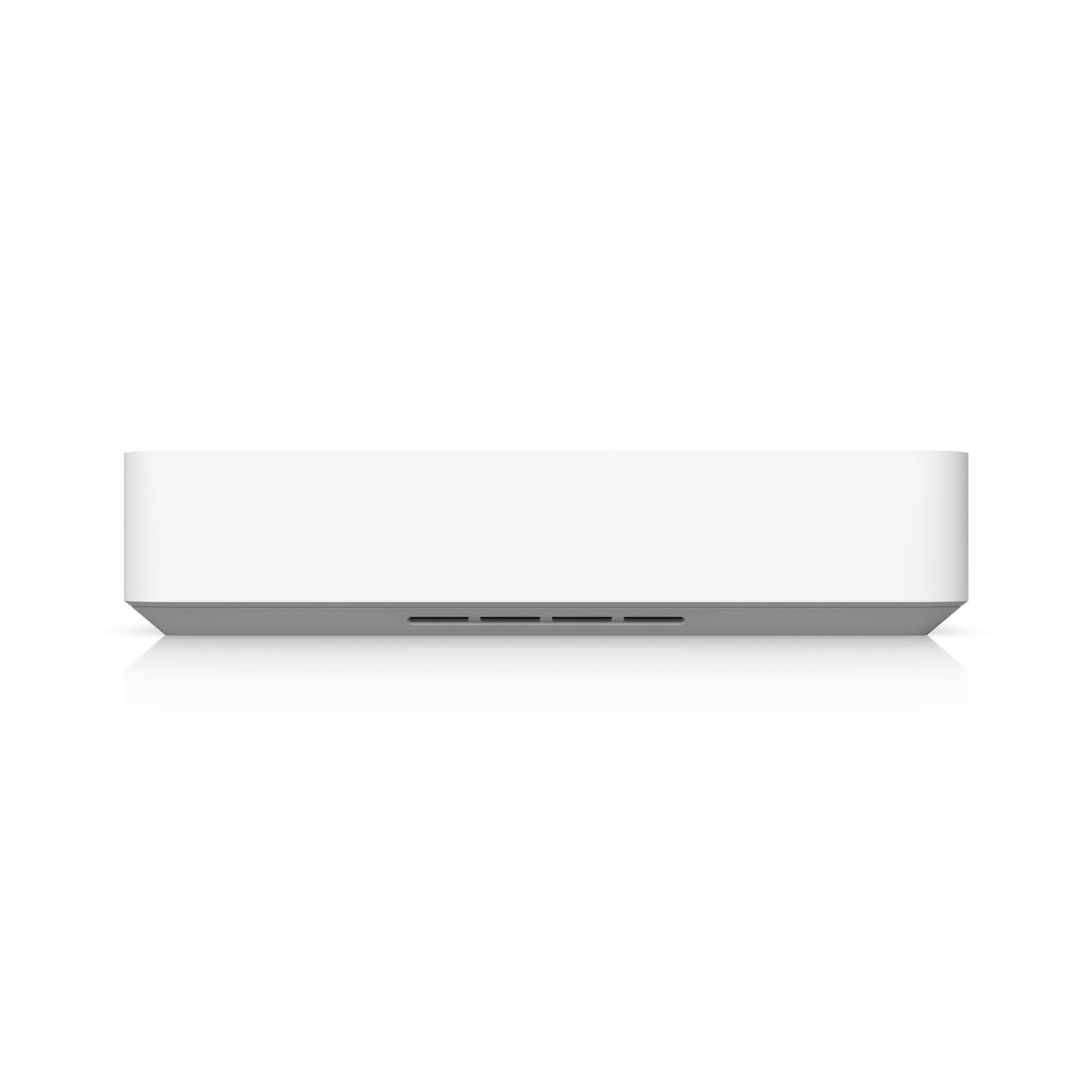

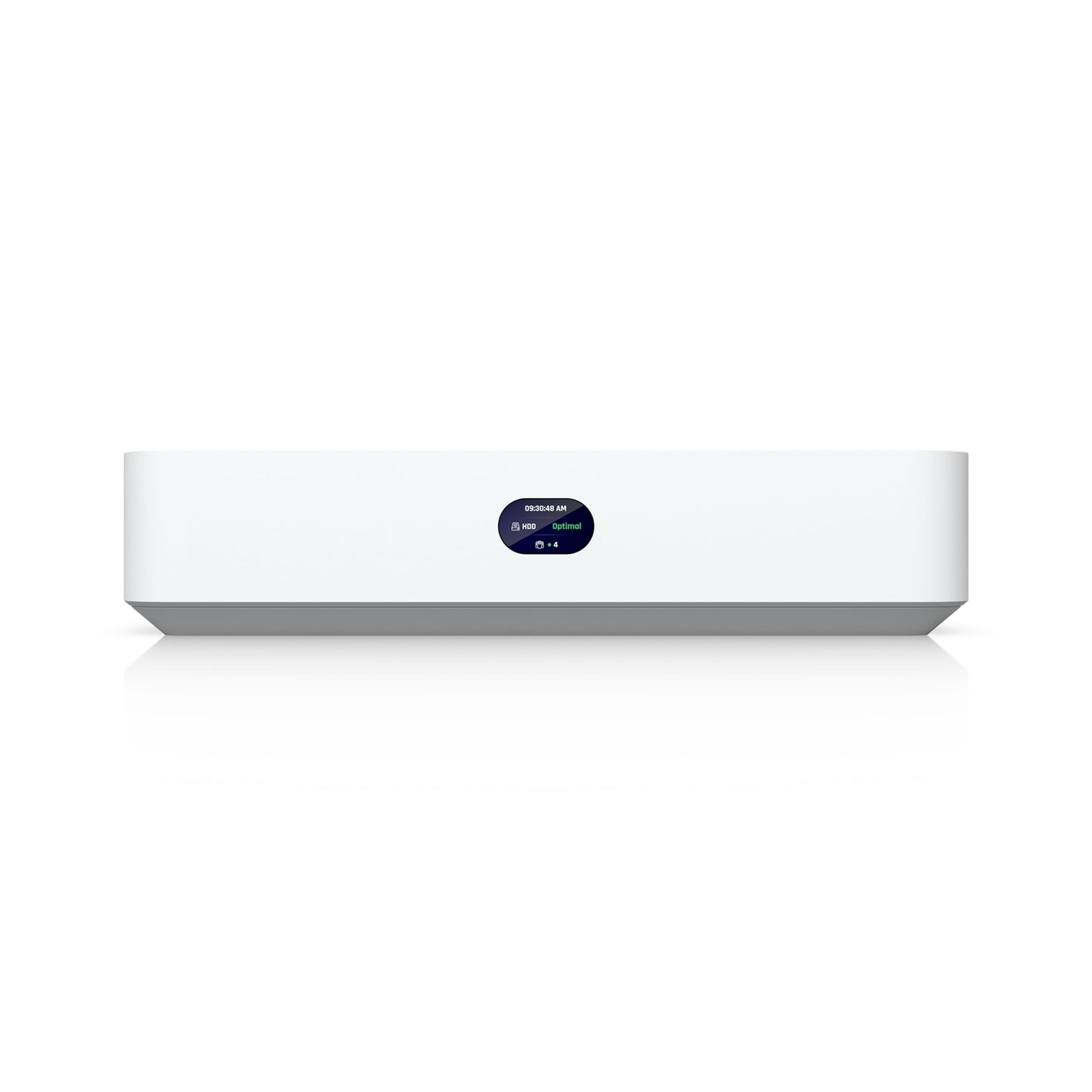

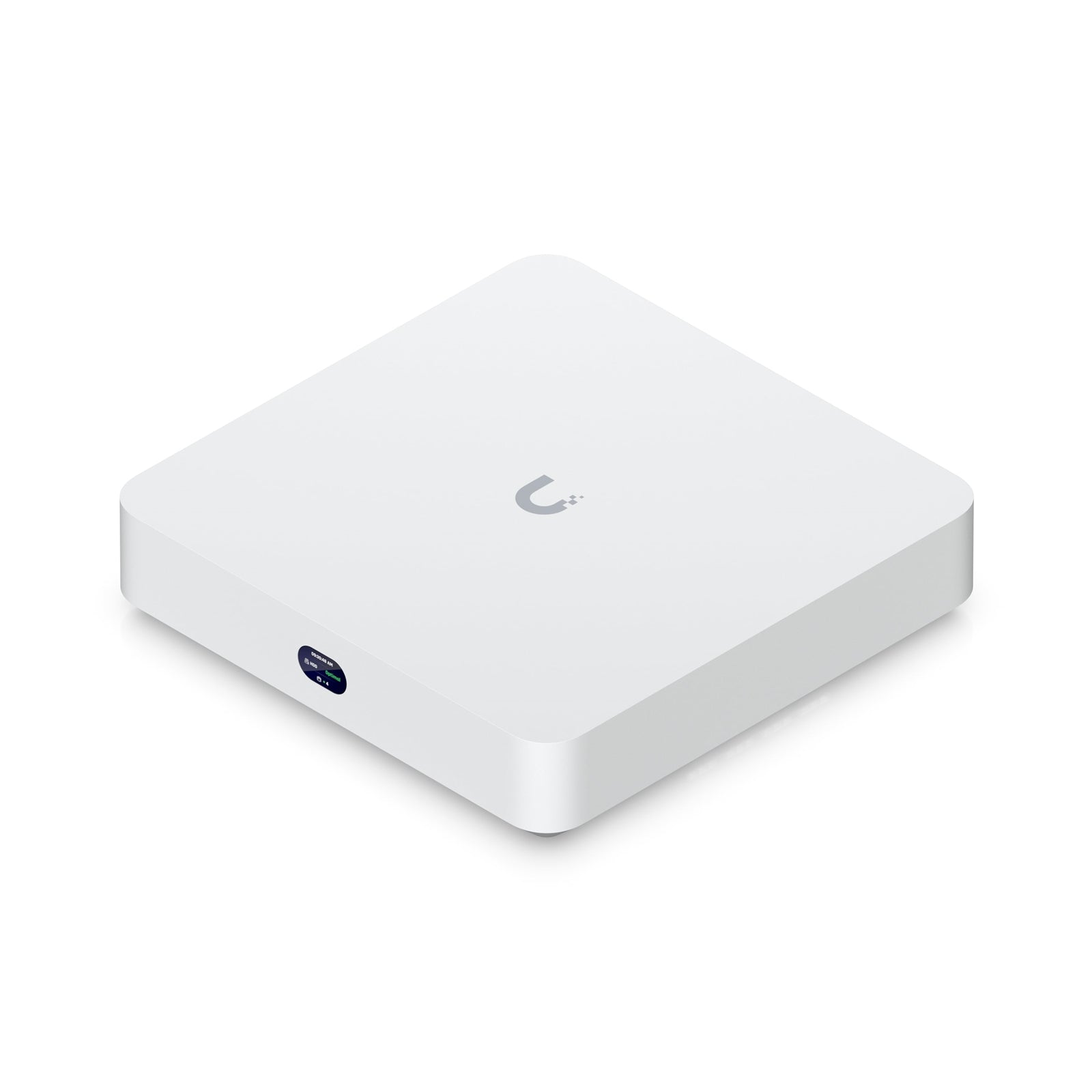

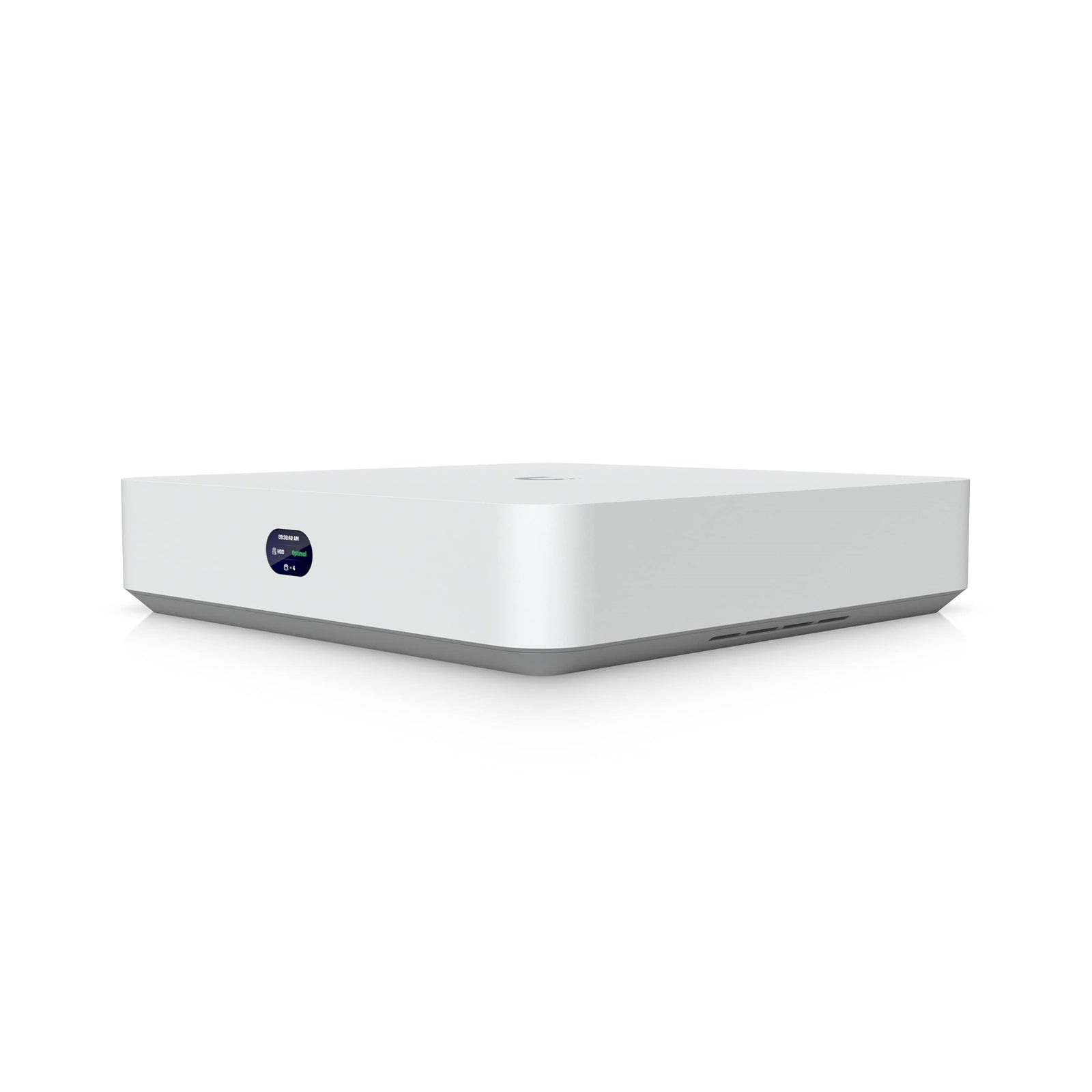

Ubiquiti UniFi Network Video Recorder Instant, Compact UniFi Protect NVR

Ubiquiti Network Video Recorder Instant

Speficiations

Dimensions
220 x 220 x 47 mm
(8.7 x 8.7 x 1.9")

UniFi Application Suite
Protect - Yes
Access - Yes

Managed Cameras
(15) HD
(8) 2K
(6) 4K

Managed Access Hubs
50
Storage Capacity
(1) 3.5" drive bay

Data Protection
Yes

Vantage Point
yes

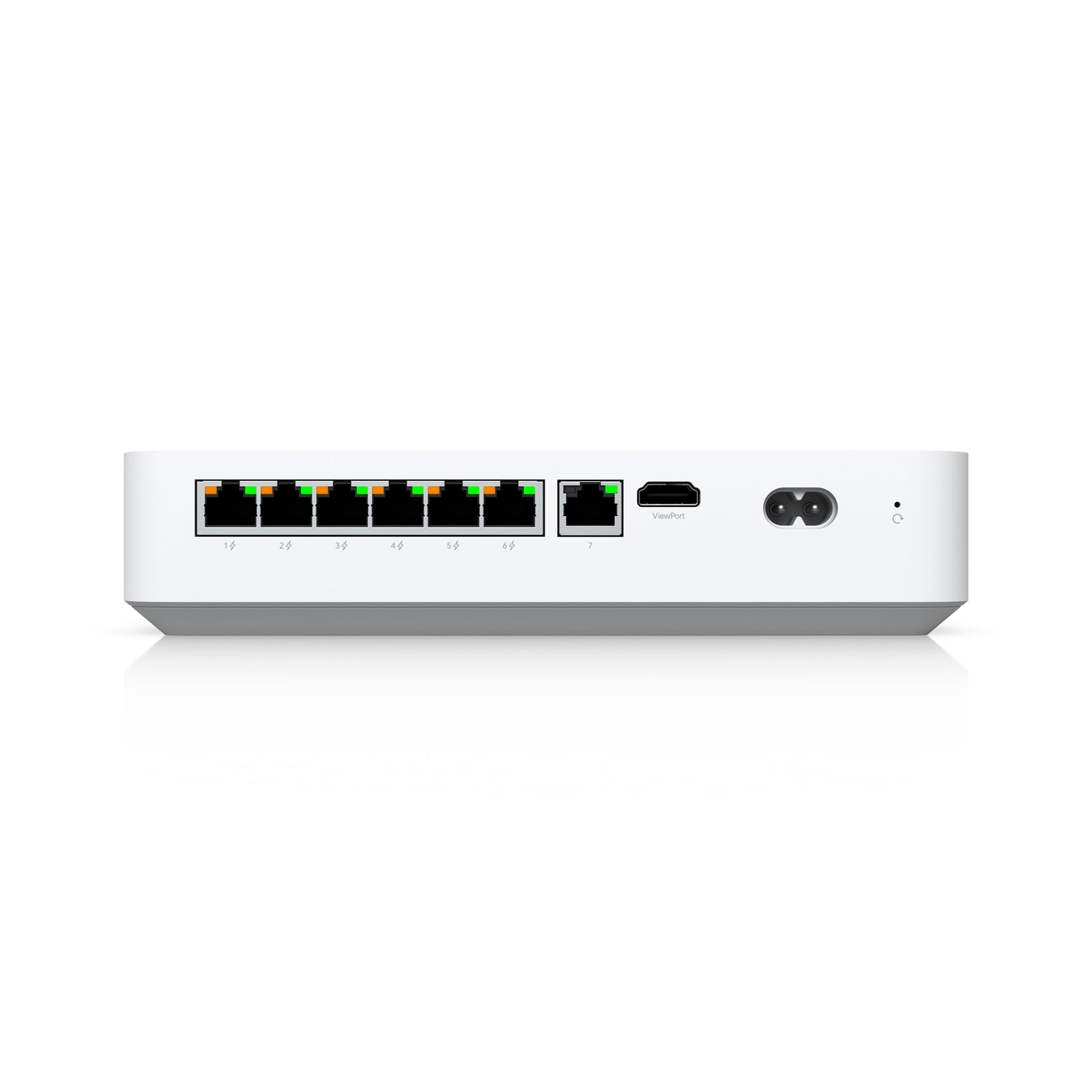

Networking Interface
(1) GbE RJ45 uplink port
(6) GbE PoE RJ45 downlink ports
(1) HDMI port (Viewport)

Form Factor
Compact Desktop

Mounting
Wall, Din rail mount (Included)

Door Access Support
Yes

Hardware

Hard Drive Capacity
(1) 3.5" HDD support

Max. Power Budget for Drives
11W

Max. Power Consumption
9W

Power Method
Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz

Power Supply
AC/DC, Internal, 60W

PoE Budget
40W
Max. PoE Wattage per Port by PSE
PoE
15.4W

Voltage Range PoE Mode
44–57V

Processor
Quad-core ARM Cortex-A55 at 1.7 GHz

Memory
4 GB

Management
Ethernet
Bluetooth

Display
1.14" screen

Weight
1.04 kg (2.3 lb)

Enclosure Material
Polycarbonate

Mount Material
Polycarbonate

LEDs
Ethernet - Yes
PoE - Yes

Ambient Operating Temperature
0 to 40C (32 to 104F)

Ambient Operating Humidity
5 to 95% noncondensing

NDAA Compliant
Yes

Certifications
FCC, IC, CE, Electrical Safety
