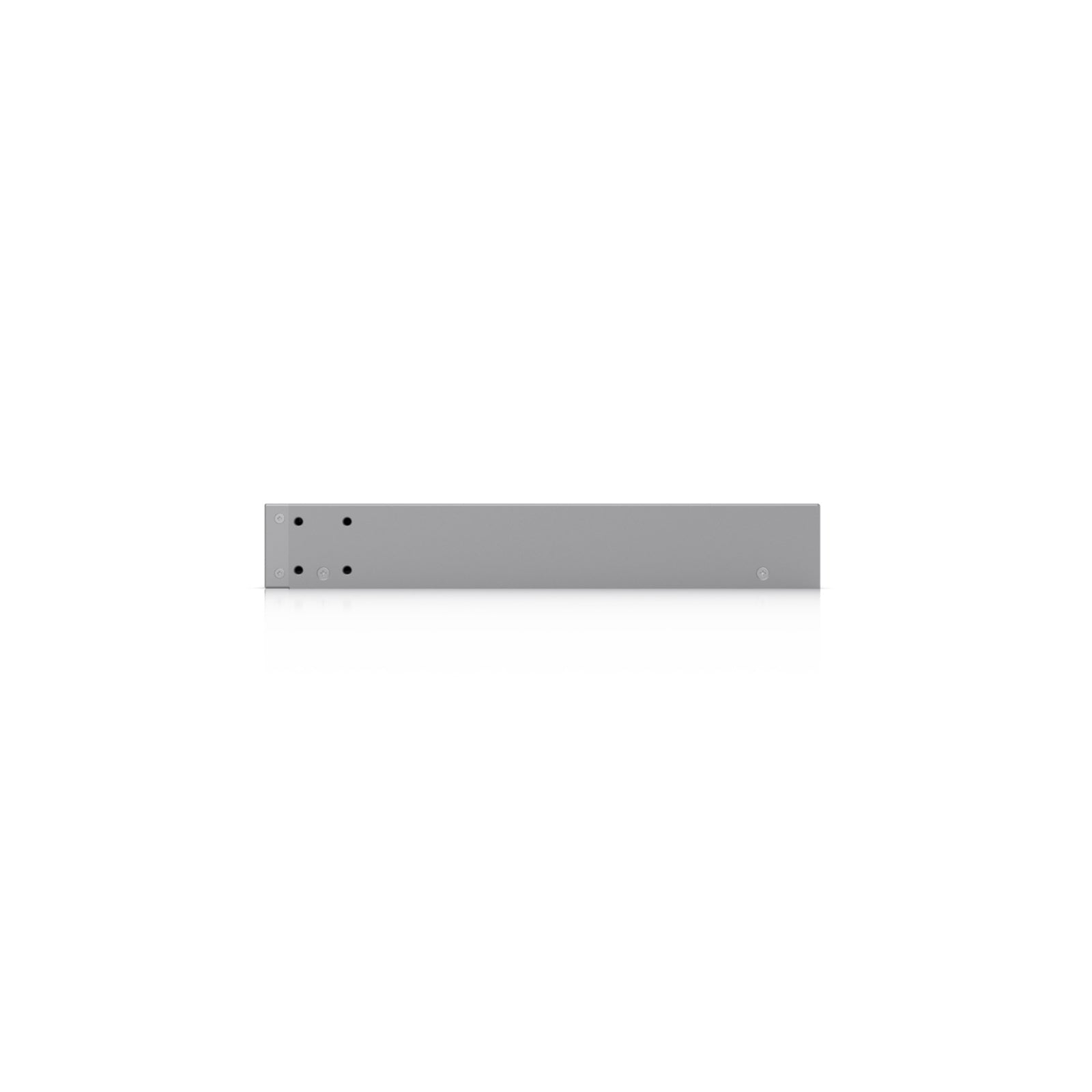

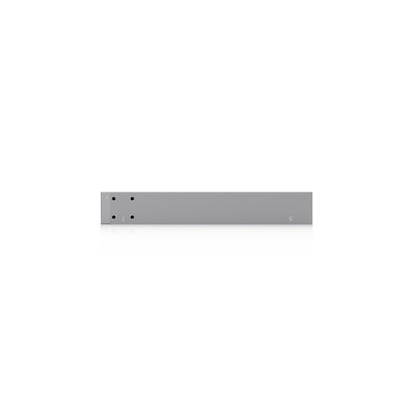

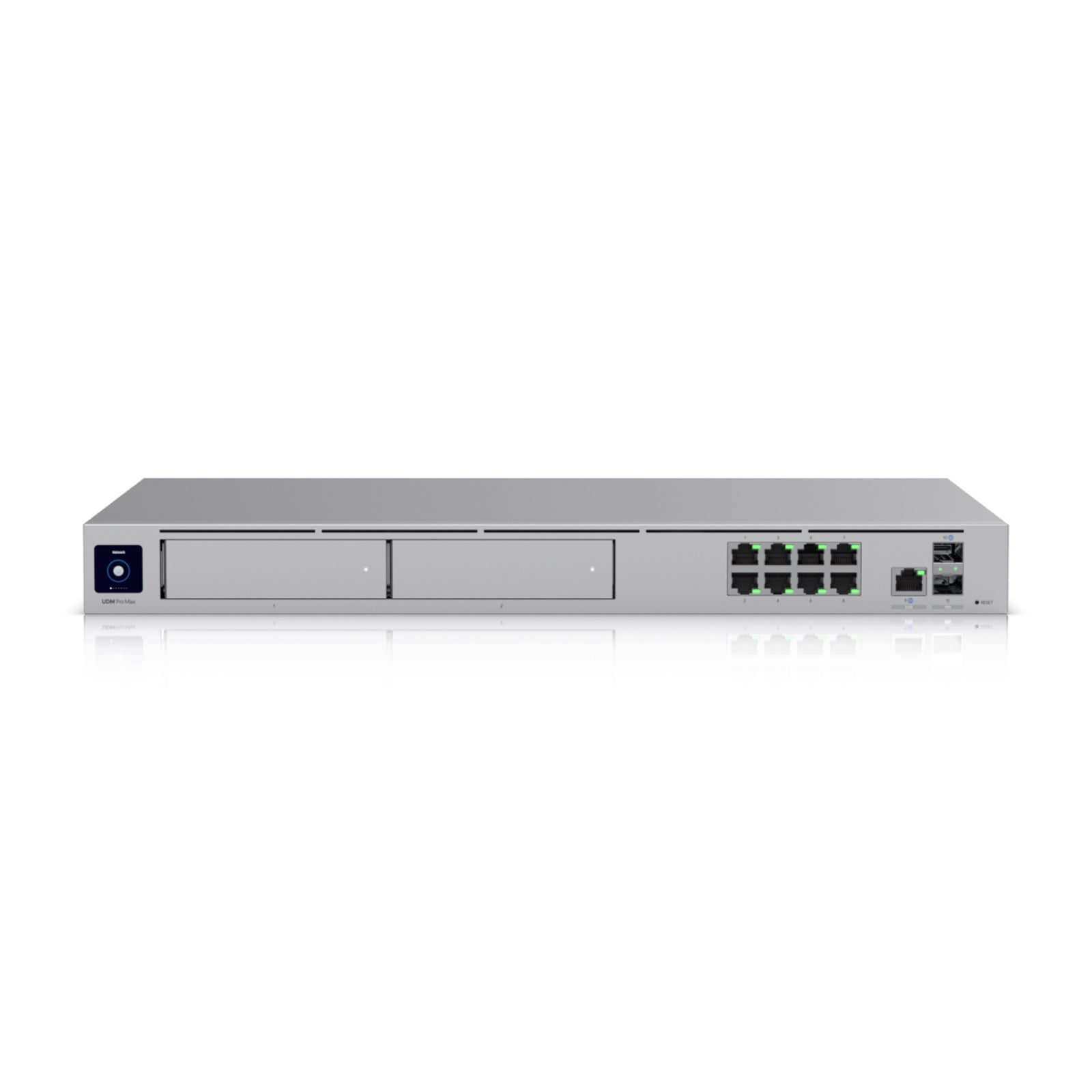

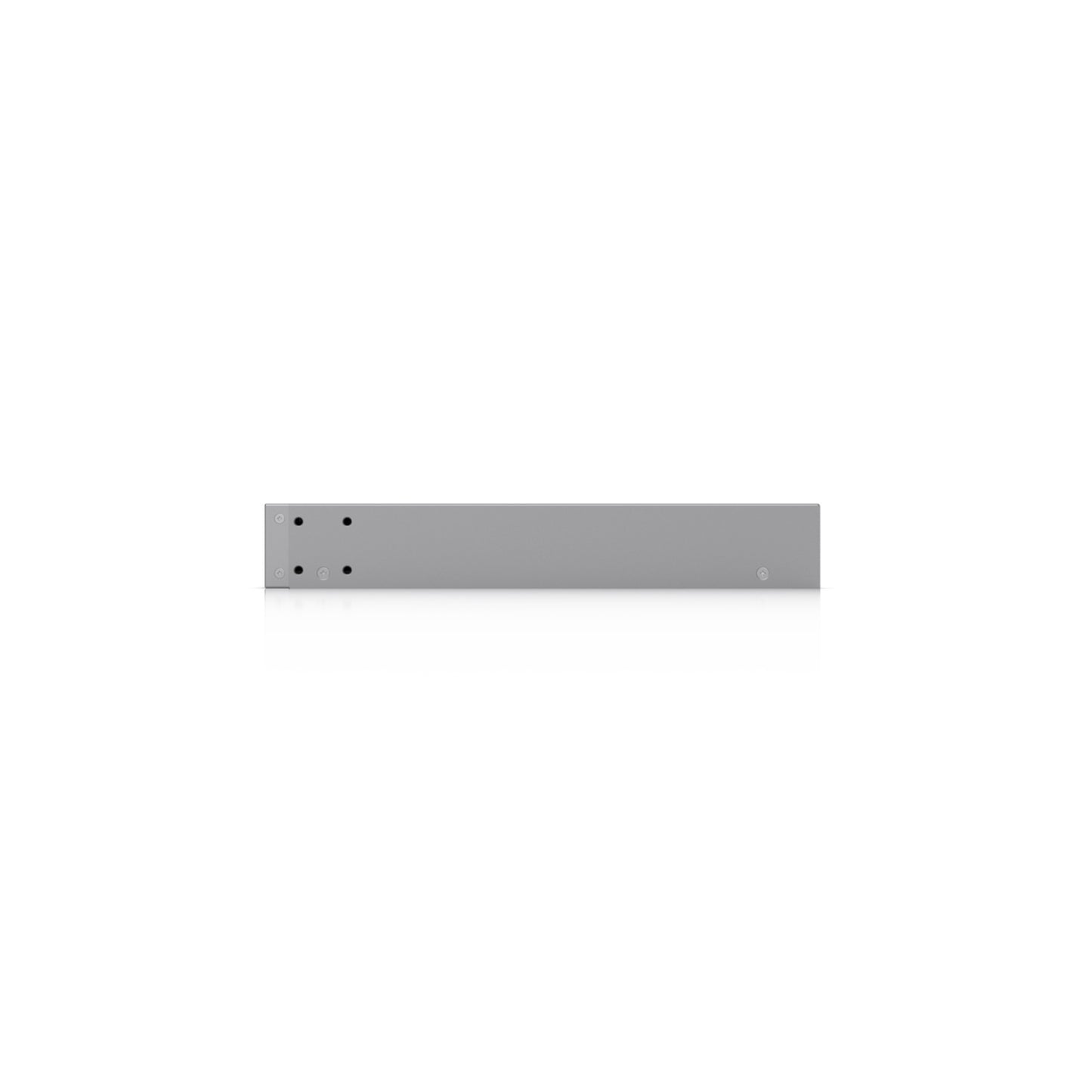

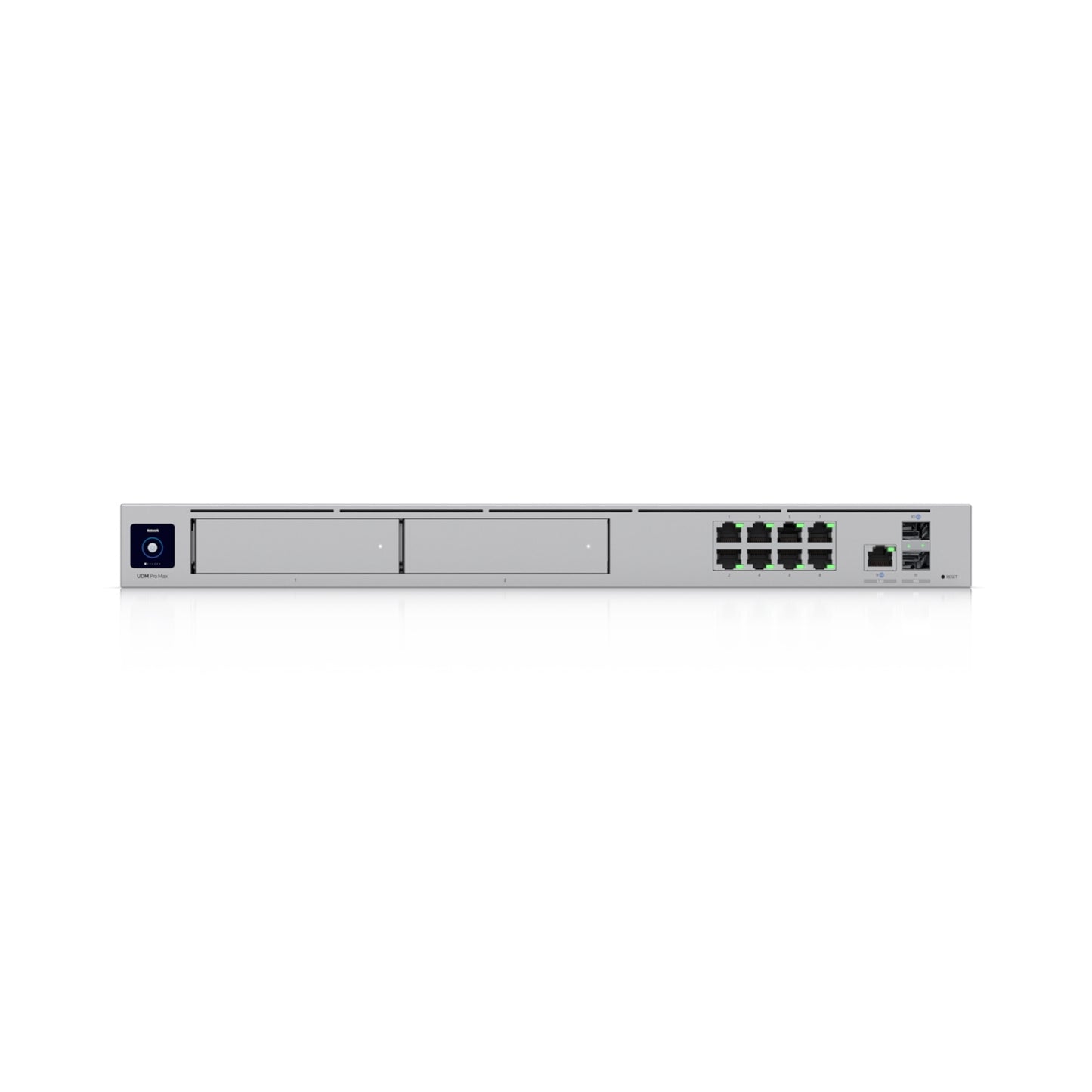

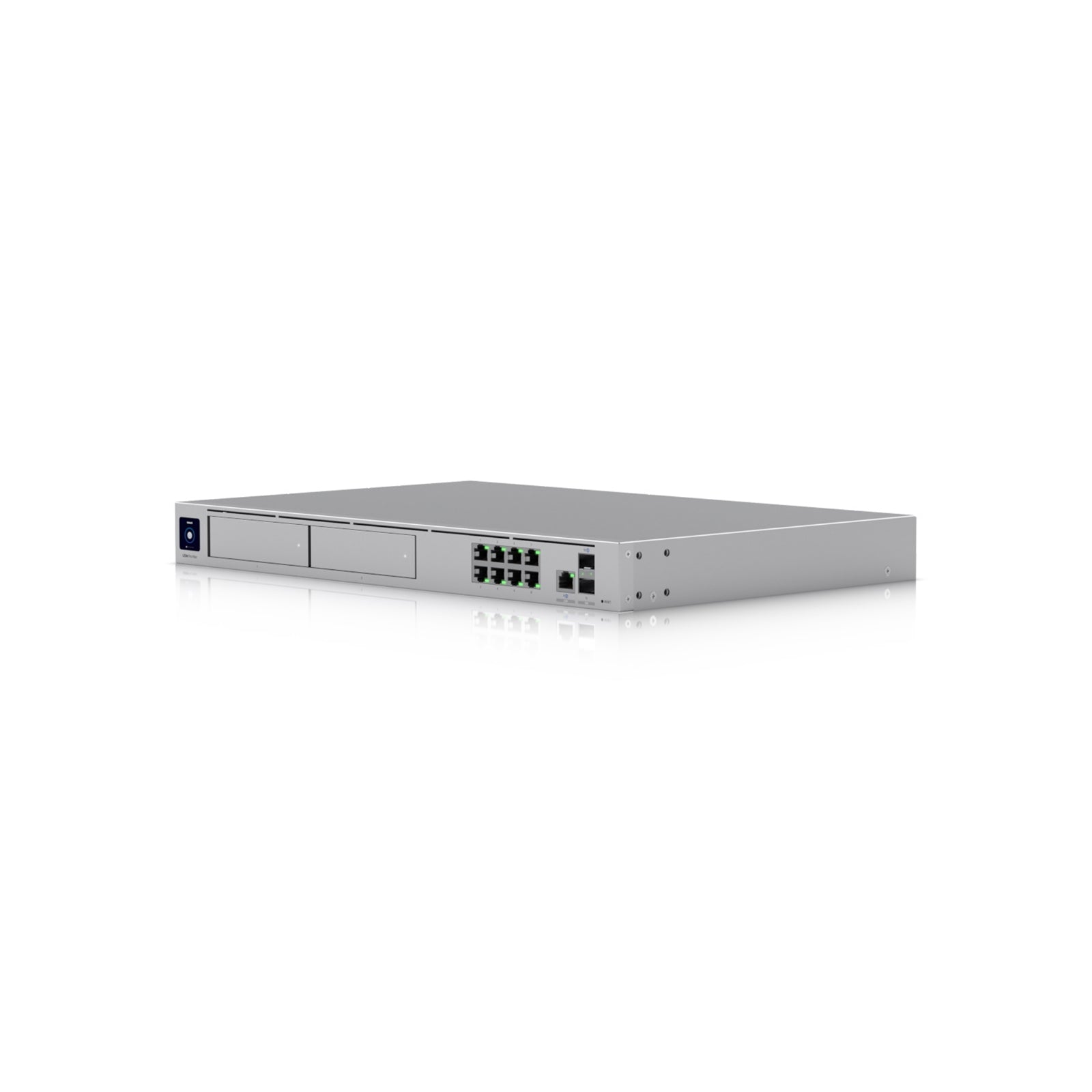

Ubiquiti UDM-PRO-MAX UniFi Dream Machine Pro Max

10G Cloud Gateway with 200+ UniFi device / 2,000+ client support, 5 Gbps IPS routing, and redundant NVR storage.

Enhanced computing power and memory for 2x the UniFi device and client capacity of Dream Machine Pro/SE
Includes full UniFi application suite for device management
5 Gbps routing with IDS/IPS

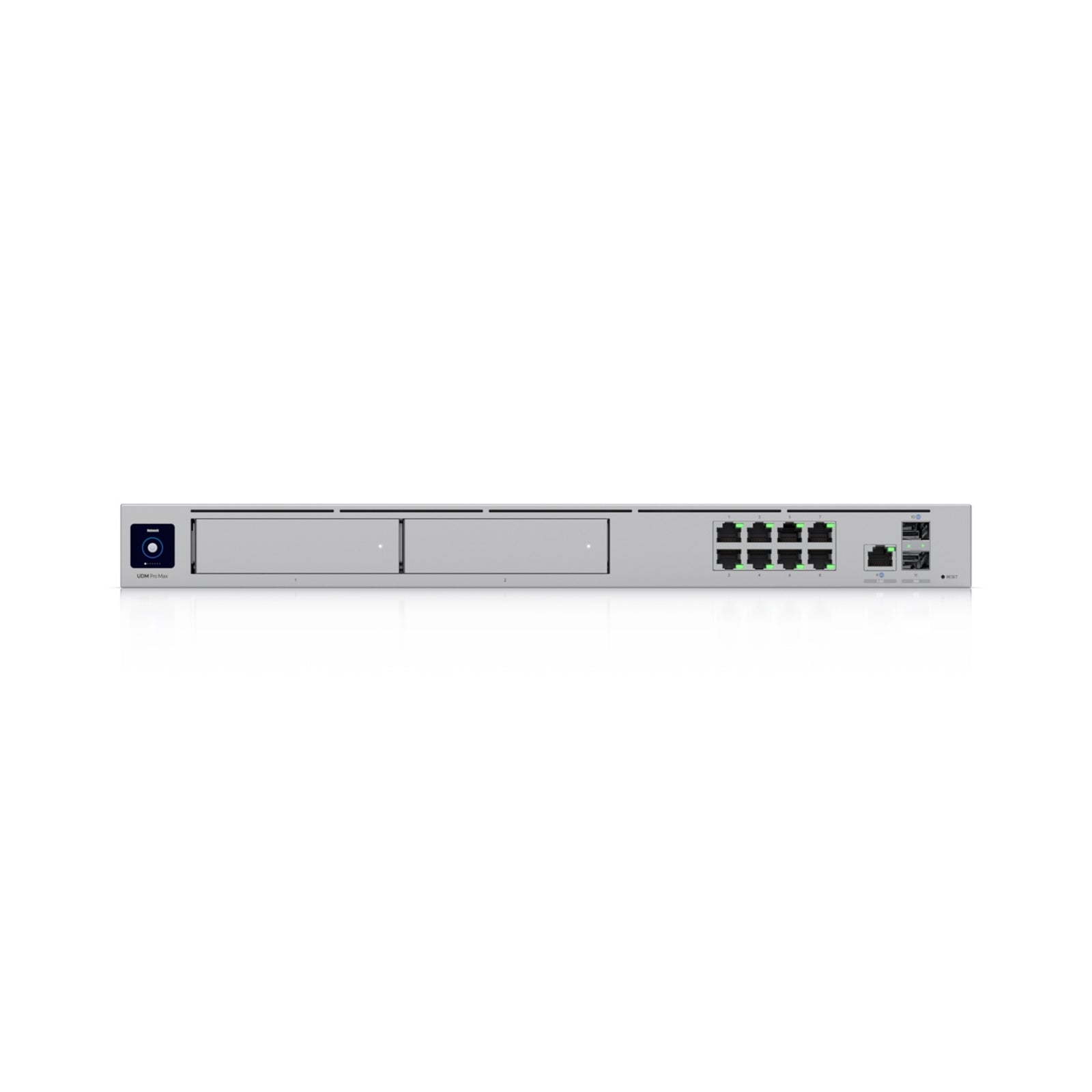

(1) 10G SFP+, (8) GbE RJ45 LAN ports
(1) 10G SFP+, (1) 2.5 GbE RJ45 WAN ports
(2) 3.5 Inch NVR HDD bays with RAID data protection
Built-in 128 GB SSD for NVR detection recordings
UniFi Power Backup ready
1.3 Inch touchscreen

Dimensions
442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2 Inch)

Weight
4.7kg

Enclosure Material
Aluminium CNC, SGCC steel

Mount Material
SGCC steel

Processor
Quad-core ARM Cortex-A57 at 2.0 GHz

System Memory
8 GB DDR4

Onboard Storage
32 GB eMMC
Integrated 128 GB SSD

Management Interface
Ethernet
Bluetooth

Networking Interface
LAN:
(8) GbE RJ45 ports
(1) 10G SFP+ port

WAN:
(1) 2.5 GbE RJ45 port
(1) 10G SFP+ port

IDS/IPS Throughput
5 Gbps*
*Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation.

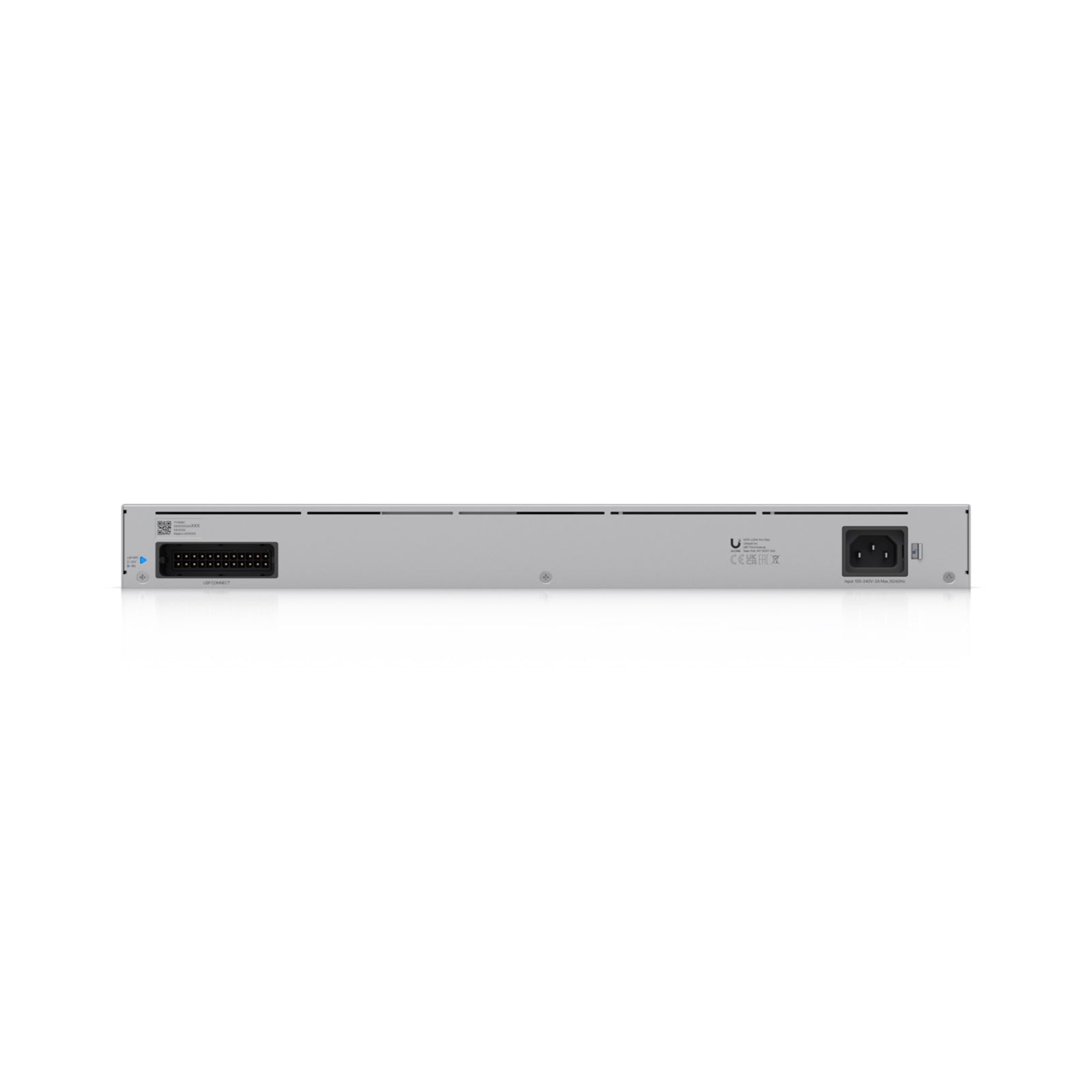

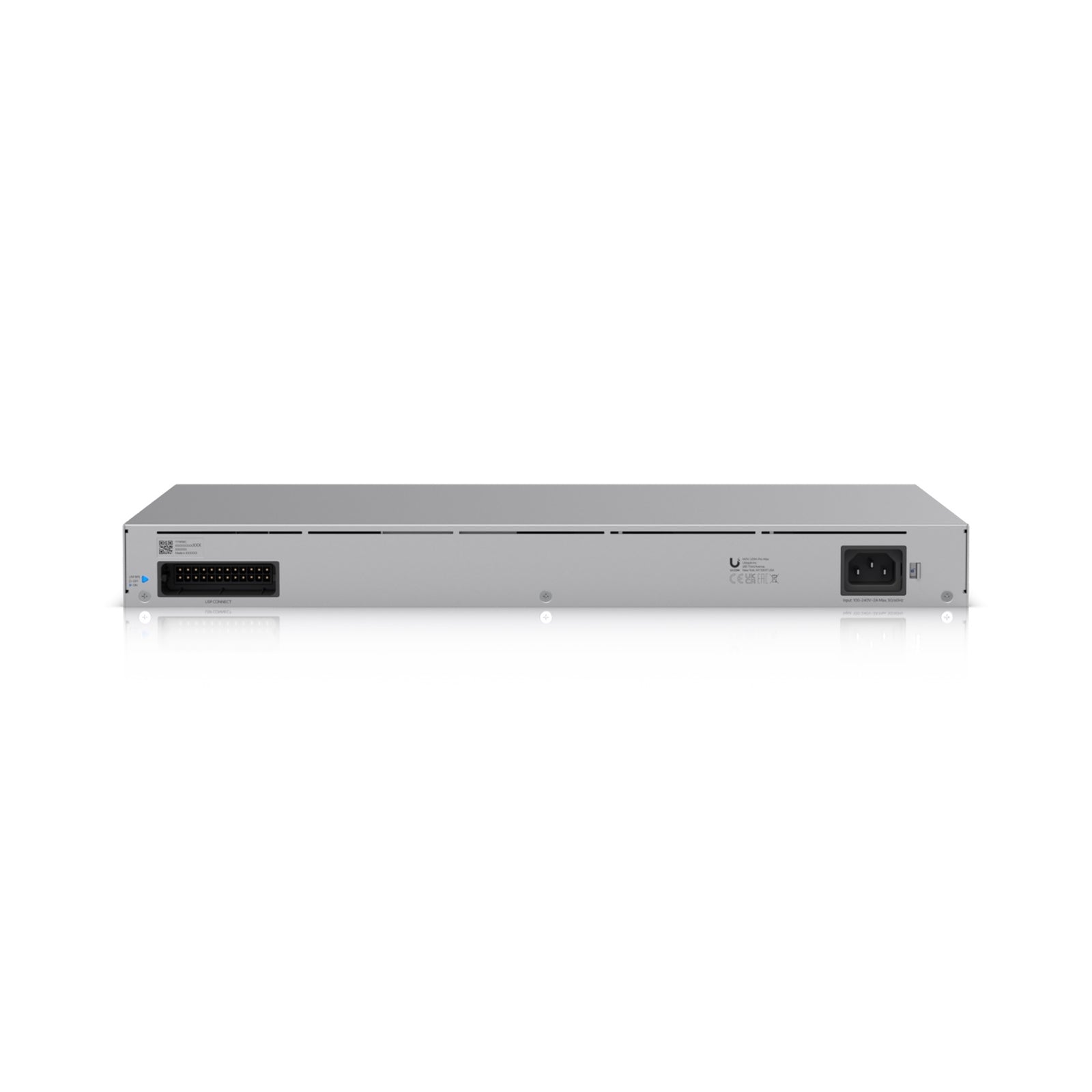

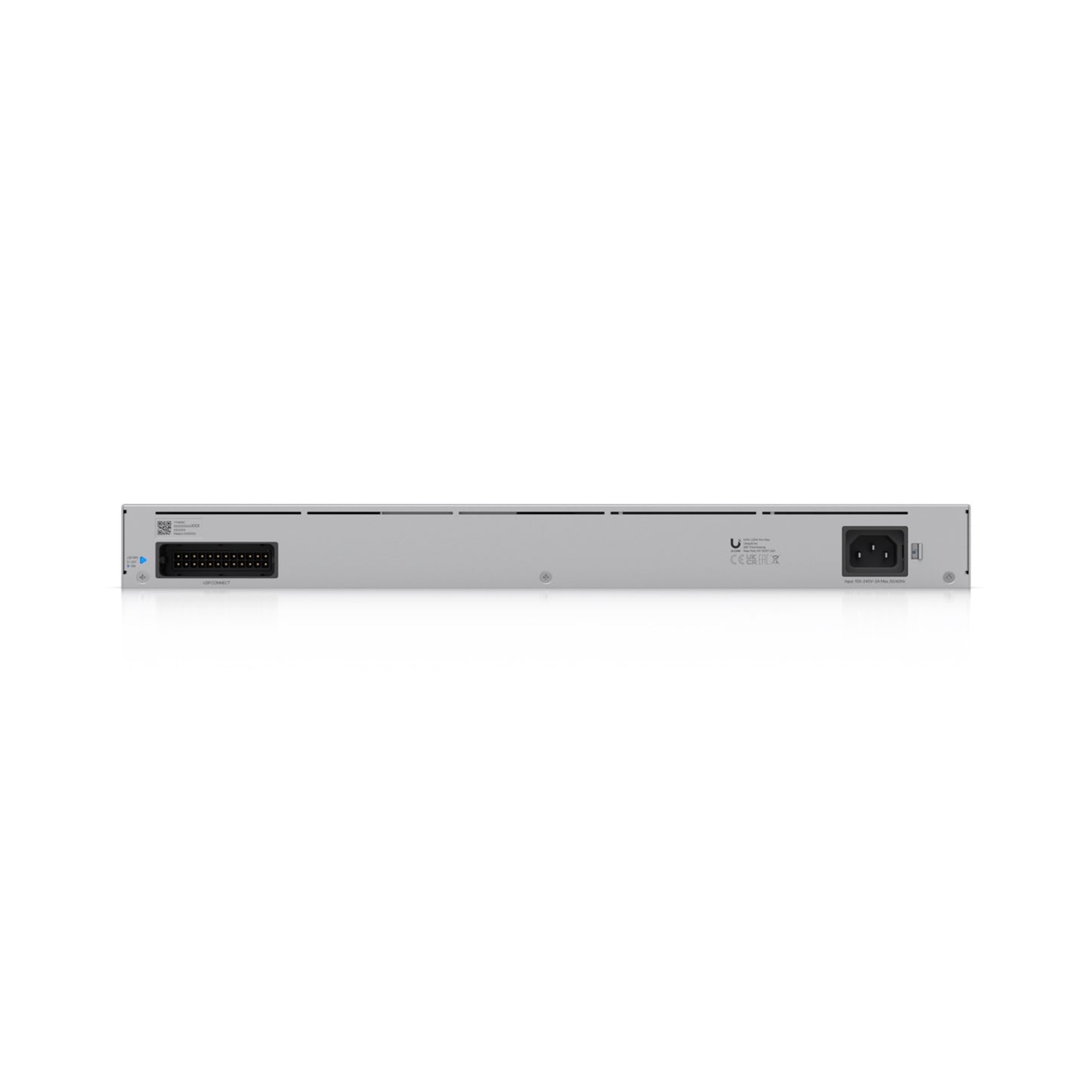

Power Method
(1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz
(1) USP-RPS DC input, 11.5V DC, 8.7A

Power Supply
AC/DC, internal, 100W

Supported Voltage Range
100—240V AC

Max Power Consumption
100W

Performance
Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting

Next Generation Security
Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall

Advanced Networking
License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support
