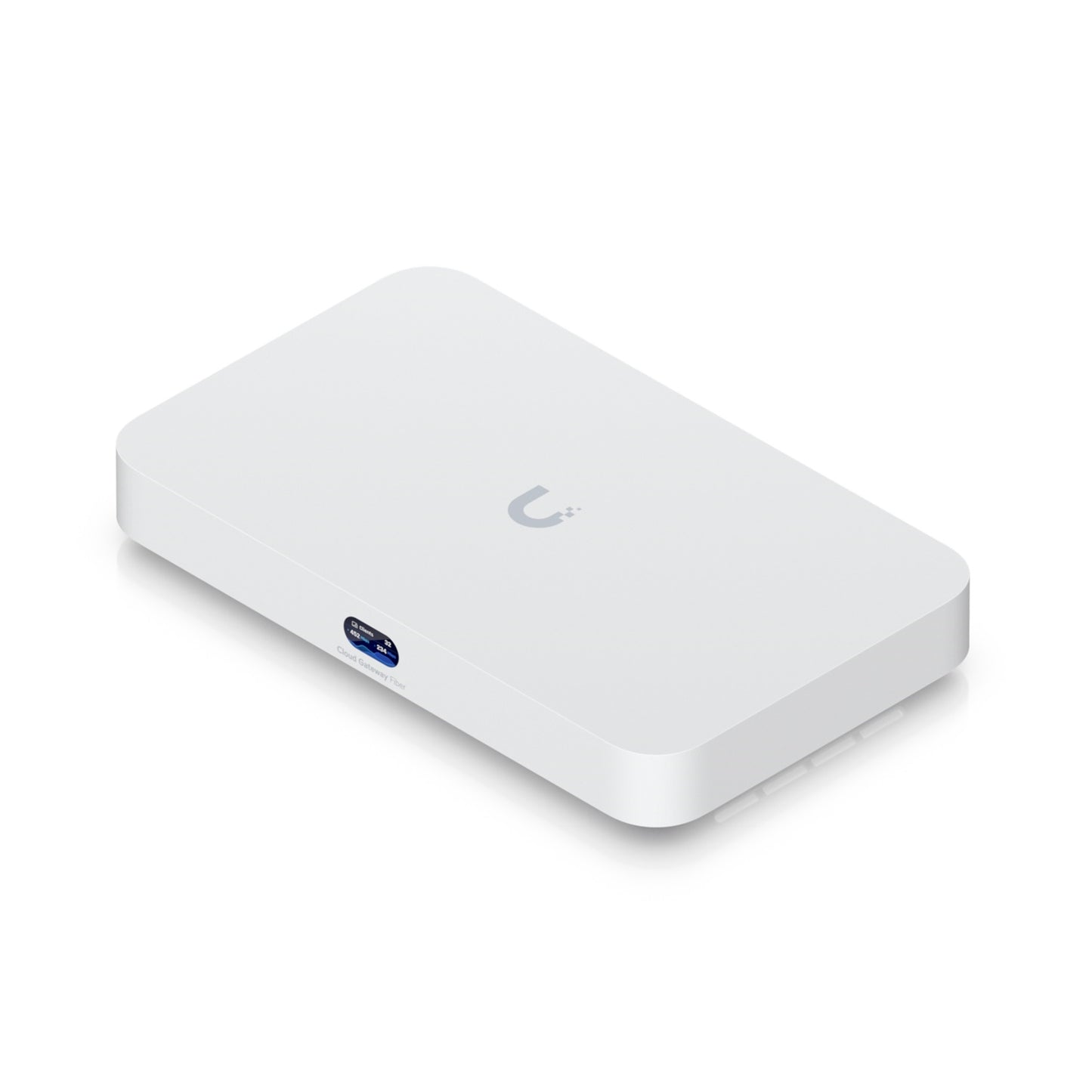

Ubiquiti UCG-FIBER UniFi Cloud Gateway Fiber Combined 2.5 GBE Switch, NVR, R&G

Desktop 10G Cloud Gateway with integrated 4-port 2.5 GbE switch, selectable NVR storage, and full UniFi application support.

Dimensions
212.8 x 127.6 x 30 mm
(8.3 x 5 x 0.5 Inch)

UniFi Application Suite
Network
Yes

Protect
Yes

Access
Yes

Talk
Yes

Connect
Yes

Managed UniFi Devices
50+

Managed Cameras
(15) HD
(8) 2K
(5) 4K

Simultaneous Users Connected
500+

Default WAN Ports
(1) 10G SFP+
(1) 10 GbE RJ45

LAN Ports
(1) 10G SFP+
(4) 2.5 GbE RJ45

IDS/IPS Throughput
5 Gbps

Form Factor
Compact desktop

Stateful Firewall
Yes

Application-Aware Layer 7 Firewall
Yes

DPI and Traffic Identification
Yes

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps
Yes

Content Filtering
Yes

Intrusion Prevention (IPS/IDS)
Yes

Ad Blocking
Yes

IDS/IPS Signatures
55,000+ with CyberSecure

VLAN/Subnet-based Traffic Segmentation
Yes

License-Free SD-WAN
Yes

Site to Site VPN
Site Magic
Yes

IPsec
Yes

OpenVPN
Yes

VPN Server
Identity Endpoint One-Click VPN
Yes

Teleport Zero-Configuration VPN
Yes

WireGuard
Yes

OpenVPN
Yes

L2TP
Yes

VPN Client
OpenVPN
Yes

WireGuard
Yes

Multi-WAN Load Balancing
Yes

Dynamic Routing - OSPF
Yes

Advanced QoS
Yes

Multicast DNS (mDNS)
Yes

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Yes

Integrated RADIUS Server
Yes

RADIUS over TLS (RadSec)
Yes

Additional Internet Failover with UniFi LTE Backup
Yes

Internet Quality and Outage Reporting
Yes

MAC Address Table Size
4000

NVR Storage
Selectable NVMe SSD up to 2 TB

PoE Budget
30W

Max. PoE Wattage per Port by PSE
30W

Voltage Range PoE Mode
50-57V

Max. Power Consumption
29.4W (Excluding PoE output)

Power Method
DC jack (54V DC/1.1A)

Power Supply
54V DC/1.1A
(adapter included)

Supported Voltage Range
100-240V AC

Processor
Quad-core ARM Cortex-A73 at 2.2 GHz

System Memory
3GB

Weight
Without SSD: 675 g (1.5 lb)
With SSD: 734 g (1.6 lb)

Enclosure Material
Polycarbonate

LCM Display
0.96 Inch status display

Management
Ethernet
Bluetooth

LEDs
Ethernet
SFP+

Button
Factory Reset

Certifications
CE, FCC, IC
