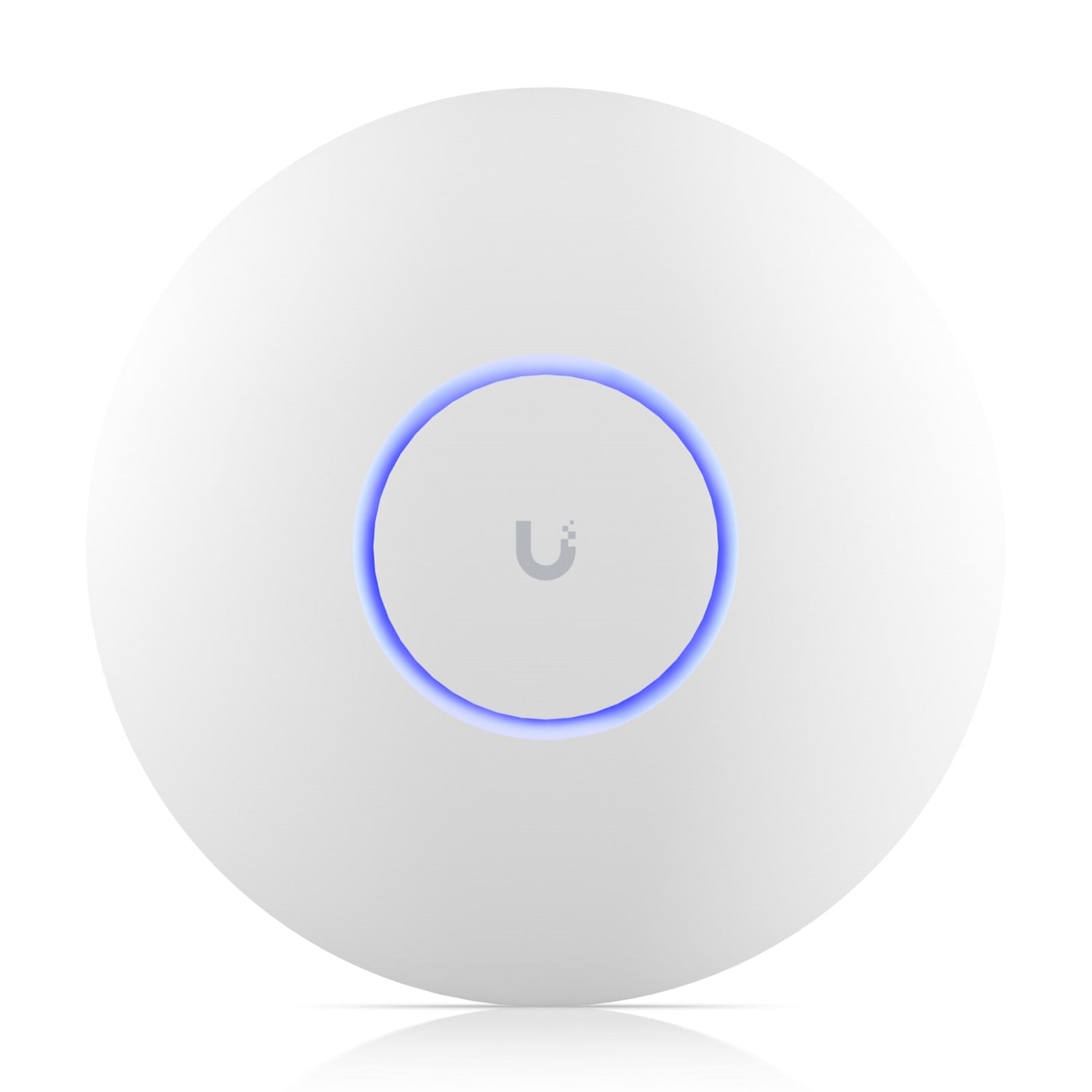

Ubiquiti U7 Pro Max WiFi 7 Ceiling Mounted Access Point with 2.5GbE Uplink

Ubiquiti UniFi U7 Pro Max WiFi 7 Access Point

Key Features
WiFi 7 with 6 GHz support
802.11a/b/g/n/ac/ax/be
8 spatial streams
Real-time spectral analysis for enhanced channel selection
Up to 160 m² (1,750 ft²) coverage
500+ connected devices
Powered using PoE+
2.5 GbE uplink

Introducing the Ubiquiti UniFi U7-Pro-Max, the pinnacle of WiFi 7 performance. This advanced access point supports tri-band operation, enhancing network capacity and speed with up to 15 Gbps aggregate throughput.

UniFi U7 Pro Max is ideal for high-density environments, leveraging OFDMA and MU-MIMO technologies to manage network traffic efficiently. The U7-Pro-Max features advanced security protocols, and a sleek design for easy installation.

Whether for enterprise, campus, or public venue deployments, the U7-Pro-Max access point ensures reliable, high-speed connectivity and a seamless user experience.

Specifications

Technical Specifications

Mechanical

Dimensions
206 x 46 mm (8.1 x 1.8")

Weight
680 g (1.5 lb)

Enclosure Material
Polycarbonate, aluminum

Mount Material
Stainless steel (SUS304), galvanized steel (SGCC)

Hardware

Networking Interface
(1) 1/2.5 GbE RJ45 port

Management Interface
Ethernet

Power Method
PoE+

Power Supply
UniFi PoE switch

Supported Voltage Range
44—57V DC

Max. Power Consumption
22W

Max. TX Power
2.4 GHz - 23 dBm
5 GHz - 29 dBm
6 GHz - 23 dBM

MIMO
2.4 GHz - 2 x 2
5 GHz - 4 x 4
6 GHz - 2 x 2

Throughput Rate
2.4 GHz - 688 Mbps
5 GHz - 8648 Mbps
6 GHz - 5765 Mbps

Antenna Gain
2.4 GHz - 4dBi
5 GHz - 6 dBi
6 GHz - 5.9 dBi

LEDs
White/Blue

Button
Factory reset

Mounting
Wall, ceiling (Included)

Ambient Operating Temperature
-30 to 60° C (-22 to 140° F)

Ambient Operating Humidity
5 to 95% noncondensing

Certifications
CE, FCC, IC

Software

WiFi Standards
802.11a/b/g/n/ac/ax/be

Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

BSSID
8 per radio

VLAN
802.1Q

Advanced QoS
Per-user rate limiting

Guest Traffic Isolation
Supported

Concurrent Clients
500+

Supported Data Rates

802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b
1, 2, 5.5, 11 Mbps

802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11ax (WiFi 6/6E)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

802.11be (WiFi 7)
5 GHz - 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
6 GHz - 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Application Requirements

UniFi Network
Version 8.2.93 and later

Box Contents
1 x U7 Pro Max access point
1 x Mounting template level
1 x Wall mount plate
1 x Multi-purpose mounting plate
All mounting hardware
