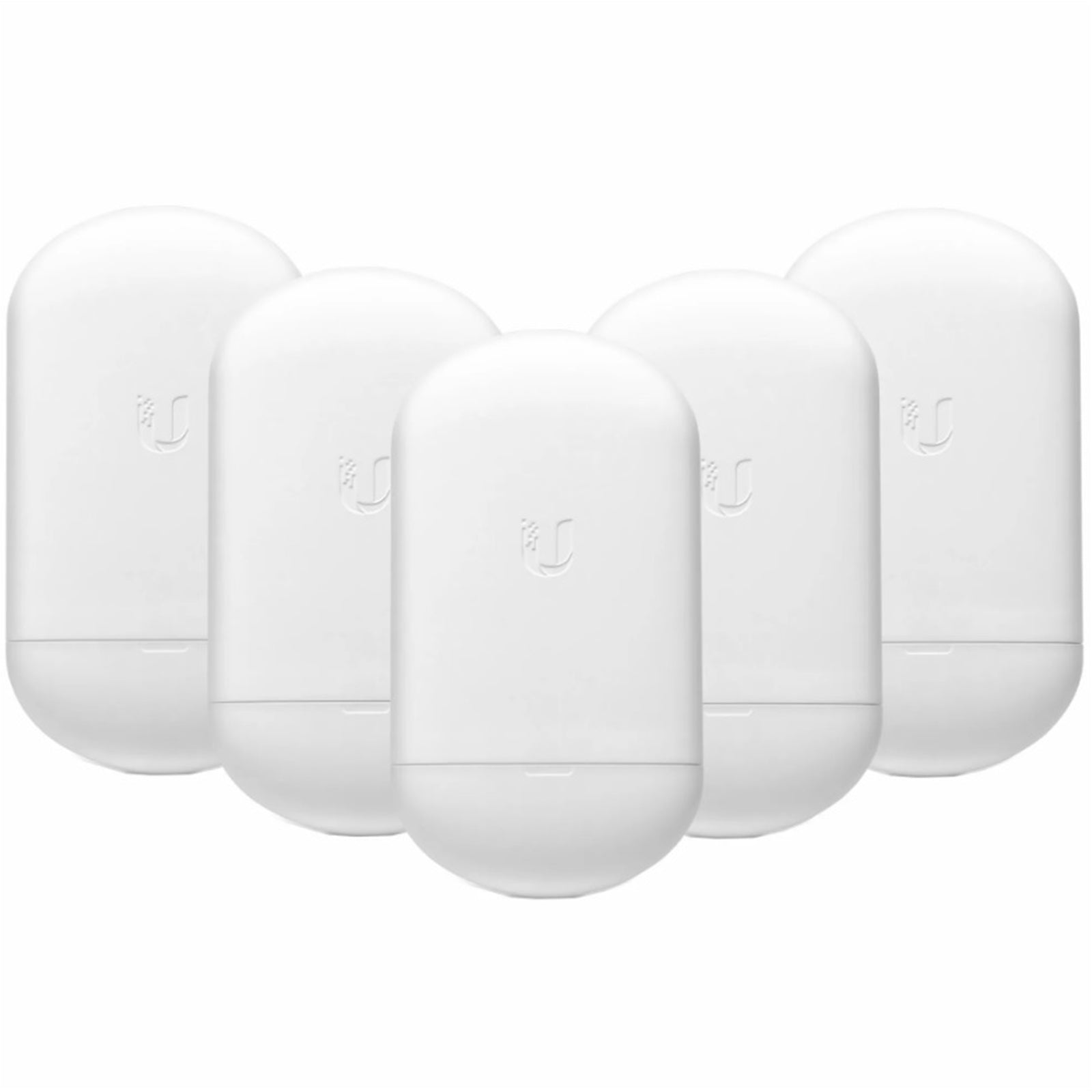

Ubiquiti NS-5ACL NanoStation AC Loco 5GHz 13dBi airMAX Wireless AC CPE Bridge 5x

Ubiquiti Networks revolutionized the market by introducing the NanoStation M, the world's first affordable and highly efficient broadband Customer Premises Equipment (CPE). Building upon that success, the Ubiquiti LOCO5AC-5 NanoStation AC Loco brings this concept to the next level with its sleek design, integrated airMAX (MIMO TDMA protocol) technology, and dedicated WiFi management.

Combining the radio and antenna into a single unit results in a more streamlined and space-saving CPE. The Ubiquiti LOCO5AC NanoStation AC Loco maximizes gain while minimizing its footprint, making it an ideal choice for various deployments. Its low cost, exceptional performance, and compact form factor make the NanoStation AC a versatile and cost-effective solution for any setup.

Spectral Analysis
airView allows you to identify noise signatures and plan your networks to minimise noise interference.

UMobile App
The Ubiquiti LOCO5AC NanoStation AC Loco integrates a separate WiFi radio for fast and easy setup using your mobile device. The UMobile App provides instant accessibility to the airOS configuration interface and can be downloaded from the App Store (iOS) or Google Play (Android). UMobile allows you to set up, configure, and manage your device, and offers various configuration options once you're connected or logged in.

airMAX protocol
Unlike standard WiFi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller. This time slot method eliminates hidden node collisions and maximises airtime efficiency, so airMAX technology provides performance improvements in latency, noise immunity, scalability, and throughput compared to other outdoor systems in its class.

Key Features

- Access Point PtMP airMAX Mixed Mode.
- airMAX ac Protocol Support.
- Long-Range Point-to-Point (PtP) Link Mode.
- Selectable Channel Width.
- PtP: 10/20/30/40/50/60/80 MHz.
- PtMP: 10/20/30/40 MHz.
- Automatic Channel Selection.
- Transmit Power Control: Automatic/Manual.
- Automatic Distance Selection (ACK Timing).
- Strongest WPA2 Security.


Specifications

Dimensions (mm)
163 x 31 x 80

Weight
0.18 kg

Power Supply (PoE)
24V, 0.5A

Max. Power Consumption
5.5 W

Gain
13 dBi

Polarisation
Dual Linear

Enclosure Characteristics
Outdoor UV Stabilised Plastic

Mounting
Pole Mounting Kit Included

Power Method
Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)

Operating Temperature
-30 to 75° C

Operating Humidity
5 to 95% Condensing

Shock and Vibration
ETSI300-019-1.4

Processor Specs
Atheros MIPS 24KC, 400 MHz

Memory
32 MB SDRAM, 8 MB Flash

Networking Interface
(1) 10/100 Ethernet Port

Wireless Approvals
FCC Part 90Z

RoHS Compliance
Yes

Gain
13 dBi

Cross-pol Isolation
20 dB Minimum

Max. VSWR
1.4:1

Beamwidth
45° (H-pol) / 45° (V-pol) / 45° (Elevation)
