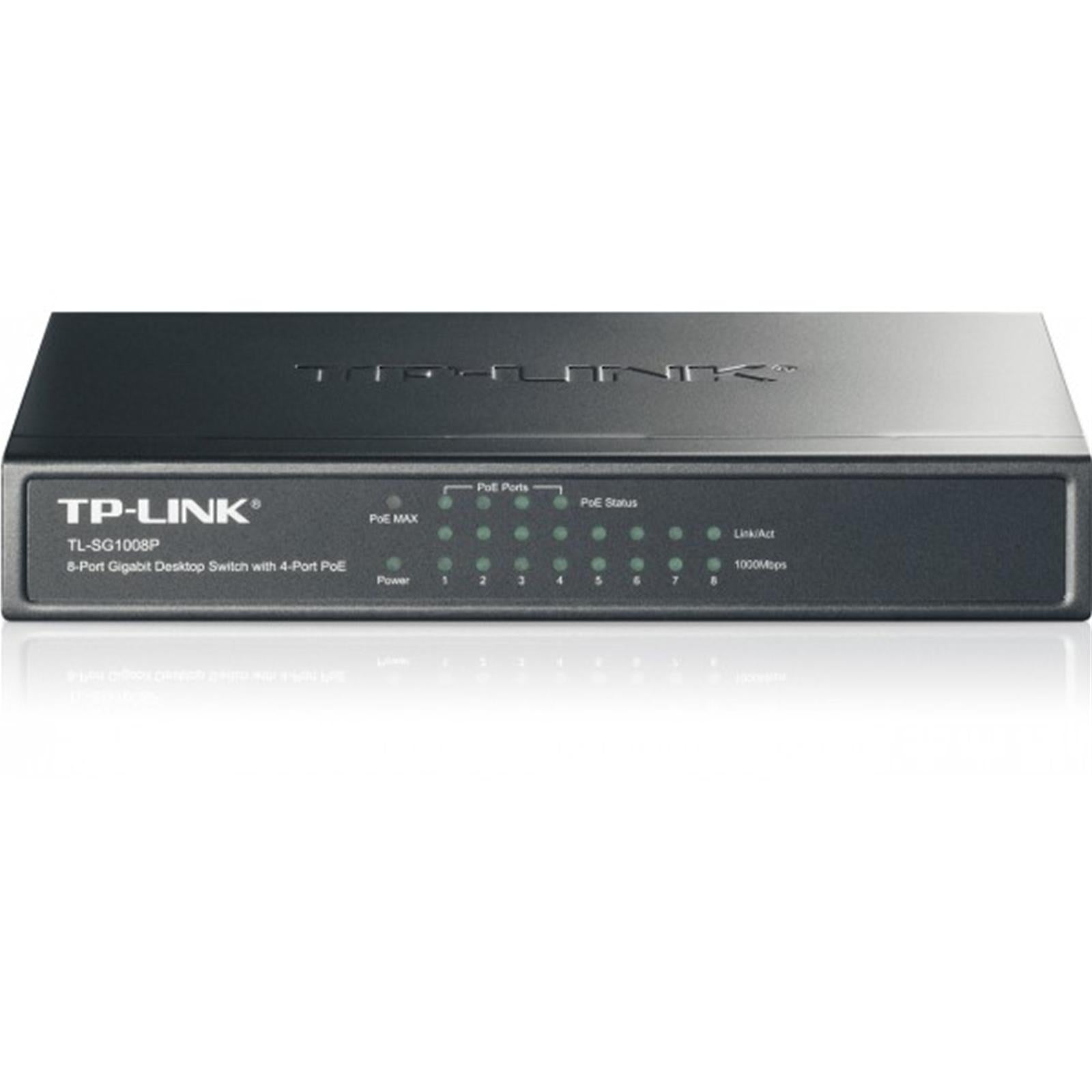

TP-Link TL-SG1008P 8-Port Metal Gigabit Desktop PoE Switch w/ 4-Port PoE+ (64W)

8-Port Gigabit Desktop PoE Switch with 4-Port PoE+

Key Features

8 x 10/100/1000 Mbps RJ45 ports.
4 x PoE+ ports transfer data and power on individual cables.
Works with IEEE 802.3af/at compliant PDs.
Plug and Play, no configuration and installation required.
802.1p/DSCP QoS enable smooth latency-sensitive traffic.
Supports PoE power up to 30 W for each PoE port.
Supports PoE power up to 64 W for all PoE ports.

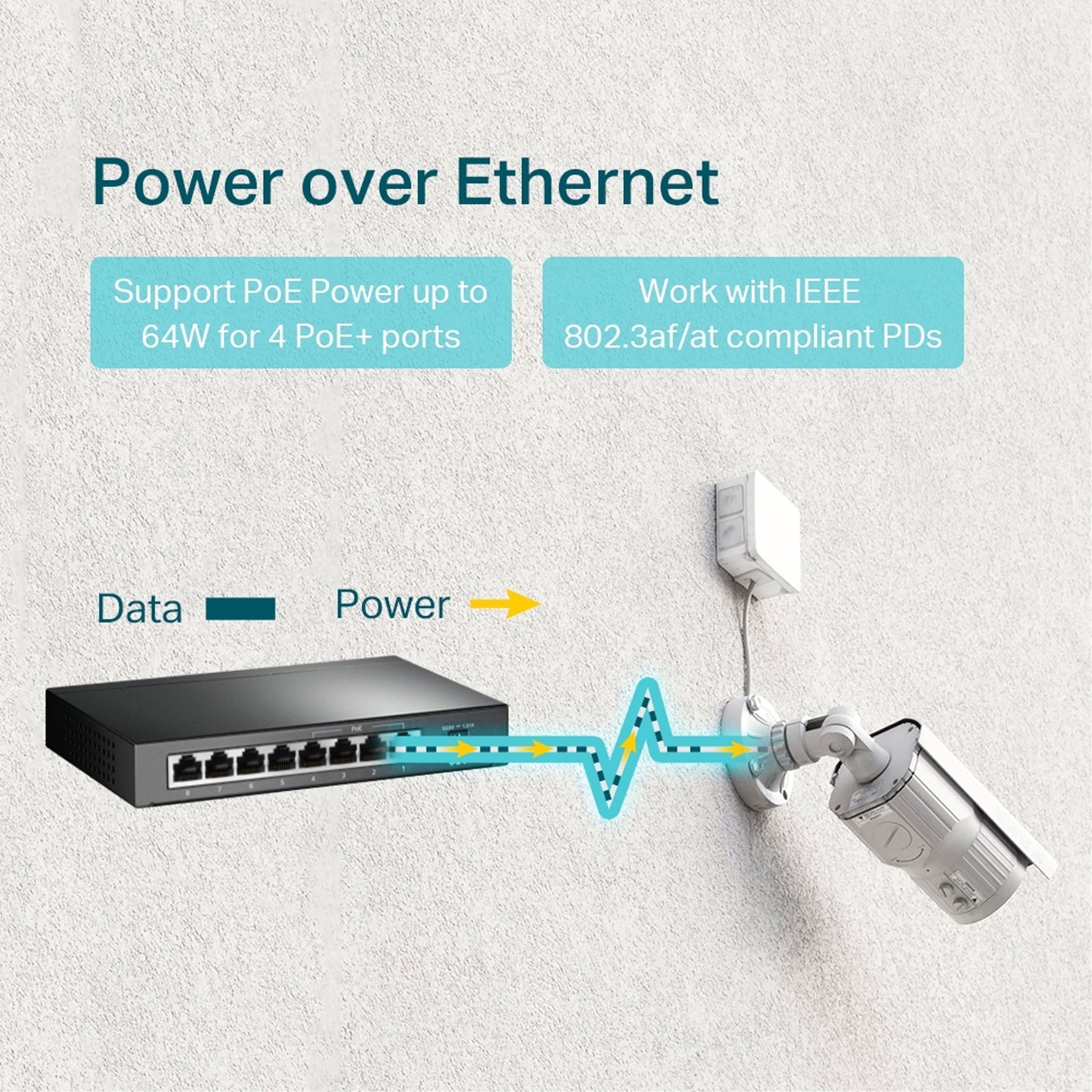

Dedicated 8-Port Switch with 4-Port PoE+ (64 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 64 W PoE power budget for the 4 x PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

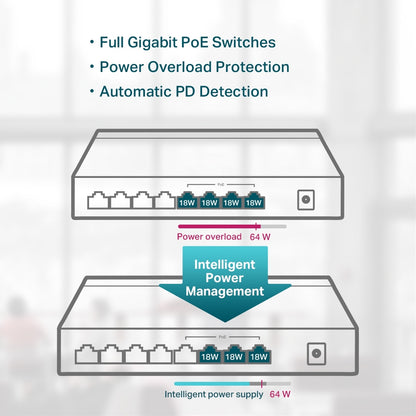

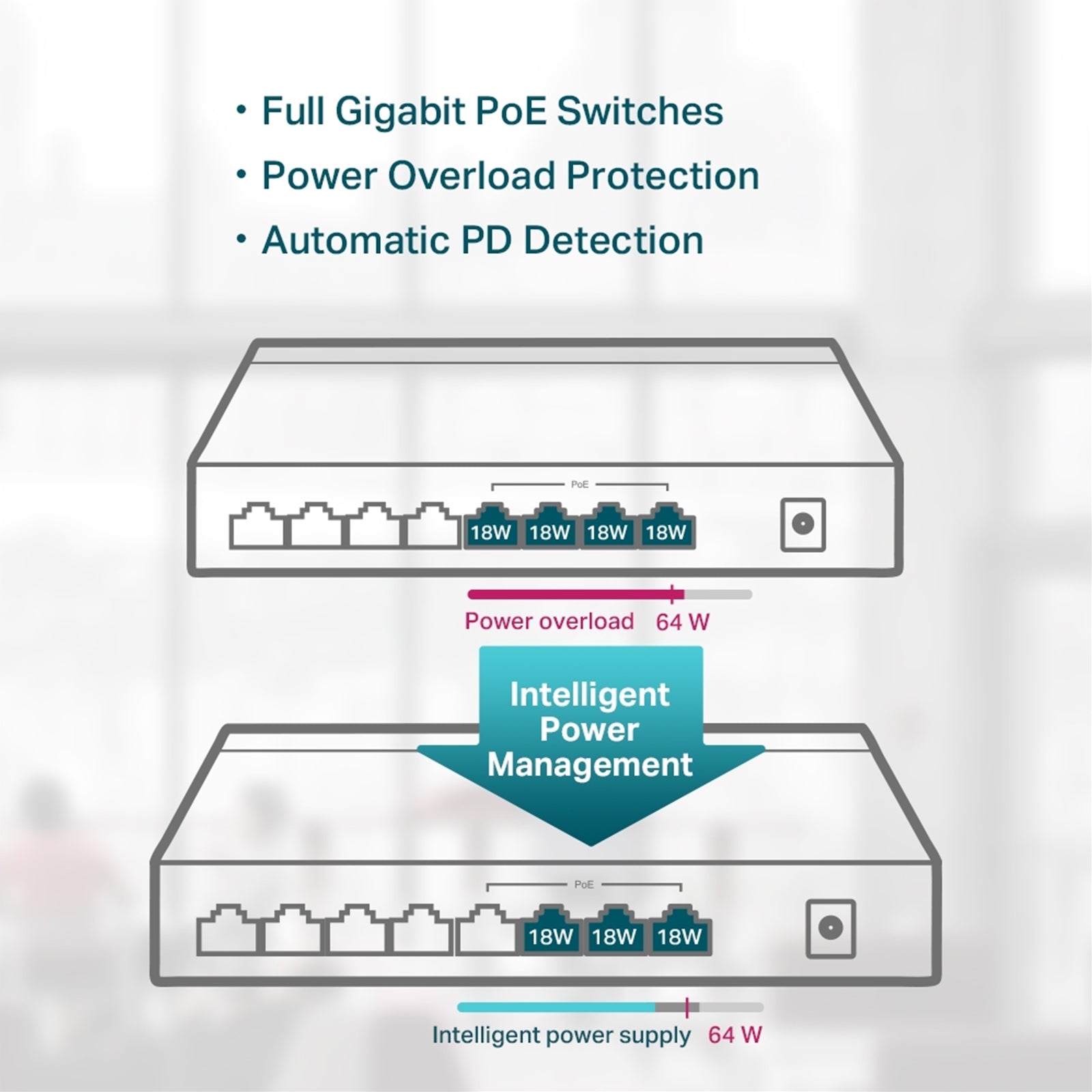

Intelligent Power Management
When total power consumption exceeds 64 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Advanced Functions for Higher Performance

Qos For Fluent Online Experience
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.

IGMP Snooping Traffic Optimization for IPTV
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

Durable Metal Casing
The interior components of TL-SG1008P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1008P delivers switching performance you can depend on.

HARDWARE FEATURES

Interface
8 x 10/100/1000 Mbps RJ45 Ports
AUTO Negotiation
AUTO MDI/MDIX

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)

Fan Quantity
Fanless

Physical Security Lock
Yes

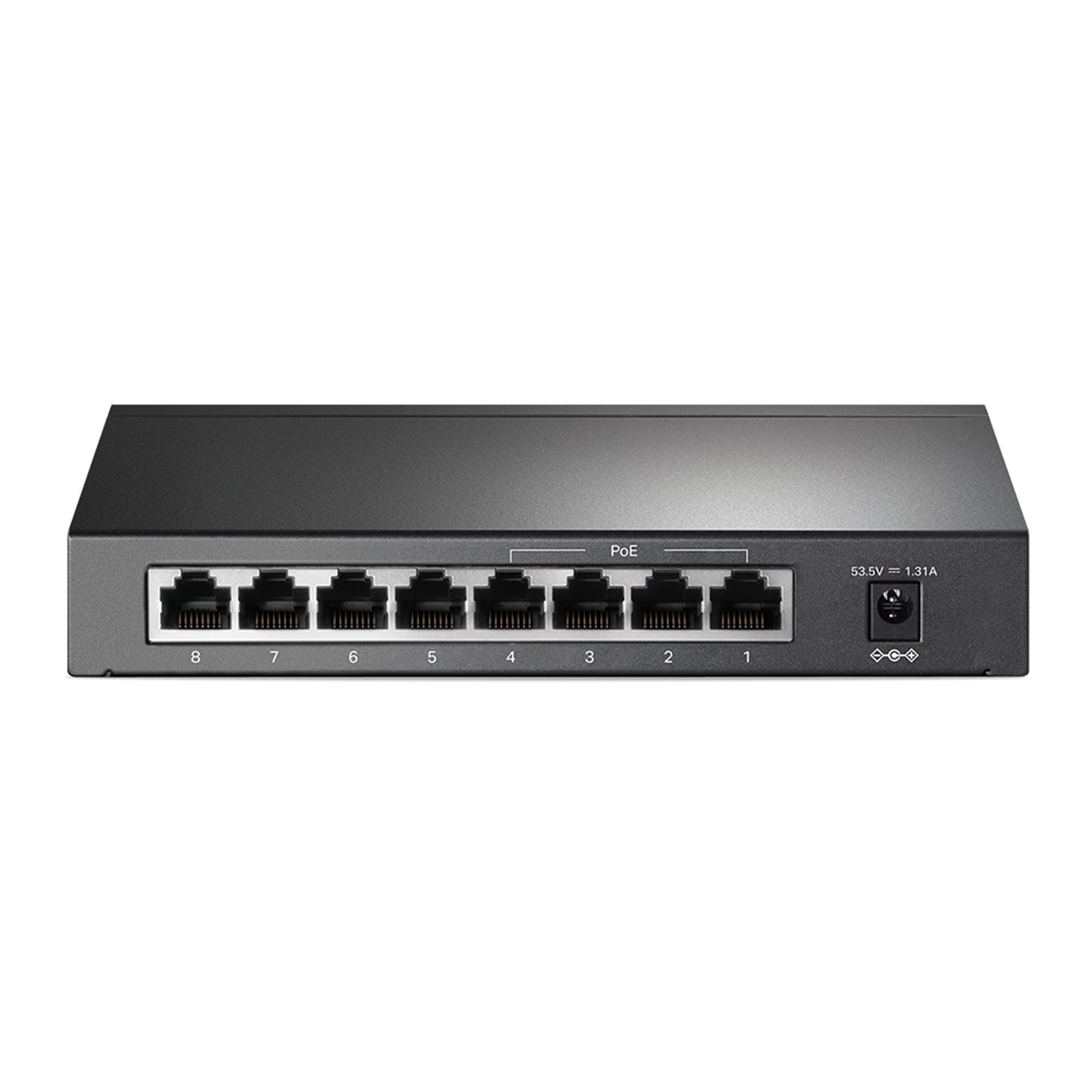

External Power Supply
External Power Adapter(Output: 53.5VDC / 1.31A)

Packet Forwarding Rate
11.904 Mpps

PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Ports 1–4
Power Supply: 64 W

Mac Address Table
4K

Jumbo Frame
16 KB

Switching Capacity
16 Gbps

Dimensions ( W x D x H )
6.7 x 3.9 x 1.1 in (171 x 98 x 27 mm)

Max Power Consumption
5.39 W (220/50 Hz no PD connected)
75 W (220/50 Hz with 64 W PD connected)

Max Heat Dissipation
18.38 BTU/h (no PD connected)
225.75 BTU/h (with 64 W PD connected)

SOFTWARE FEATURES

Transmission Method
Store-And-Forward

Advanced Functions
Compatible With IEEE 802.3af/at Compliant PDs
IGMP Snooping
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control
802.1p/DSCP QoS

OTHERS

Certification
CE, FCC, RoHS

Package Contents
TL-SG1008P
Power Adapter
Installation Guide

Environment
Operating Temperature: 0–40C (32–104 F);
Storage Temperature: -40–70C (-40–158 F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
