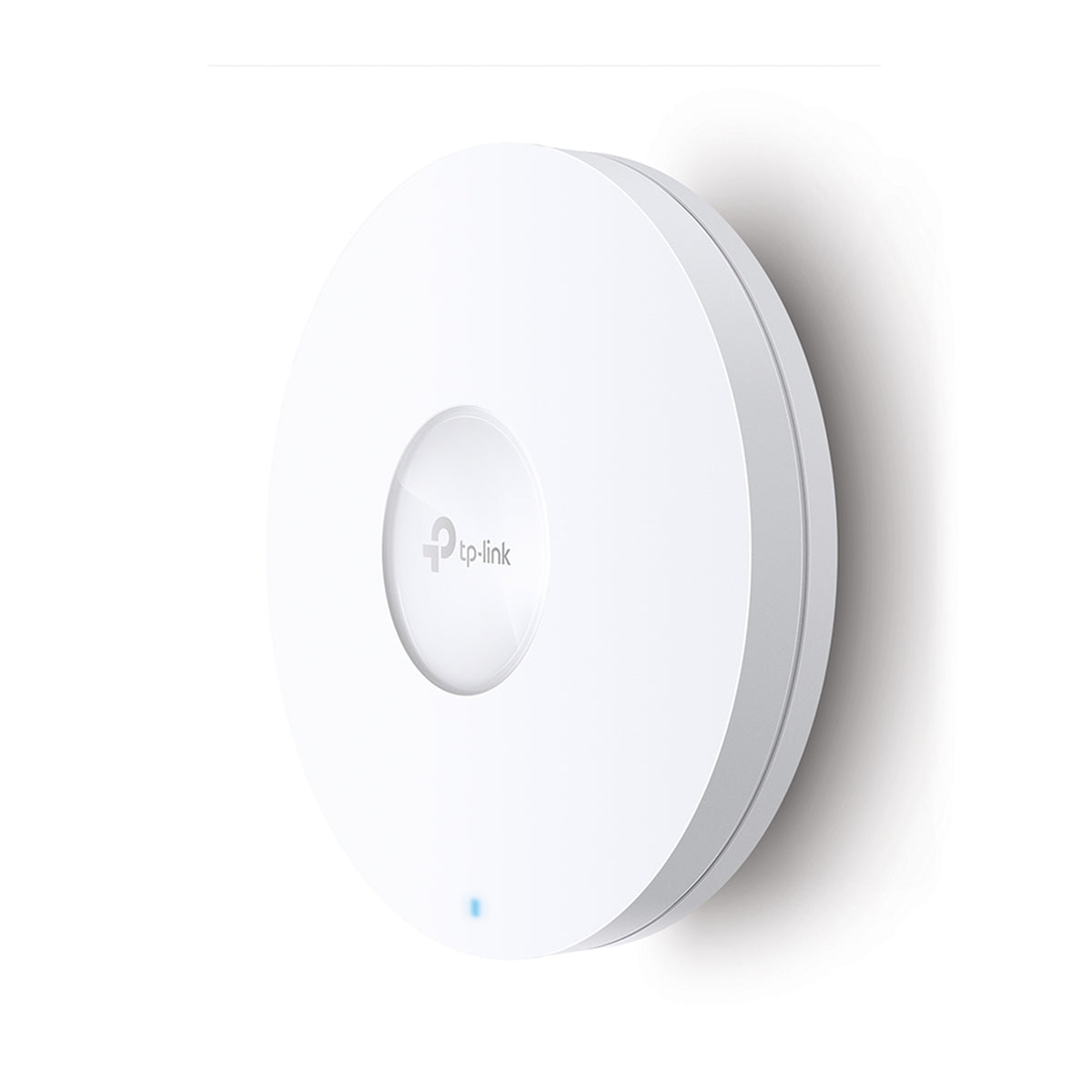

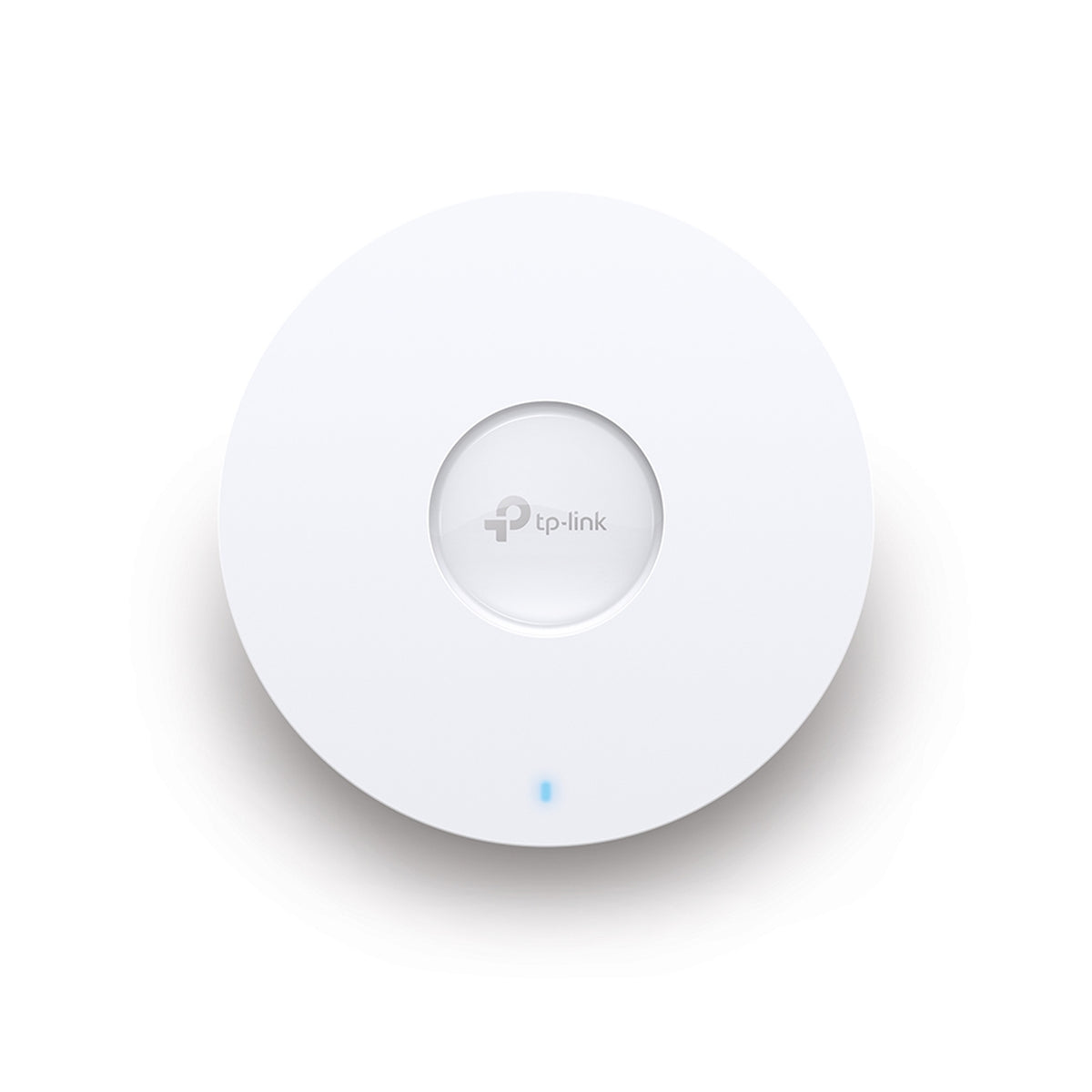

TP-Link Omada EAP670 AX5400 Ceiling Mount WiFi 6 Access Point

Blazing-Fast WiFi 6 Speeds
Simultaneous 574 Mbps on 2.4 GHz and 4804 Mbps on 5 GHz totals 5378 Mbps WiFi speeds.

High-Efficiency WiFi 6
More connected devices can enjoy faster speeds.

Centralized Cloud Management
Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.

160 MHz Channel
Double the data at peak transmission times on a single stream with HE160.

Seamless Roaming
Video streams and voice calls are unaffected as users move between locations.

Omada Mesh
Enables wireless connectivity between access points for extended range and flexible deployment.

PoE+ Powered
Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.


Specifications

HARDWARE FEATURES

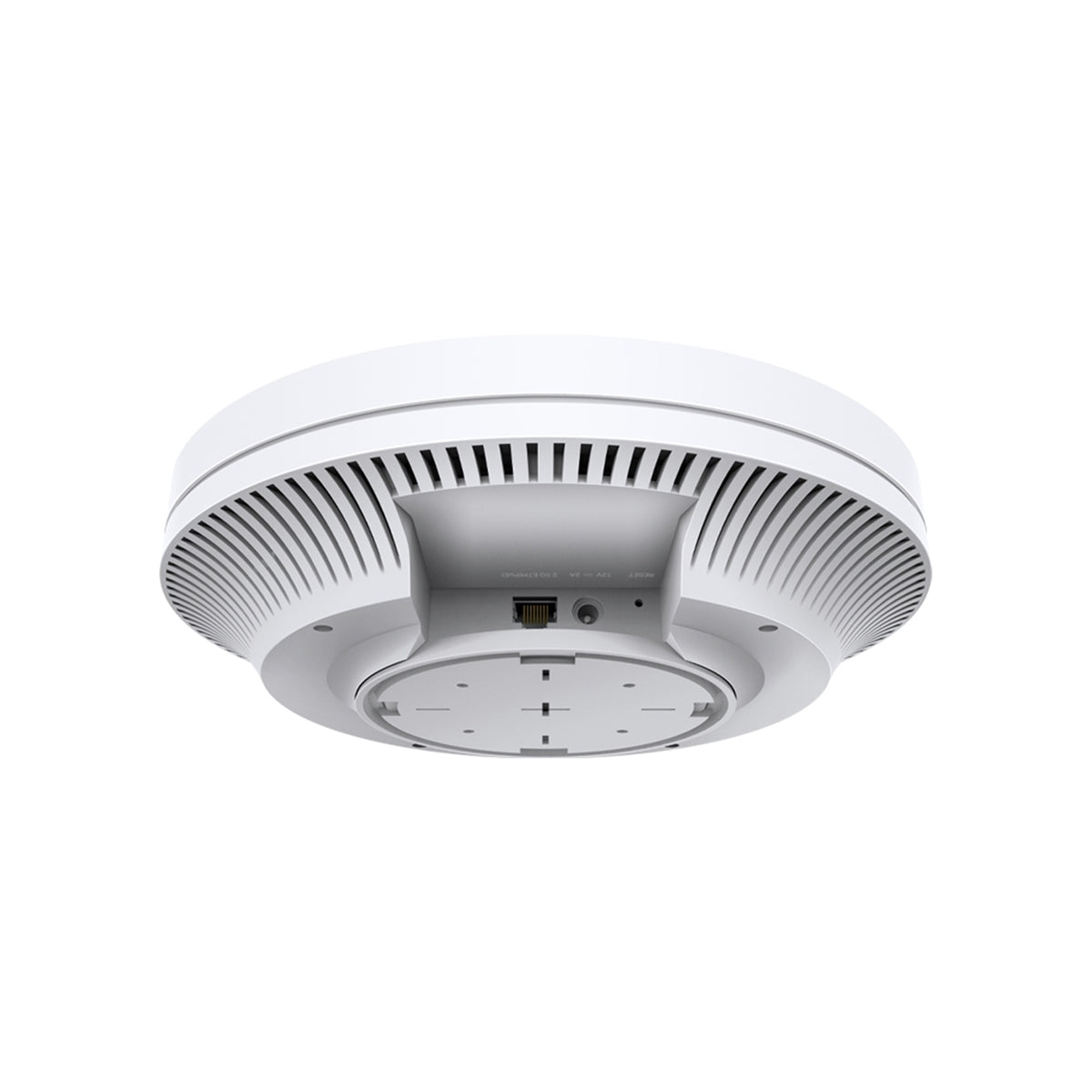

Interface:
1x 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)

Button:
Reset

Power Supply:
802.3at PoE
12 V / 1.5 A DC

Power Consumption:
EU: 18.1 W

Dimensions ( W x D x H ):
9.6 x 9.6 x 2.5 in (243 x 243 x 64 mm)

Antenna Type:
Internal Omni
2.4 GHz: 2x 4 dBi
5 GHz: 4x 5 dBi

Mounting:
Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

Wireless Client Capacity:
250+

Wireless Standards:
IEEE 802.11ax/ac/n/g/b/a

Frequency:
2.4 GHz and 5 GHz

Signal Rate:
5 GHz: Up to 4804 Mbps
2.4 GHz: Up to 574 Mbps

Wireless Functions:
1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
HE160 (160 MHz Bandwidth)
Seamless Roaming
Omada Mesh
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

Wireless Security:
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power:
CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, , band1 & band2, EIRP)
<30 dBm(5 GHz, , band3, EIRP)

FCC:
<25 dBm (2.4 GHz)
<28 dBm (5 GHz)

MANAGEMENT

Omada App:
Yes

Centralized Management:
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Cloud-Based Controller

Cloud Access:
Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller)

Email Alerts:
Yes

LED ON/OFF Control:
Yes

Management MAC Access Control:
Yes

SNMP:
v1, v2c, v3

System Logging:
Local/Remote Syslog

SSH:
Yes

Web-based Management:
HTTP/HTTPS

L3 Management:
Yes

Multi-site Management:
Yes

Management VLAN:
Yes

Zero-Touch Provisioning:
Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS

Certification:
CE, FCC, RoHS

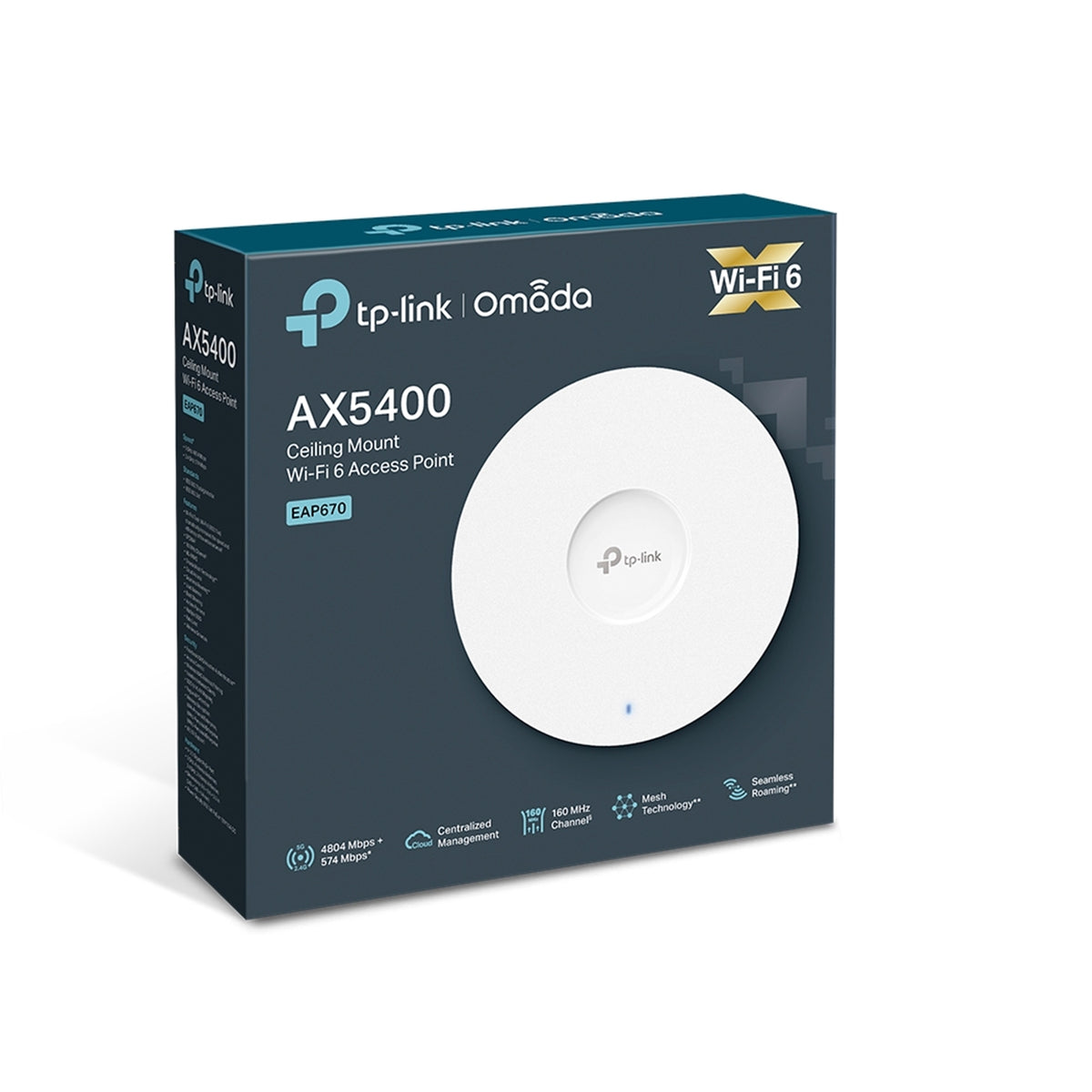

Package Contents:
EAP670
Power Adapter
Ceiling/Wall Mounting Kits
Installation Guide

System Requirements:
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
