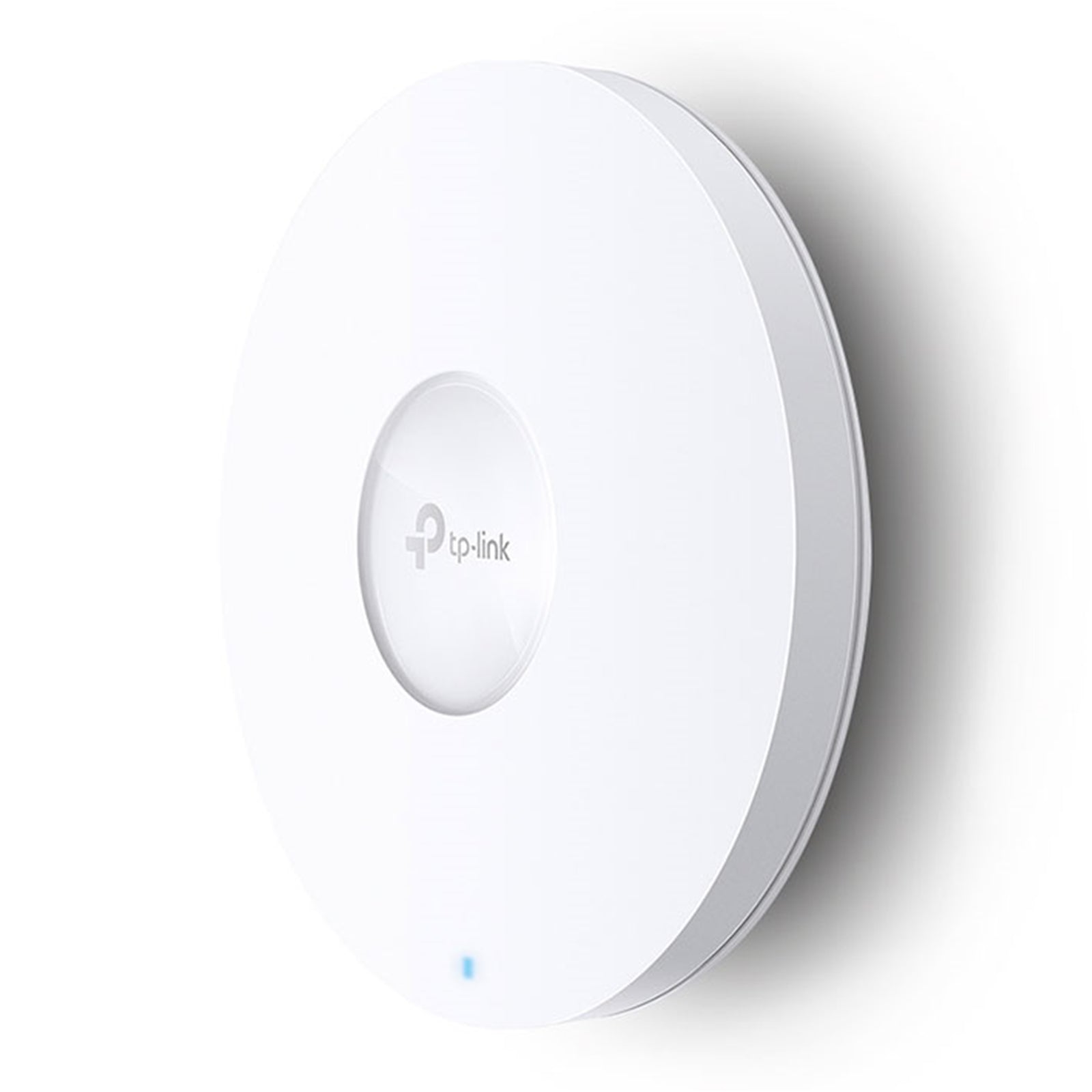

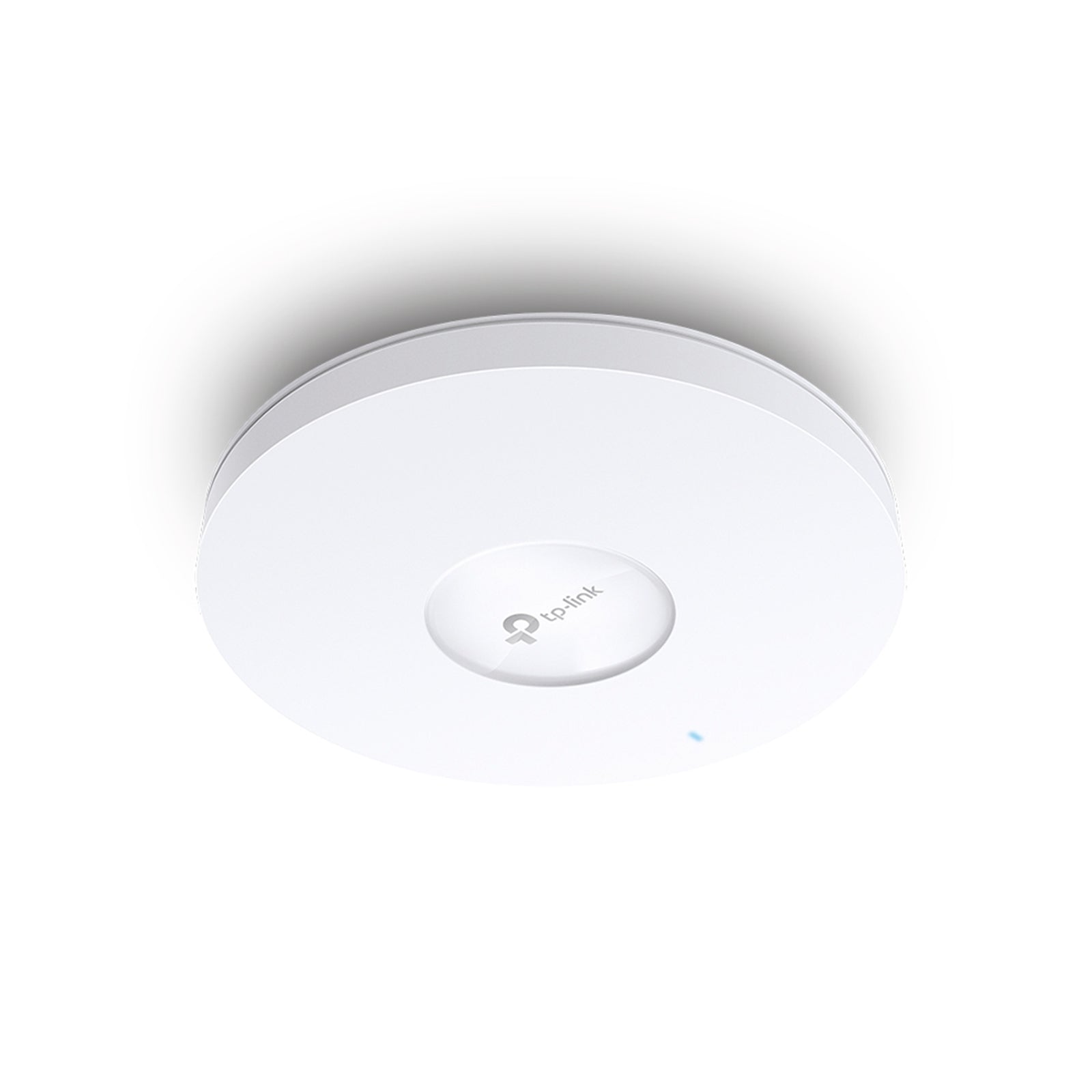

TP-Link Omada EAP650 AX3000 Ceiling Mount WiFi 6 Access Point

AX3000 Ceiling Mount WiFi 6 Access Point

Ultra-Fast WiFi 6 Speeds
Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.

High-Efficiency WiFi 6
More connected devices can enjoy faster speeds.

Centralized Cloud Management
Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.

160 MHz Channel
Double the data at peak transmission times on a single stream with HE160.

Seamless Roaming
Video streams and voice calls are unaffected as users move between locations.

Omada Mesh
Enables wireless connectivity between access points for extended range and flexible deployment.

PoE+ Powered
Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.

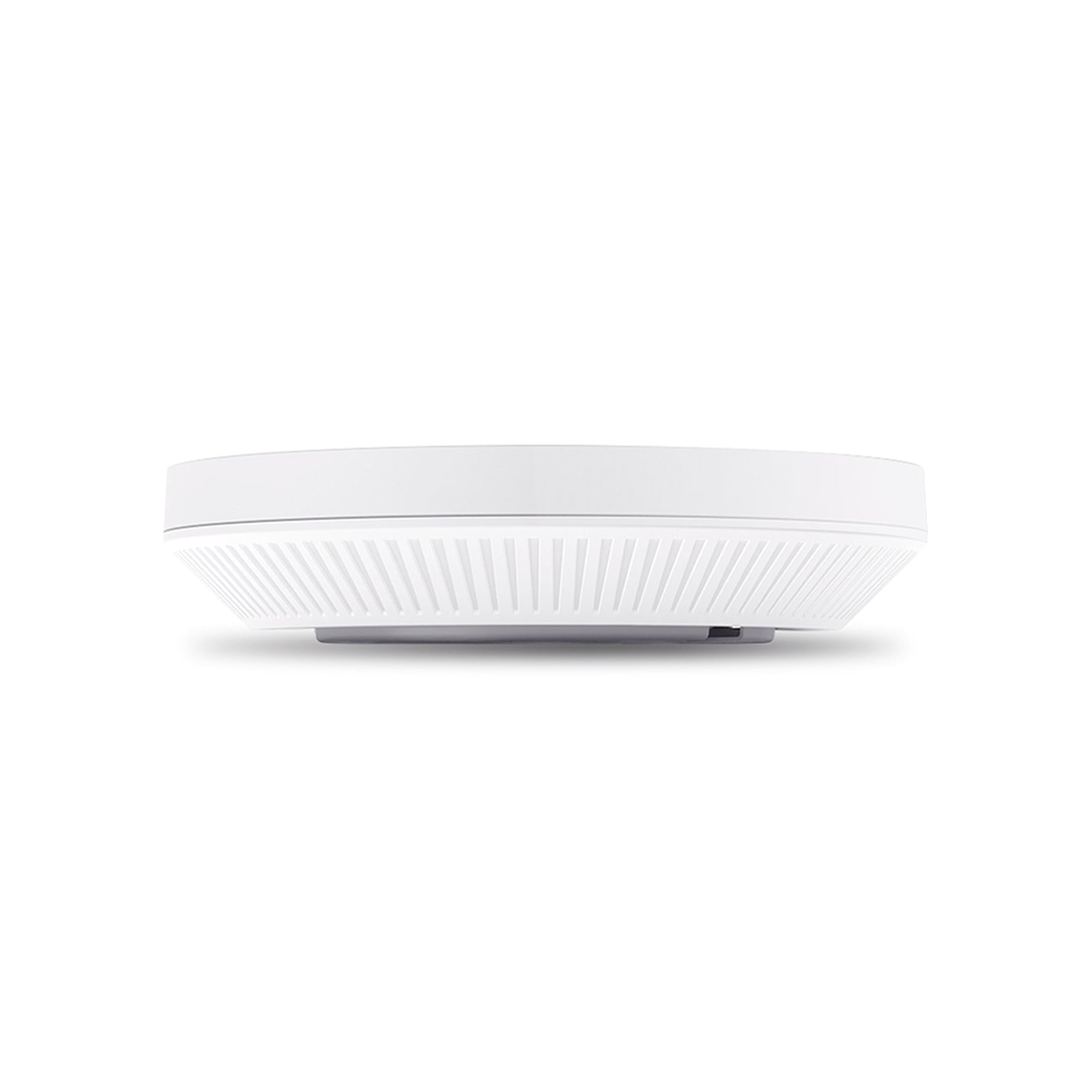

Ultra-Slim Design
160 mm x 33.6 mm elegant design brings more agility

AX3000 WiFi 6 Speed
2402 Mbps on 5 GHz
574 Mbps on 2.4 GHz

Specifications

HARDWARE FEATURES

Interface
1 x Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)

Button
Reset

Power Supply
802.3at PoE
12 V / 1.0 A DC (EU), 12 V / 1.5 A DC (US)
48V Passive PoE

Power Consumption
EU: 13.5 W
US: 14.7 W

Dimensions ( W x D x H )
6.3 x 6.3 x 1.3 in (160 x 16 x 33.6 mm)

Antenna Type
Internal Omni
2.4 GHz: 2 x 4 dBi
5 GHz: 2 x 5 dBi

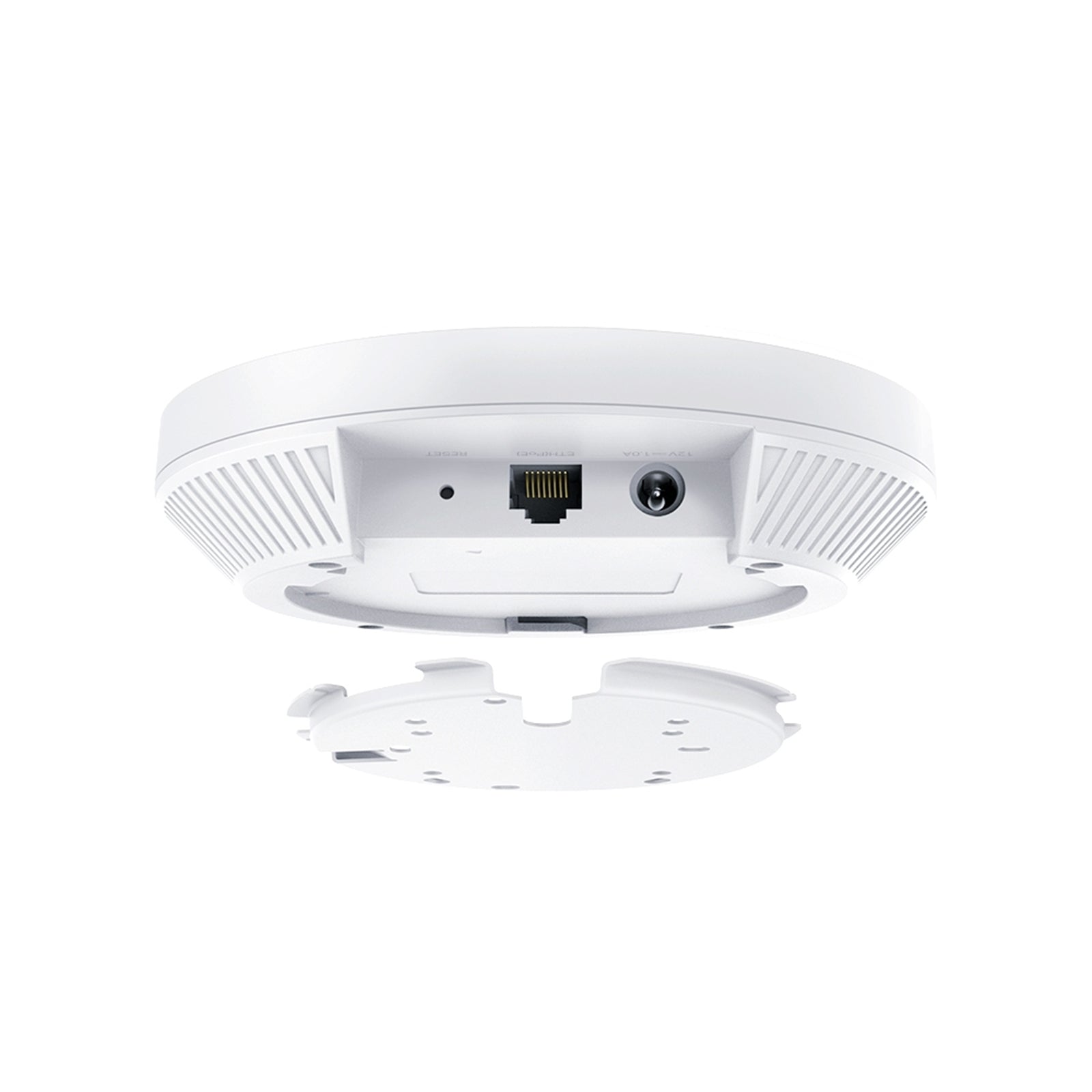

Mounting
Ceiling /Wall Mounting (Kits included)
Junction Box Mounting

WIRELESS FEATURES

Wireless Standards
IEEE 802.11ax/ac/n/g/b/a

Frequency
2.4 GHz and 5 GHz

Signal Rate
5 GHz: Up to 2402 Mbps
2.4 GHz: Up to 574 Mbps

Wireless Functions
1024-QAM
4 x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
HE160 (160 MHz Bandwidth)
Seamless Roaming
Omada Mesh
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power
CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, Band1 & Band2, EIRP)
<30 dBm(5 GHz, Band3, EIRP)

FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz)

MANAGEMENT

Omada App
Yes

Centralized Management
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Cloud-Based Controller

Cloud Access
Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller)

Email Alerts
Yes

LED ON/OFF Control
Yes

Management MAC Access Control
Yes

SNMP
v1, v2c, v3

System Logging Local/Remote Syslog
Local/Remote Syslog

SSH
Yes

Web-based Management
HTTP/HTTPS

L3 Management
Yes

Multi-site Management
Yes

Management VLAN
Yes

Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS

Certification
CE, FCC, RoHS

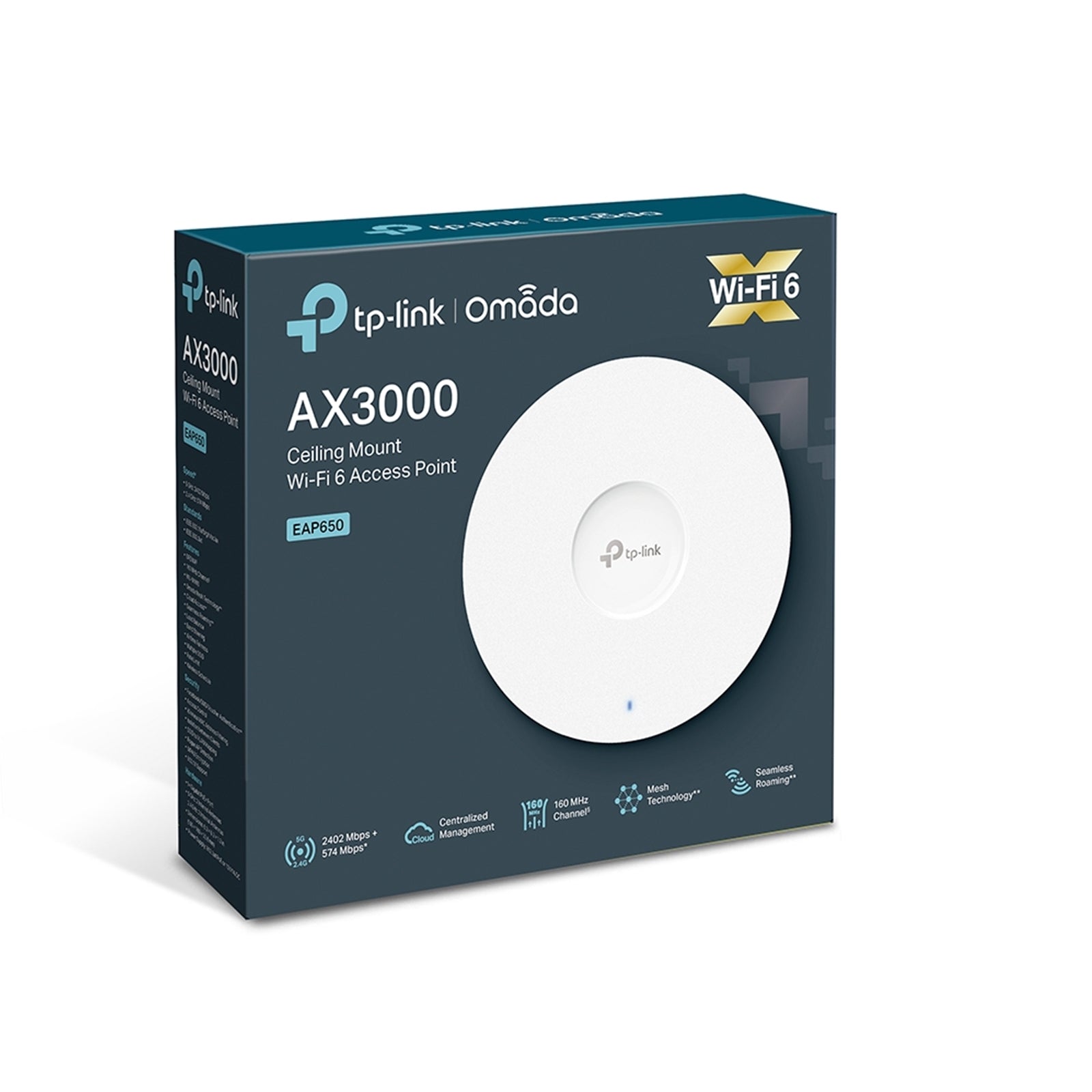

Package Contents
EAP650
Power Adapter
Ceiling/Wall Mounting Kits
Installation Guide

System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux

Environment
Operating Temperature: 0–40 C (32–104 F)
Storage Temperature: -40–70 C (-40–158 F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
