TP-Link Omada EAP235-Wall AC1200 Wireless MU-MIMO Gigabit Wall Access Point

TP-Link Omada EAP235-Wall AC1200 Wireless MU-MIMO Gigabit Access Point, Wall Plate Mountable

Key Features
Fast Dual-Band Wi-Fi Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.
Four Gigabit Ports 4 Gigabit Ethernet ports (1x uplink + 3x downlink), with one downlink port supporting PoE pass-through to provide power for wired device.
Integrated into Omada SDN Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management Cloud access and Omada app for ultra convenience and easy management.
Elegant Appearance Ultra slimmest and conspicuous design blends into hotel rooms, hospitals, offices, dormitories and any other environments.
Easy Installation and PoE Support Easy-mount construction, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.
Secure Guest Network Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Advanced Wireless Tech Optimize network performance with MU-MIMO, Band Steering, and Beamforming technologies.

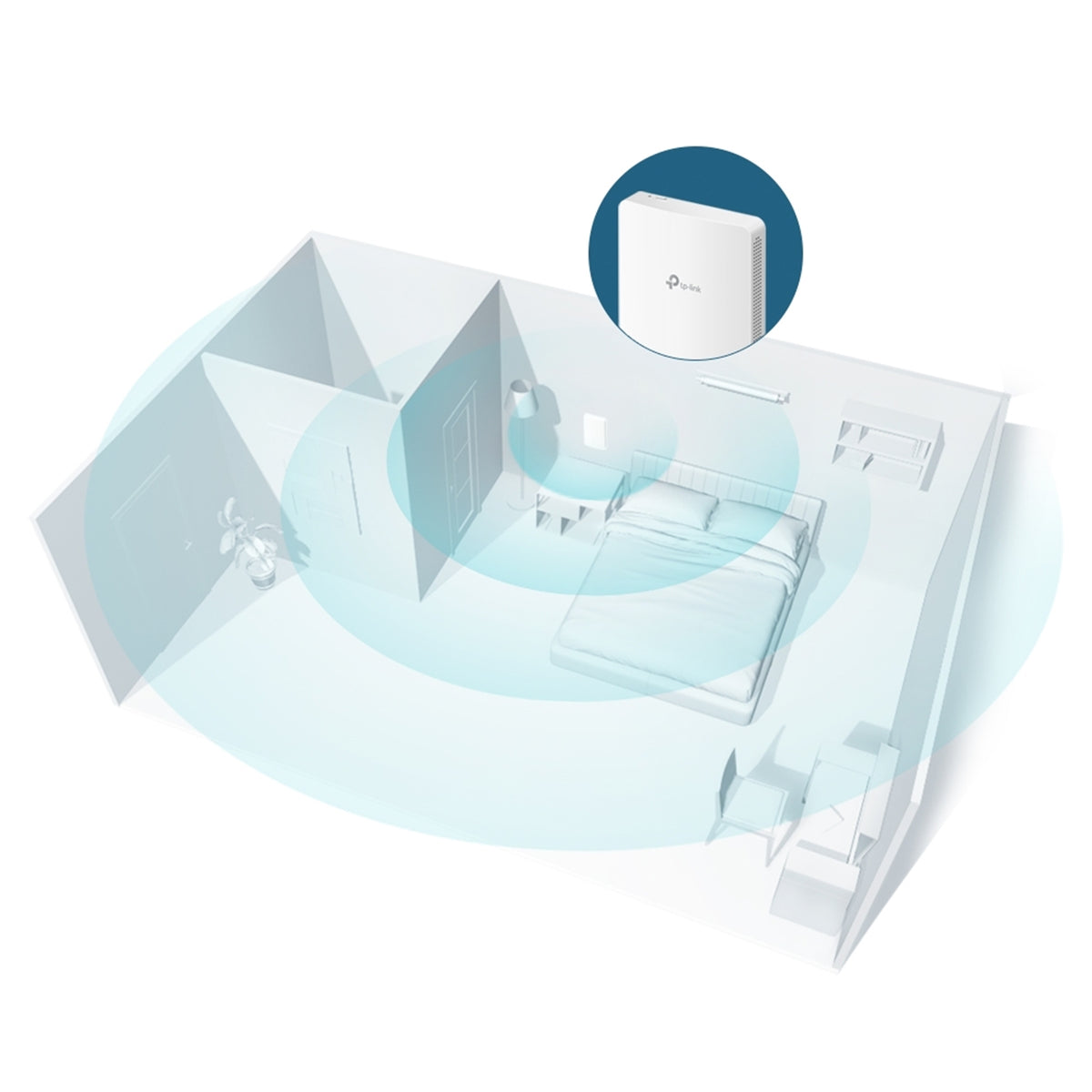

Dedicated Complete, Private Wi-Fi Network in Each Room
An EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.

Absolute Thinnest, Inconspicuous Design
The thinnest wall plate AP available—only 15 mm—featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.

Effortless Deployment with PoE Powered
With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.

Quick, Simplified Installation
EAP235-Wall is easy to install, so extra cost, time, or professional knowledge are completely unnecessary.

Full Gigabit Ports to Bridge Network
Equipped with four Gigabit data ports (1 x uplink + 3 x downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.

Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Hassle-Free Centralized Cloud Management
100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.

Specifications

Interface
Uplink: 1x 10/100/1000 Mbps Ethernet Port
Downlink: 3x 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13 W.)

Physical Security Lock
Yes

Button
Reset

Power Supply
802.3af/802.3at PoE

Power Consumption
9.8 watts /24.4 watts (PoE Out Included)

Dimensions ( W x D x H )
143 x 86 x 20 mm (5.6 x 3.4 x 0.8 in)

Dimensions
143 x 86 x 20 mm (5.6 x 3.4 x 0.8 in)

Antenna
2 Dual-Band Antennas
• 2.4 GHz: 2x 4 dBi
• 5 GHz: 2x 4 dBi

Mounting
Wall Plate Mounting

WIRELESS FEATURES

Wireless Standards
IEEE 802.11a/b/g/n/ac

Frequency
2.4 GHz and 5 GHz

Signal Rate
5 GHz: Up to 867 Mbps
2.4 GHz: Up to 300 Mbps

Wireless Functions
16 SSIDs (Up to 8 SSIDs on each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Band Steering
Beamforming
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Local LAN port based VLAN
Rogue AP Detection
802.1X Support
64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise

Transmission Power
CE:
=20 dBm (2.4 GHz, EIRP)
=23 dBm (5 GHz, EIRP)
FCC:
=21 dBm (2.4 GHz)
=21 dBm (5 GHz)

MANAGEMENT

Omada App
Yes

Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller

Cloud Access
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Email Alerts
Yes

LED ON/OFF Control
Yes

Management MAC Access Control
Yes

SNMP
v1,v2c

System Logging Local/Remote Syslog
Local/Remote Syslog

SSH
Yes

Web-based Management
HTTP/HTTPS

L3 Management
Yes

Multi-site Management
Yes

Management VLAN
Yes

Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS

Certification
CE, FCC, RoHS

Package Contents
Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point EAP235-Wall
Installation Guide
Mounting Screw

System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

Environment
Operating Temperature: 0–40 C (32–104 F)
Storage Temperature: -40–70 C (-40–158 F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
