TP-Link Omada EAP225-Outdoor AC1200 Wireless MU-MIMO Gigabit Access Point

AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point

Gigabit Wi-Fi Speeds with MU-MIMO Technology
EAP225-Outdoor supports simultaneous dual band speed of up to 1200Mbps. Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, EAP225-Outdoor can communicate with multiple clients at the same time which making it ideal for high density environment.

Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.

Detachable Antennas

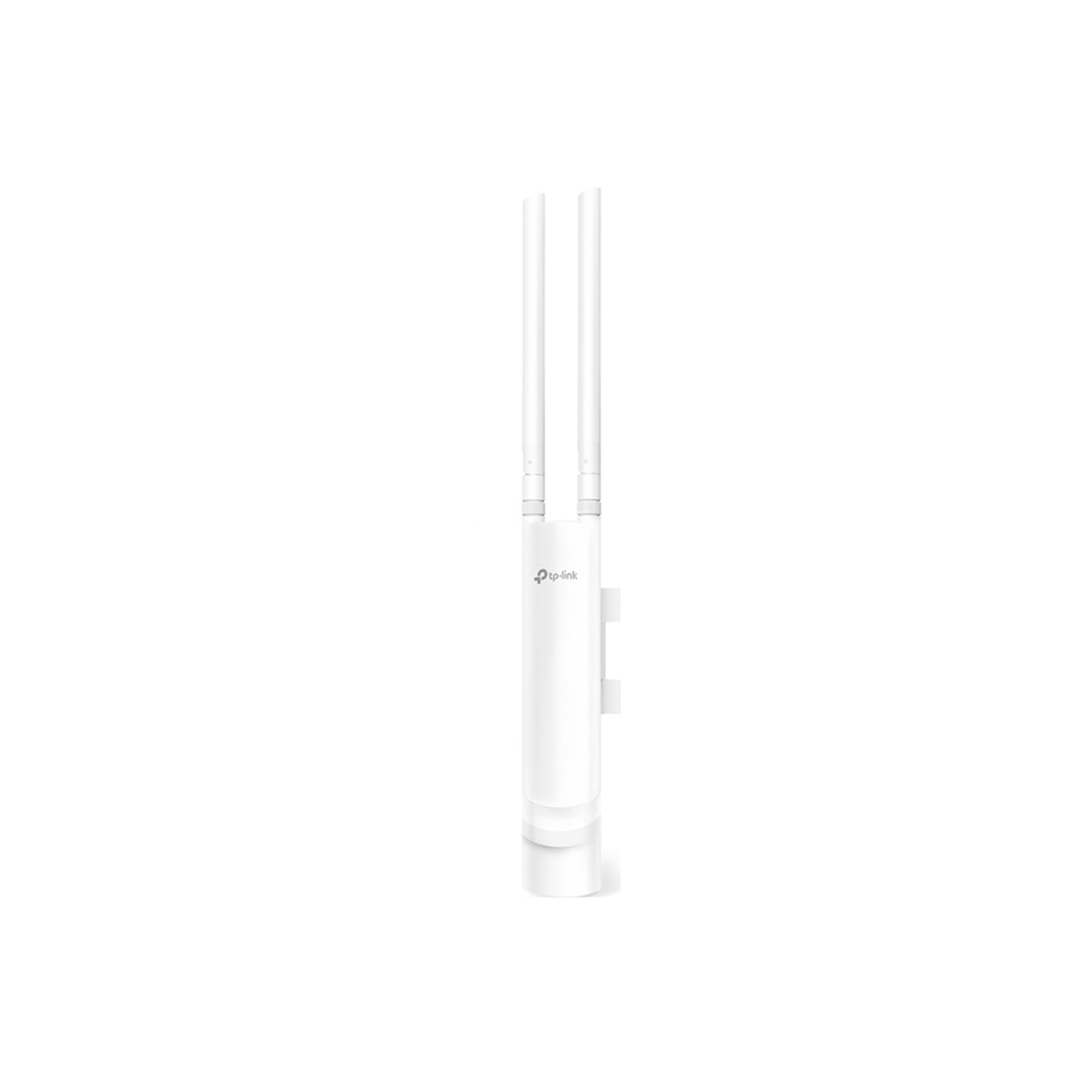

EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.

Delicate Appearance Even Better for Indoor Applications
EAP225-Outdoor is just similar to a cellphone, with dimensions: 8.5 x 1.8 x 1.1in. (215 x 46 x 27mm).

Multiple PoE Options for Easy Installation
EAP225-Outdoor supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter.

Wi-Fi That Goes the Distance
With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m+ at 2.4GHz and 300m+* at 5GHz in outdoor settings.

Specially Designed Weatherproof Enclosure for Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.


Efficient Centralised Network Management
With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location. It’s network management as it should be - efficient and intuitive.

Key Features
Durable, weatherproof enclosure for outdoor Wi-Fi applications.
Up to 1200Mbps with 2x2 MIMO technology.
Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient.
Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations.
High transmission power and high gain antennas provide a long-range coverage area.
Free cloud centralised management and Omada app for ultra convenience and easy management.
Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation.

Specifications

Model
EAP225-Outdoor

Device Type
Wireless Access Point

Compatible Internet Connections
Existing WiFi Network

Network Connectivity
10/100/1000
Wireless LAN

Wireless Speed
1200 Mbps

Wireless Protocols
IEEE 802.11a
IEEE 802.11ac
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.3af PoE

Wireless Band
Dual Band

Frequency
2.4 GHz
5 GHz

Wireless Transmitter Power
<25dBm

Antenna
2.4GHz: 2 * 3dBi, 5GHz: 2 * 4dBi

Max. Power Consumption
10.5 W

Security Protocols
Captive Portal Authentication
Rogue AP Detection
SSID to VLAN Mapping
Wireless Isolation Between Clients
Wireless Mac Address Filtering
