Mercusys MS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+

Mercusys MS105GP 5-Port Gigabit Desktop Switch

Full Gigabit Ports
5x 10/100/1000 Mbps RJ45 ports

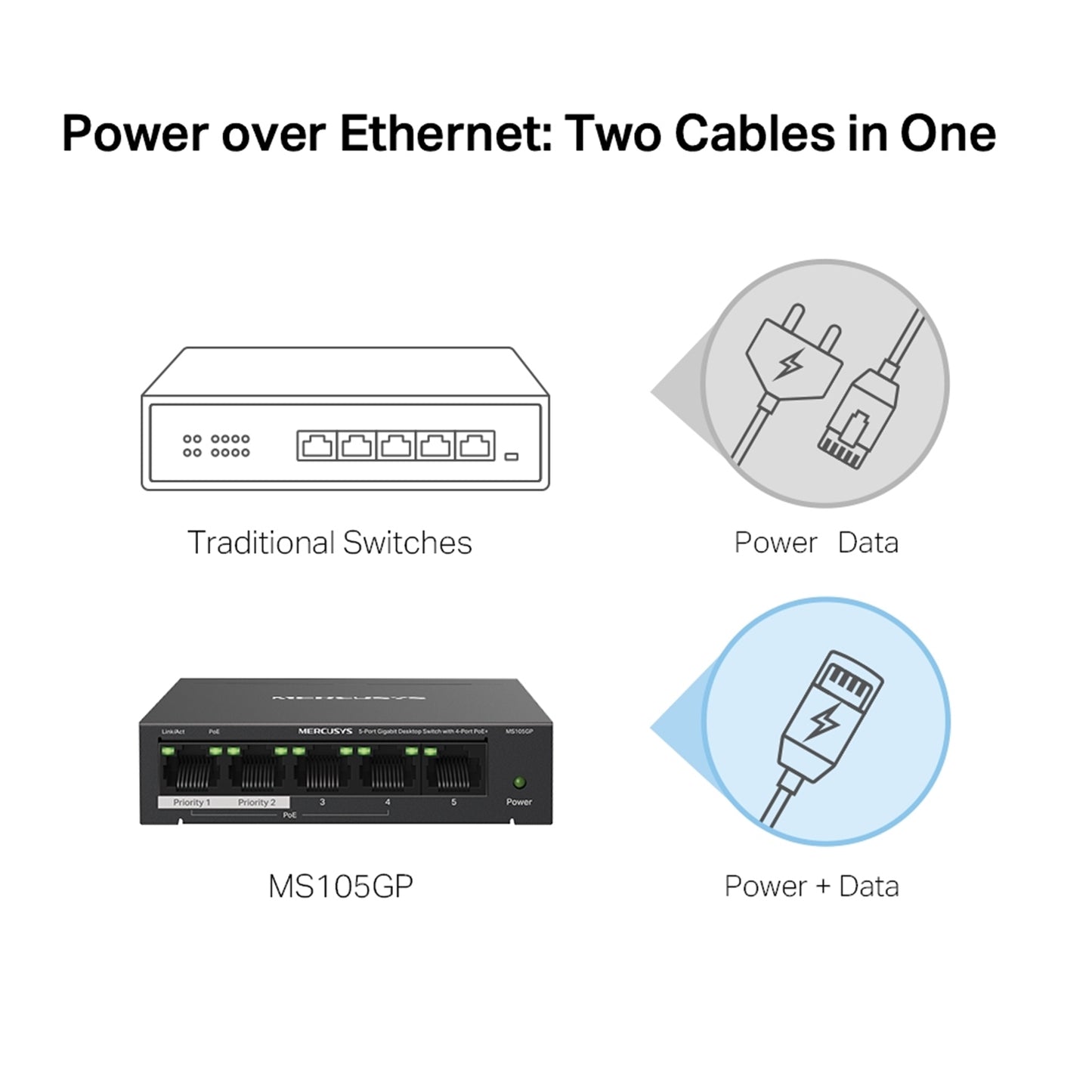

Two Cables in One
With four PoE ports, transfers data and power on one single cable

High Power PoE
Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports

Long-Range up to 250 m
Increases PoE transmission distance to 250 m by Extend Mode

Isolation Mode
One click to divide traffic for specific ports for stability and security

Compliant with Powered Devices
Works with IEEE 802.3af/at compliant PDs

Durable Metal Casing
Allows for efficient heat dissipation and long network life

Plug and Play
Simple to use and saves time and effort

Specifications

Hardware

Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD

Dimensions
99.8*98*25mm

PoE Ports
RJ45

Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 4
PoE Power Budget: 65 W

Interfaces
5x 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX

External Power Supply
External Power Adapter (Output: 53.5V/1.31A)

Installation
Desktop
Wall Mount

Data Rates
10/100/1000 Mbps at Half Duplex
20/200/2000 Mbps at Full Duplex

Jumbo Frame
9 KB

LED
Ethernet Ports (1, 2, 3, 4, 5), Power

MAC Address Table
2K

Max Power Consumption
3.13W(220 V / 50 Hz, no PD connected)
75.15W(220 V / 50 Hz, with 65W PD connected)

Max Heat Dissipation
10.64 BTH/h (no PD connected)
255.51 BTH/h(with 65W PD connected)

Software
Transfer Method
Store and Forward

Management
Plug and Play

Advanced Features
802.3x Flow Control
IGMP Snooping V1/V2/V3
Isolation Mode
Extend Mode

Others
Package Contents
5-Port Gigabit Desktop Switch with 4-Port PoE(MS105GP)
Power Adapter
Quick Installation Guide

Environment
Operating Temperature: 0C-40C (32F-104F)
Storage Temperature: -40C-70C (-40F-158F)
Operating Humidity: 10%-90% RH non-condensing
Storage Humidity: 5%-95% RH non-condensing
