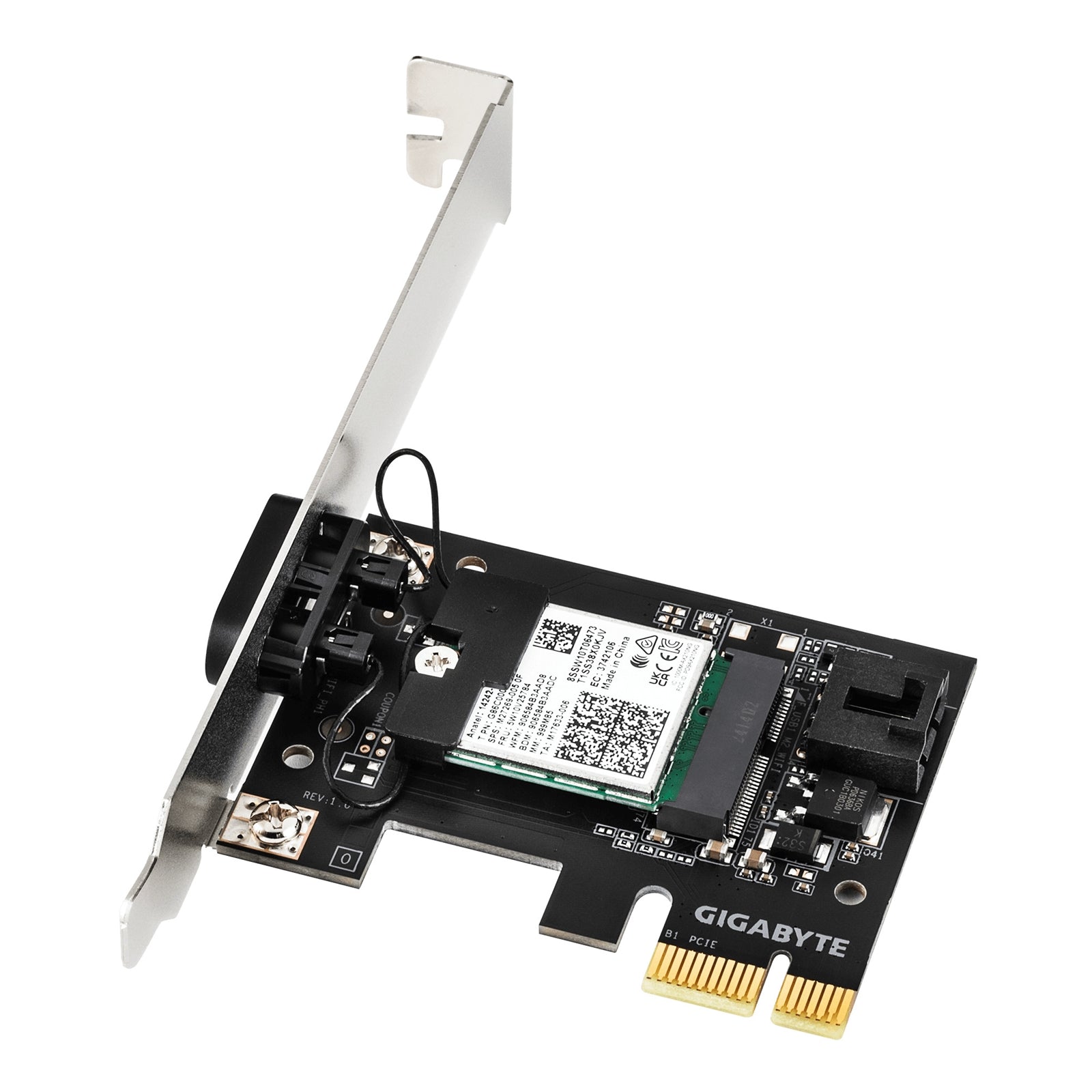

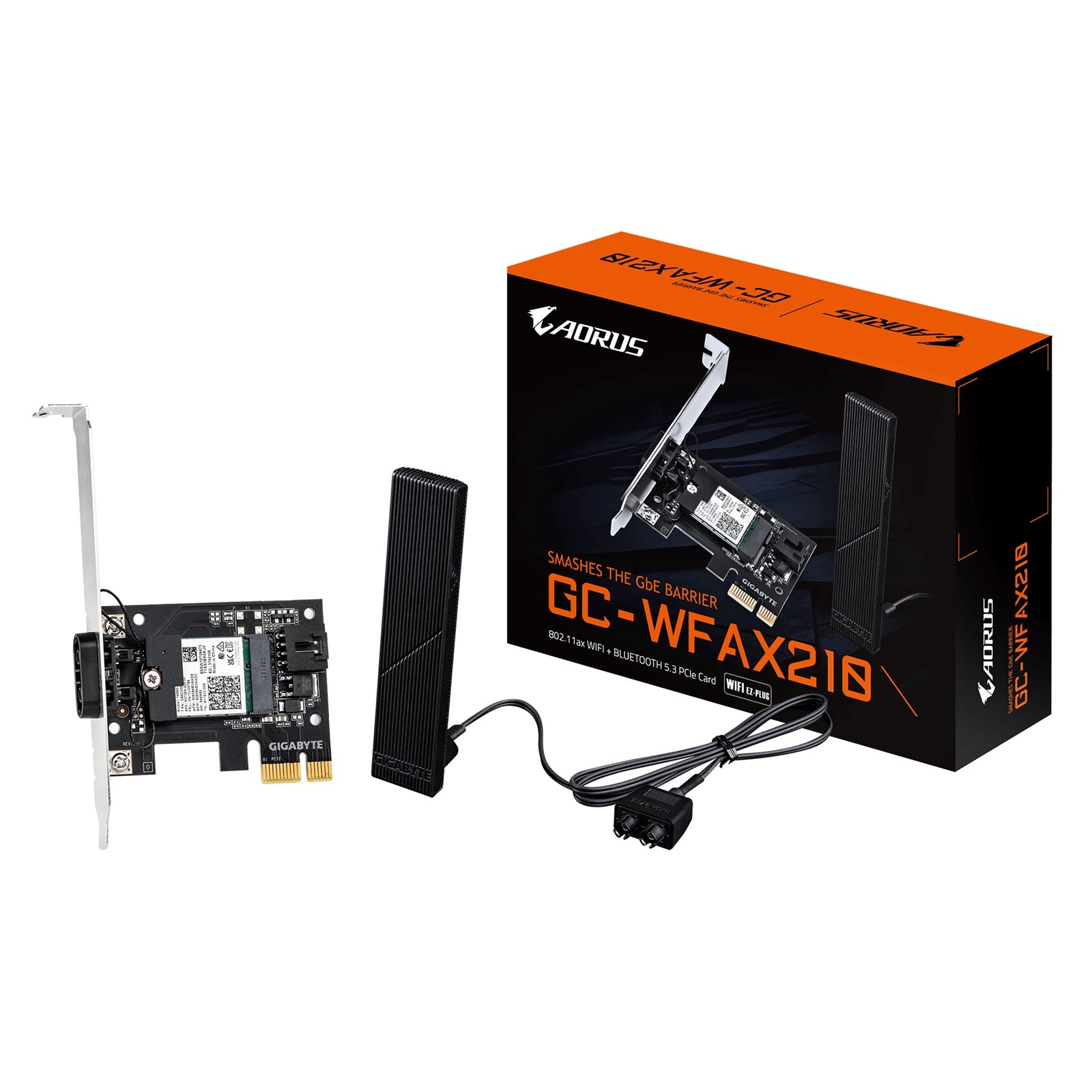

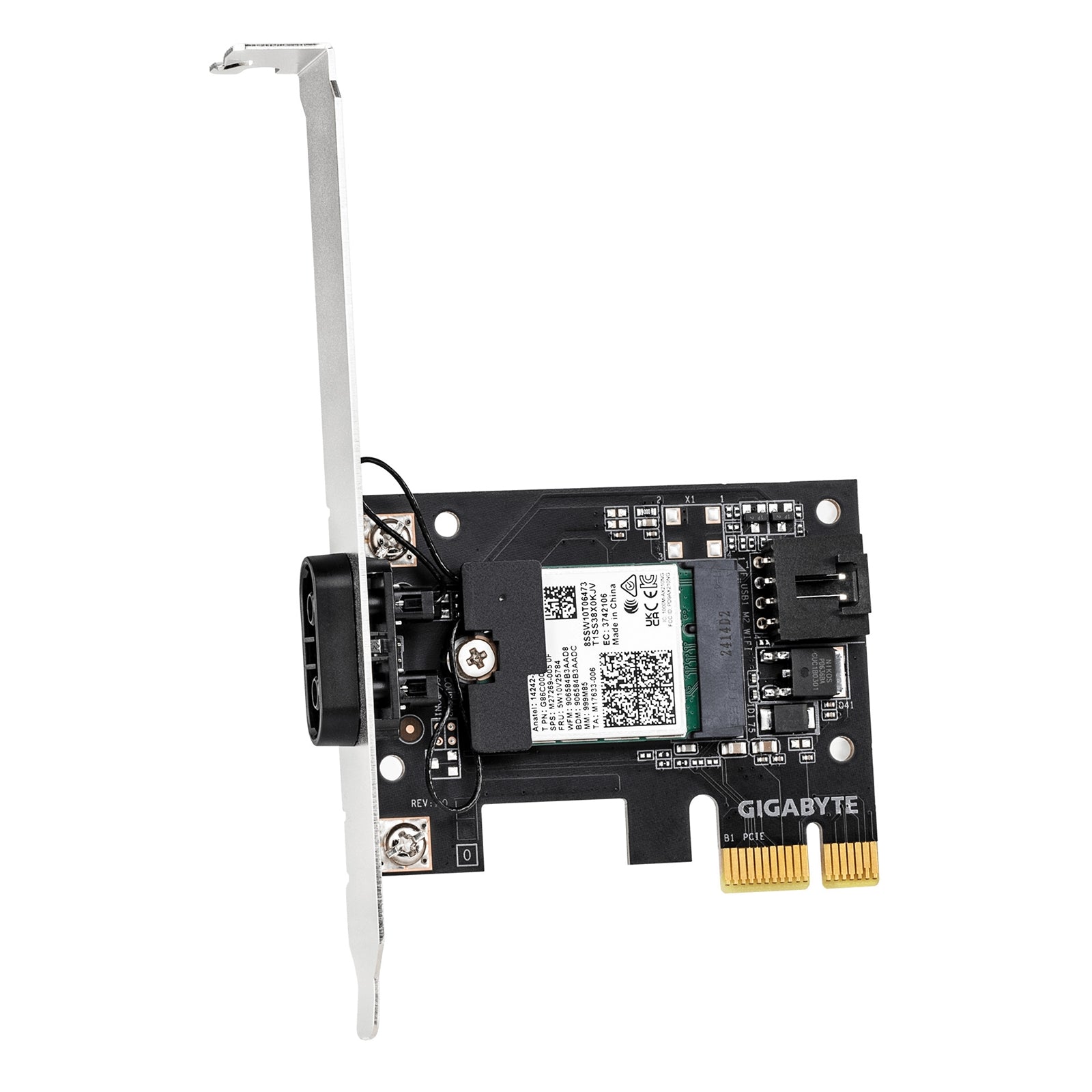

Gigabyte GC-WFAX210 PCIe Card - 802.11ax WIFI + BLUETOOTH 5.3 PCIe Card

Gigabyte Intel WI-FI 6E AX210 Ultra-high gain Antenna

Features
Intel WI-FI 6E AX210 module built-in
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
Dedicated spectrum in 6GHz band for maximum speed and ultra-low latencies
Support dual-stream Wireless in the 2.4GHz, 5GHz and 6GHz bands
IEEE 802.11ax compliant
High speed wireless connection up to 2400Mbps
Fully qualified BLUETOOTH 5.3
MU-MIMO TX/RX
Paired with 2Tx2R directional antenna
PCIe 4.0 x1 interface card

Smashes the GbE Barrier!
2x2 802.11ax Tri-Band WIFI + BLUETOOTH 5.3 card GC-WBAX210 is an exclusive PCIe expansion card that offers support for the latest 2x2 802.11ax 160MHz Tri-Band WIFI and BLUETOOTH 5.2 connectivity.

PCIe 4.0 Interface
GC-WFAX210 features PCIe 4.0 interface which are expected to experience twice bandwidth than PCIe 3.0 devices

WIFI EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.

Directional Ultra-high Gain Antenna
Boost your signal strength with GIGABYTE's Ultra-high gain Antenna, featuring smart antenna technology for optimized Wi-Fi signal transmission.
Direction signal - up to 5dBi
Omnidirectional signal - up to 4dBi
Magnetic Base

WIFI 6E Advantage
Spectrum congestion is huge problem in current WIFI environment nowadays because too many devices all use existing 2.4GHz and 5GHz spectrum, and it cause unreliable connection and slower speed. WIFI 6E is extended standard to WIFI 6, and it use dedicated 6GHz band that it provides not only brand new frequency to transfer data, but also spacious spectrum for future more devices. With WIFI 6E, users can enjoy faster connection and stronger signal than before.

BLUETOOTH Function
Standard : BLUETOOTH 5.3

WIFI Function

Wireless Alliance*:
Wi-Fi CERTIFIED 6*, CERTIFIED* a/b/g/n/ac WMM*, WMM*-Power Save, WPA3, PMF*, Wi-Fi Direct*, WIFI Agile Multiband.
* Support of Wi-Fi Alliance certifications is OS-dependent.

IEEE WLAN Standard:
IEEE 802.11-2016 and select amendments (selected feature coverage) IEEE 802.11a, b, d ,e ,g ,h ,I ,k , n ,r ,u ,v ,w ,ac ,ax ; Fine Timing Measurement based on 802.11-2016, Wi-Fi Location R2 (802.11az) HW readiness*
* IEEE 802.11az hardware readiness per expected Wi-Fi Location R2 feature support and based on draft 2.1 of the IEEE 802.11az amendment and is subject to change.
* Wi-Fi 6E and its 6GHz carrier frequency support may vary by country.

Security Features*:
Security Methods - WPA2* ; WPA3 *
Authentication Protocols - 802.1X EAP-TLS,EAP-TTLS/MSCHAPv2, PEAPv0 –MSCHAPv2 (EAP-SIM, EAP-AKA, EAP-AKA’)
* Some security solutions may not be supported by your device operating system and/or by your device manufacturer or may require additional hardware (e.g UICC_SIM card).Check with your device manufacturer for details on availability.
