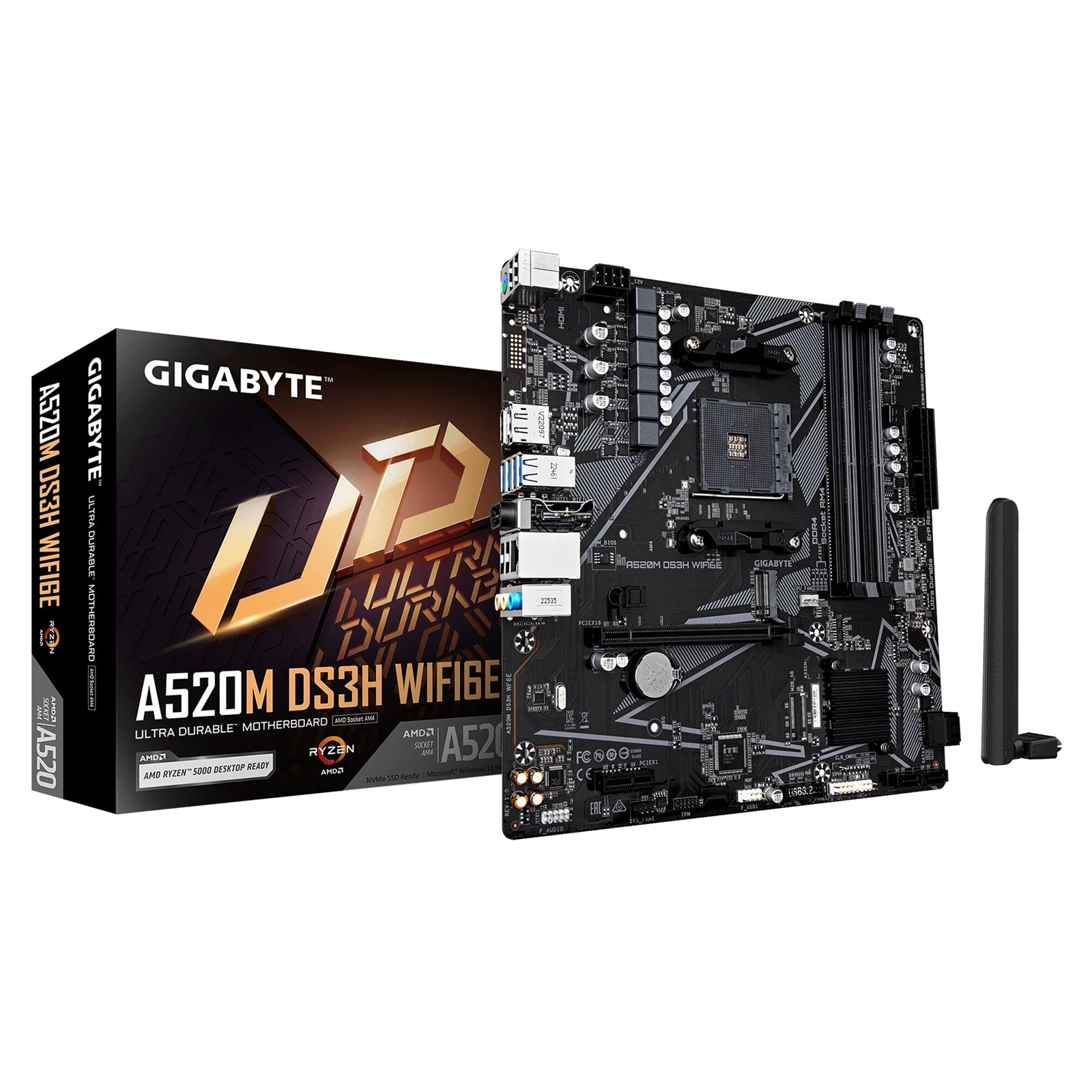

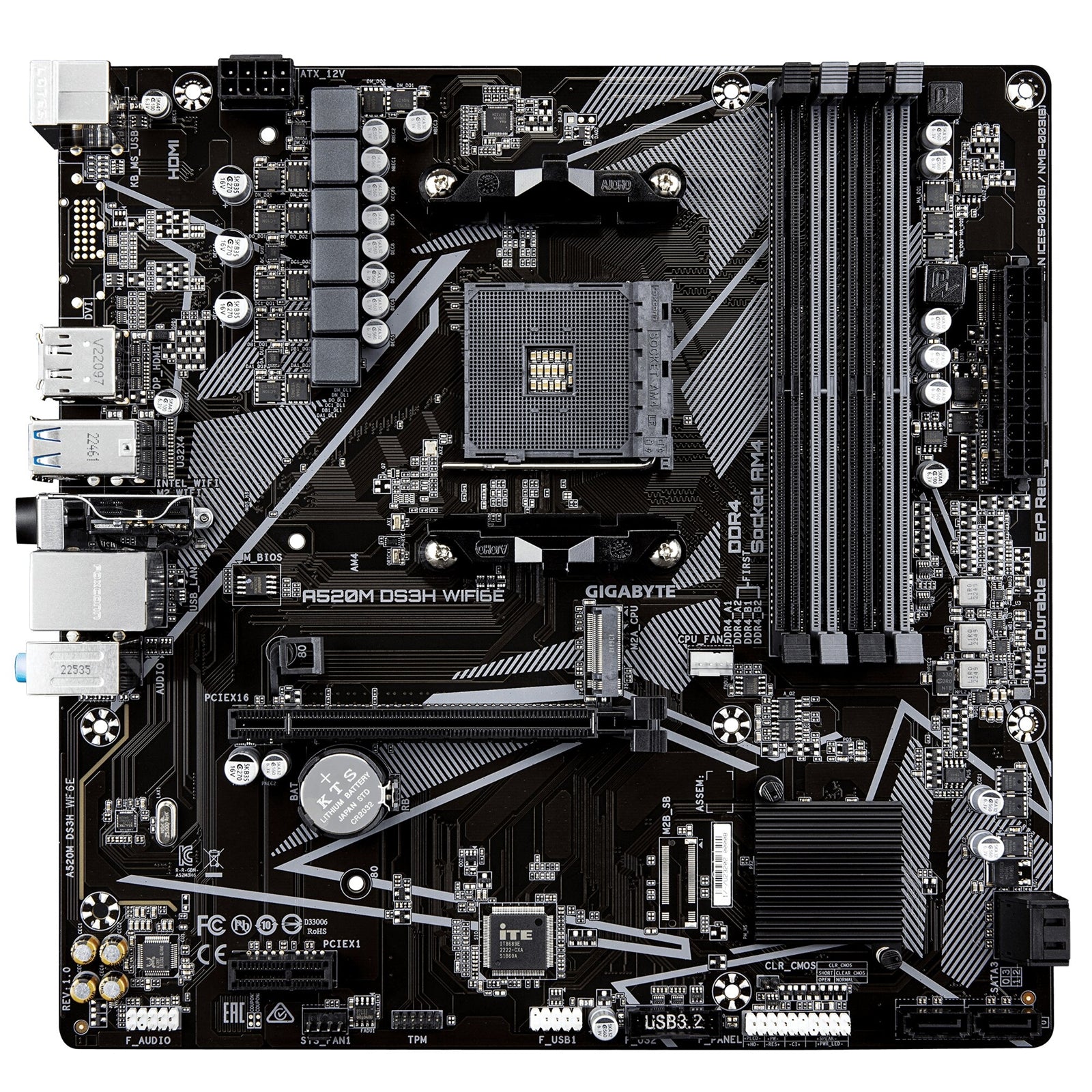

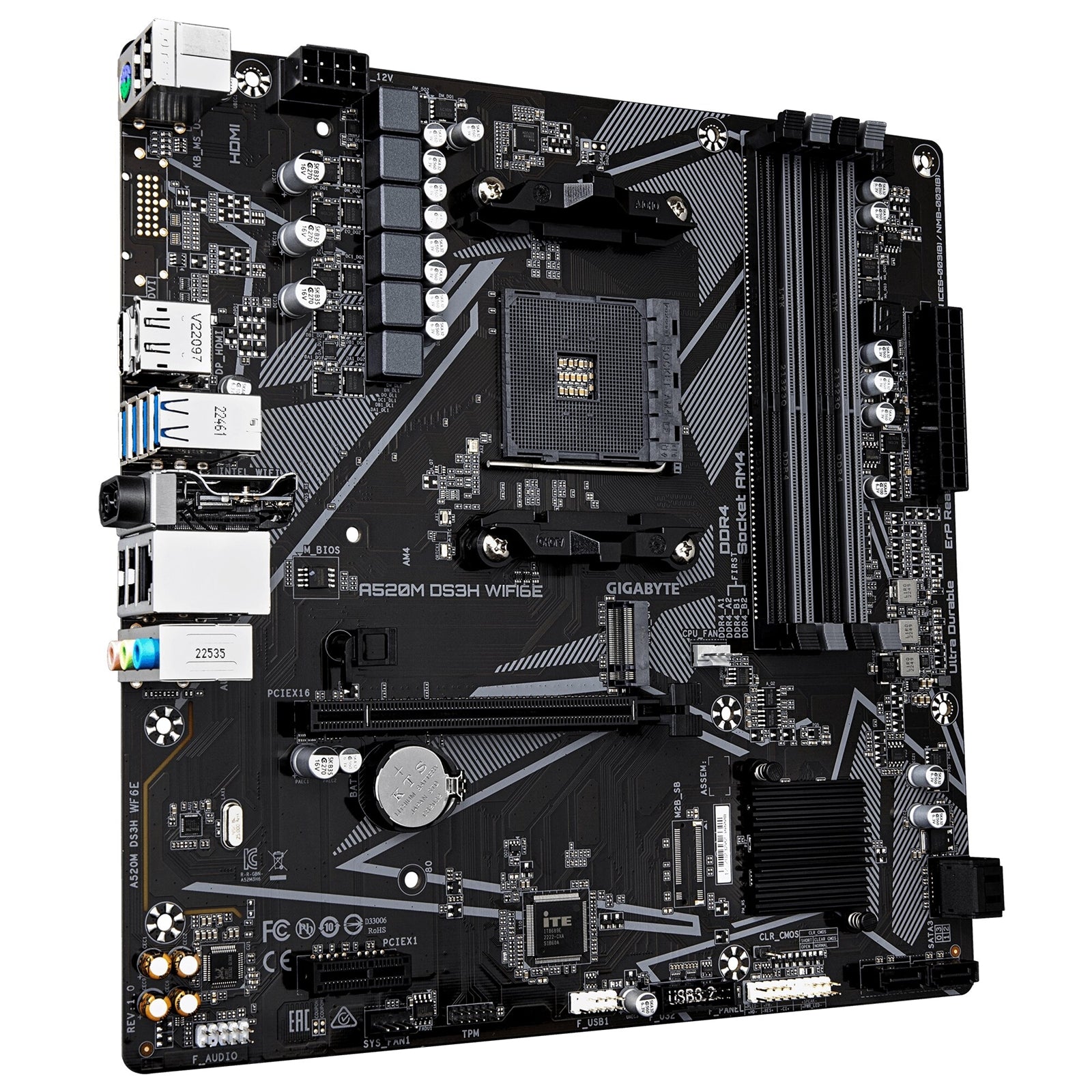

Gigabyte A520M DS3H WIFI6E AMD AM4 Socket Motherboard

A520M DS3H WIFI6E

Key Features
Supports AMD Ryzenｷ5000 Series/ Ryzenｷ5000 G-Series/ Ryzenｷ4000 G-Series and Ryzenｷ3000 and Ryzenｷ3000 G-Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
Ultra DurableｷPCIe 3.0 x16 Slot
NVMe PCIe 3.0 x4 M.2 Connectors
High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
Fast Networks: GbE LAN & Wi-Fi 6E 802.11ax
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
Rear DisplayPort and HDMI for Multi-display Support
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Anti-Sulfur Resistors Design

Specification

CPU
AMD Socket AM4, support for:
AMD Ryzenｷ5000 G-Series Processors/
AMD Ryzenｷ5000 Series Processors/
AMD Ryzenｷ4000 G-Series Processors/
AMD Ryzenｷ3000 G-Series Processors/
AMD Ryzenｷ3000 Series Processors

Chipset
AMD A520

Memory
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor with AMD RadeonｷGraphics support:
- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Audio
Realtek? Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

LAN
Realtek? GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Wireless Communication Module
MediaTek Wi-Fi 6E MT7902
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard

Expansion Slots
1 x PCI Express x16 slot, integrated in the CPU:
- Supporting PCIe 3.0 x16 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

1 x PCI Express x1 slot, integrated in the Chipset:
- Supporting PCIe 3.0 x1 mode

Storage Interface
1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
- Supporting SATA and PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
- Supporting for RAID 0, RAID 1, and RAID 10

USB
CPU:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_Smodule only)
1 x Clear CMOS jumper

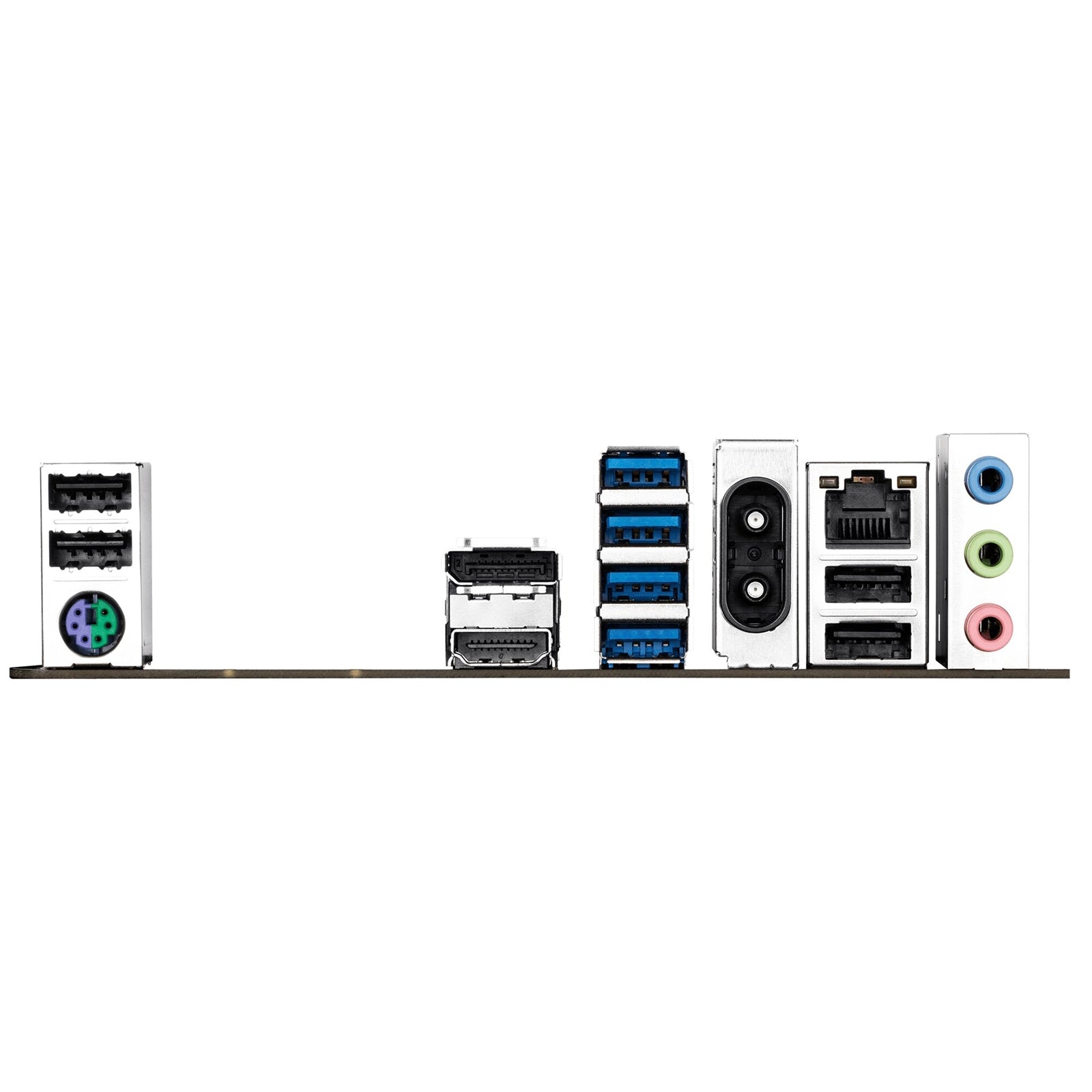

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x DisplayPort (Note )
1 x HDMI port (Note )
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
2 x antenna connectors (1T1R)

I/O Controller
iTE? I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control

BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center
- @BIOS
- EasyTune
- Smart Backup
- System Information Viewer
Support for Q-Flash

Bundled Software
Norton Internet Security (OEM version)

Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
