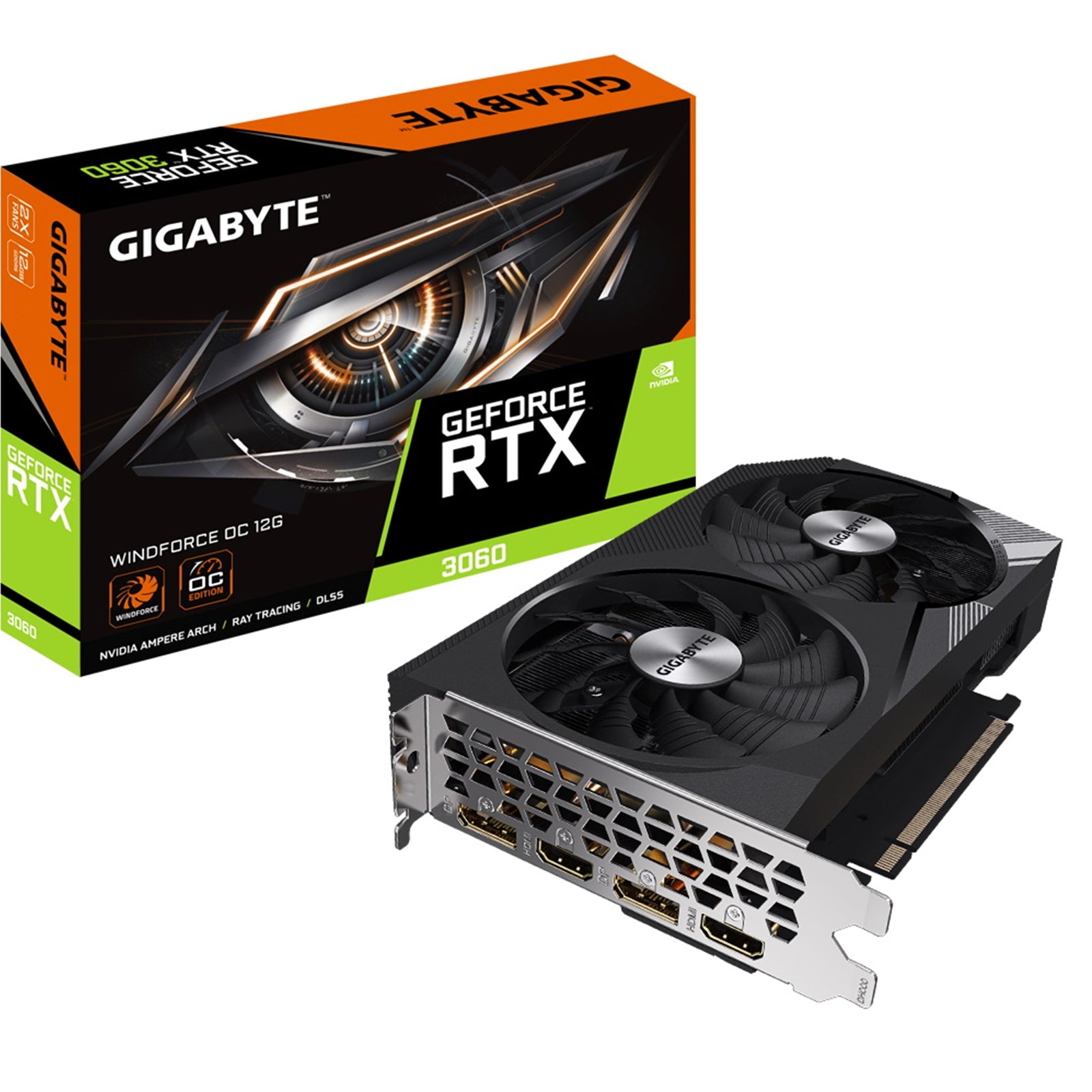

Gigabyte Nvidia GeForce RTX 3060 WINDFORCE OC 12GB LHR Dual Fan Graphics Card
Gigabyte Nvidia GeForce RTX 3060 WINDFORCE OC 12GB LHR Dual Fan Graphics Card
No reviews
Regular price
£287.90 GBP
Regular price
Sale price
£287.90 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
- Fast UK Shipping
- 14 Days Return
- Secure Payment
Couldn't load pickup availability
Share
Description
Description
NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX 3060
Integrated with 12GB GDDR6 192-bit memory interface
WINDFORCE 2X Cooling System with alternate spinning fans
Screen cooling
200 mm compact card size
Limited Hash Rate version
Core Clock
1792 MHz (Reference Card: 1777 MHz)

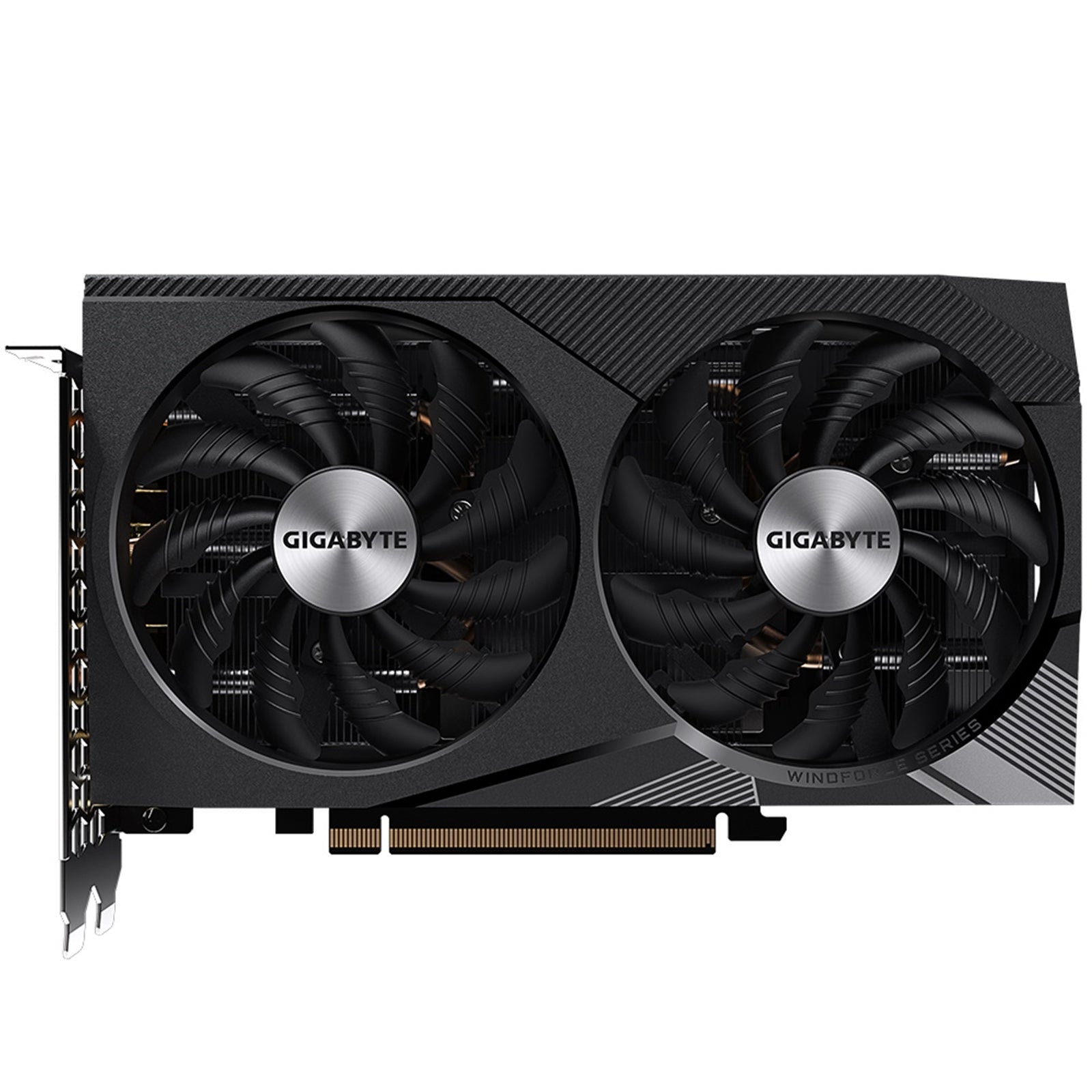

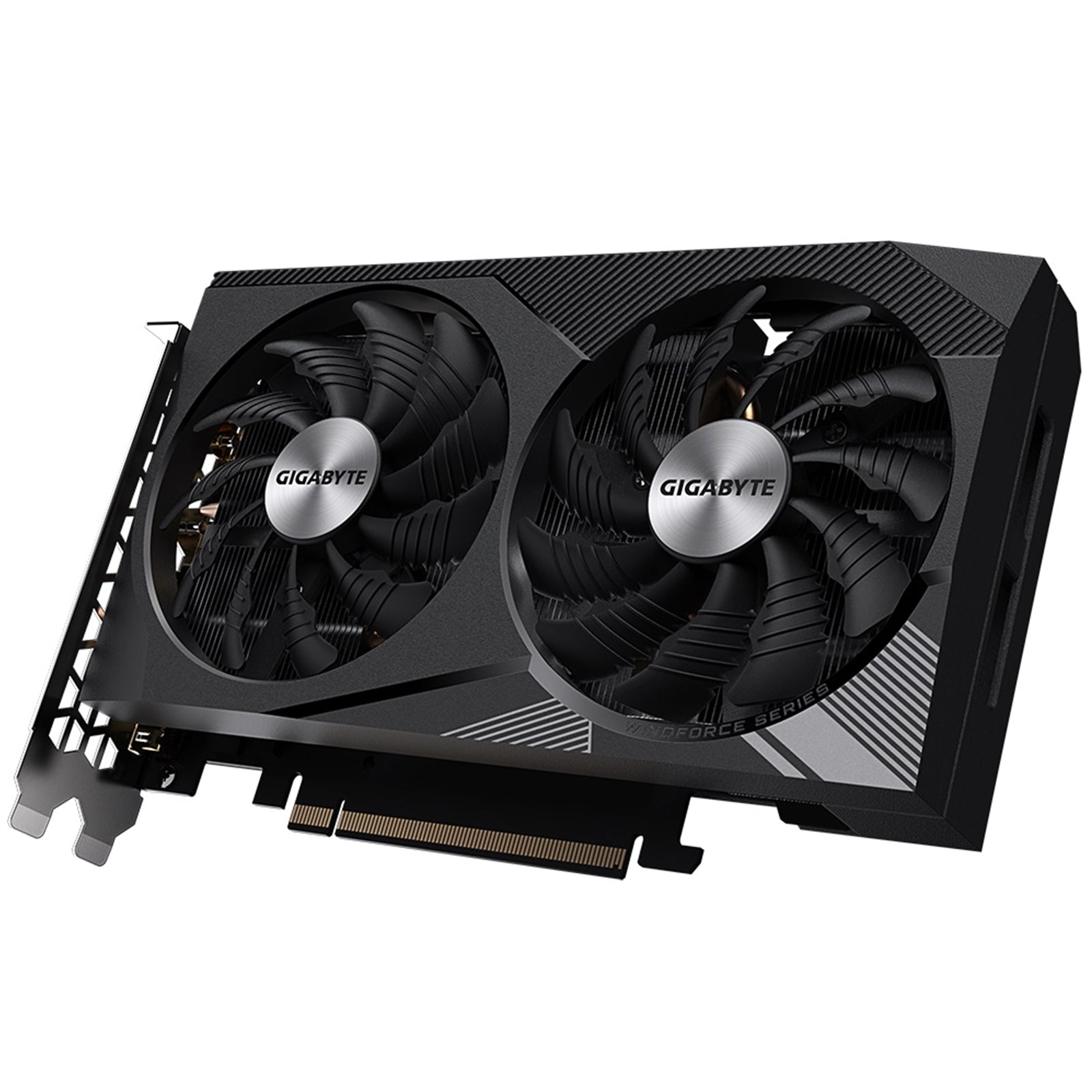

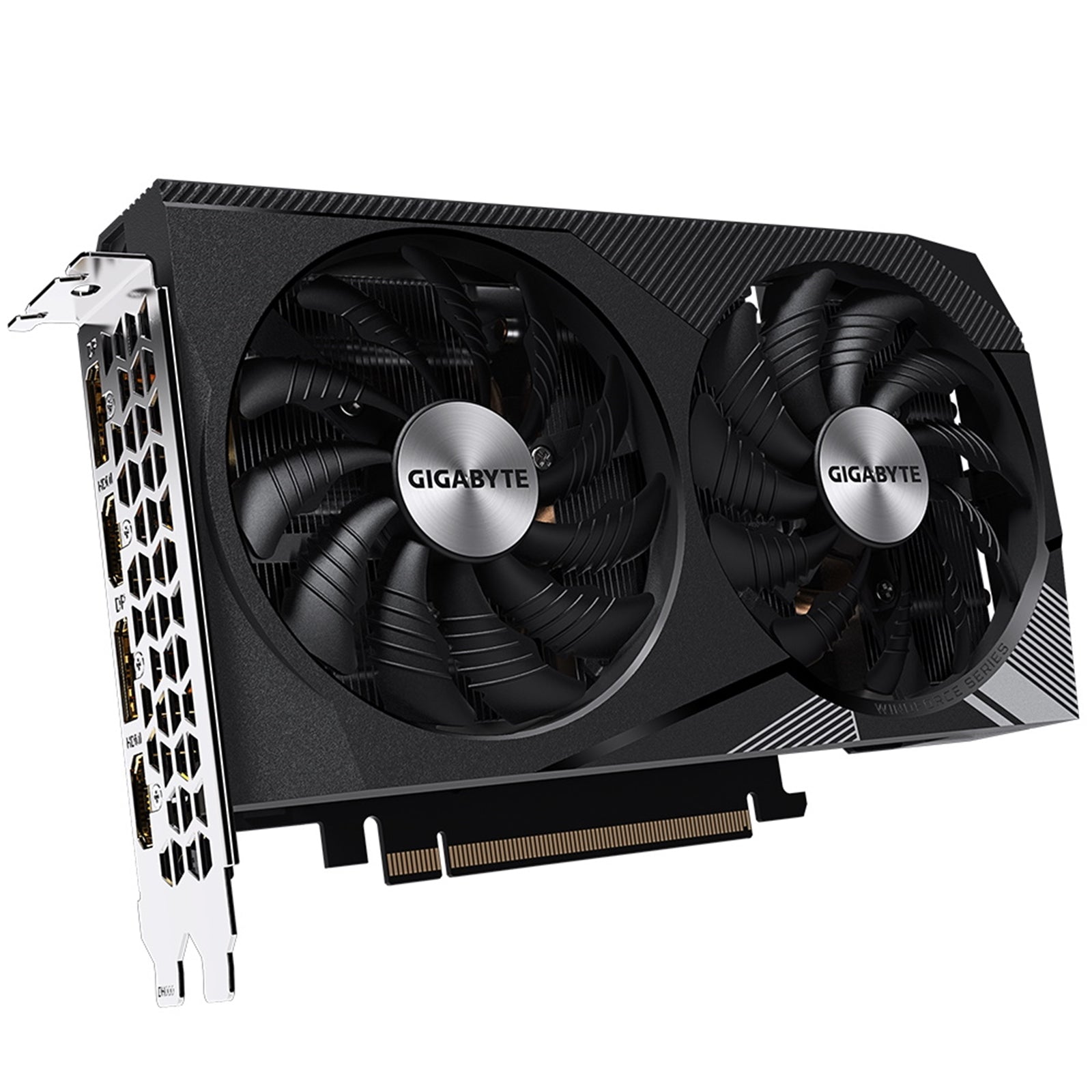

WINDFORCE 2X COOLING SYSTEM
The WINDFORCE 2X cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
TINY SIZE WITH MIGHTY PERFORMANCE
For gamers who prefer a small build with powerful performance, GIGABYTE delivers a compact graphics card with less than 200mm in length. The card provides mighty performance and is easy to install in any small chassis as well.

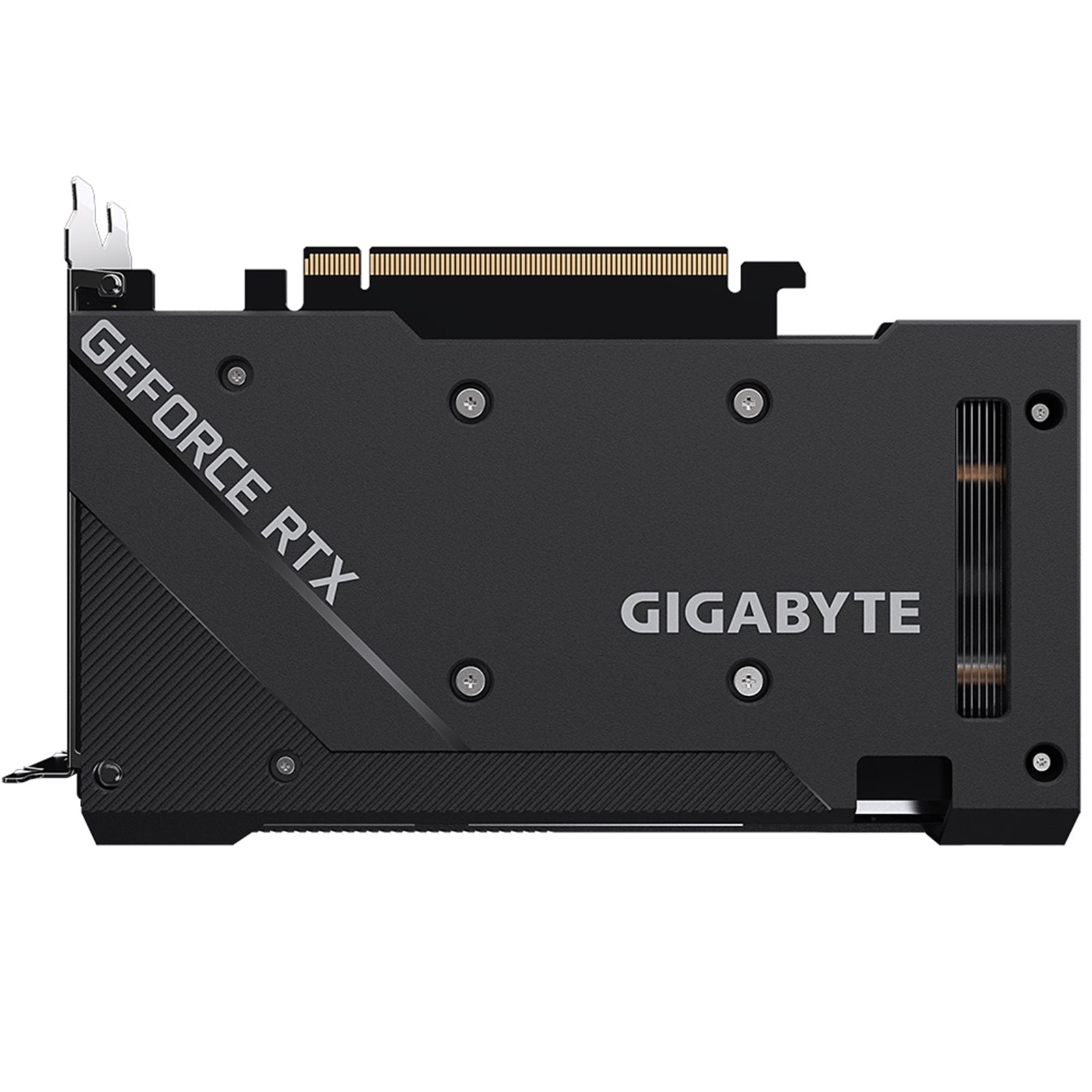

PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
EXTREME DURABILITY & OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Specification
Graphics Processing
GeForce RTX 3060
Core Clock
1792 MHz (Reference Card: 1777 MHz)
CUDA Cores
3584
Memory Clock
15000 MHz
Memory Size
12 GB
Memory Type
GDDR6
Memory Bus
192 bit
Memory Bandwidth (GB/sec)
360 GB/s
Card Bus
PCI-E 4.0 x 16
Digital Max Resolution
7680 x 4320
Multi-view
4
Card Size
L=198 W=121 H=39mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
550W
Power Connectors
8 pin x 1

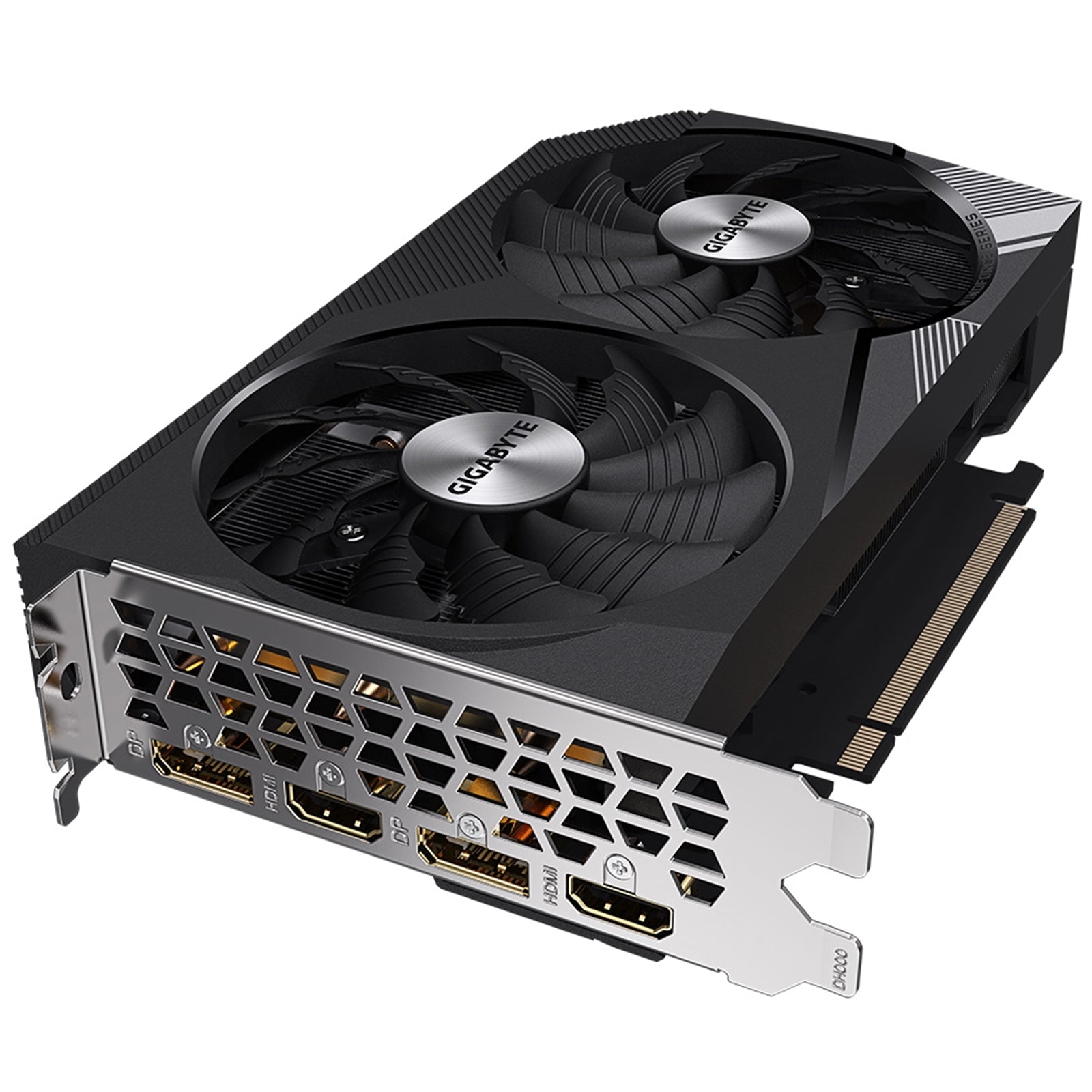

Output
DisplayPort 1.4a x 2
HDMI 2.1 x 2
SLI Support
N/A
Accessories
Quick Guide
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX 3060
Integrated with 12GB GDDR6 192-bit memory interface
WINDFORCE 2X Cooling System with alternate spinning fans
Screen cooling
200 mm compact card size
Limited Hash Rate version
Core Clock
1792 MHz (Reference Card: 1777 MHz)
WINDFORCE 2X COOLING SYSTEM
The WINDFORCE 2X cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
TINY SIZE WITH MIGHTY PERFORMANCE
For gamers who prefer a small build with powerful performance, GIGABYTE delivers a compact graphics card with less than 200mm in length. The card provides mighty performance and is easy to install in any small chassis as well.
PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
EXTREME DURABILITY & OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Specification
Graphics Processing
GeForce RTX 3060
Core Clock
1792 MHz (Reference Card: 1777 MHz)
CUDA Cores
3584
Memory Clock
15000 MHz
Memory Size
12 GB
Memory Type
GDDR6
Memory Bus
192 bit
Memory Bandwidth (GB/sec)
360 GB/s
Card Bus
PCI-E 4.0 x 16
Digital Max Resolution
7680 x 4320
Multi-view
4
Card Size
L=198 W=121 H=39mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
550W
Power Connectors
8 pin x 1
Output
DisplayPort 1.4a x 2
HDMI 2.1 x 2
SLI Support
N/A
Accessories
Quick Guide
Specifications
Specifications
- Chipset Manufacturer: Nvidia
- Chipset Series: RTX
- Chipset: RTX3060
- Form Factor: 2x ATX
- Memory: 12GB
- Fans: 2
- RGB: No
