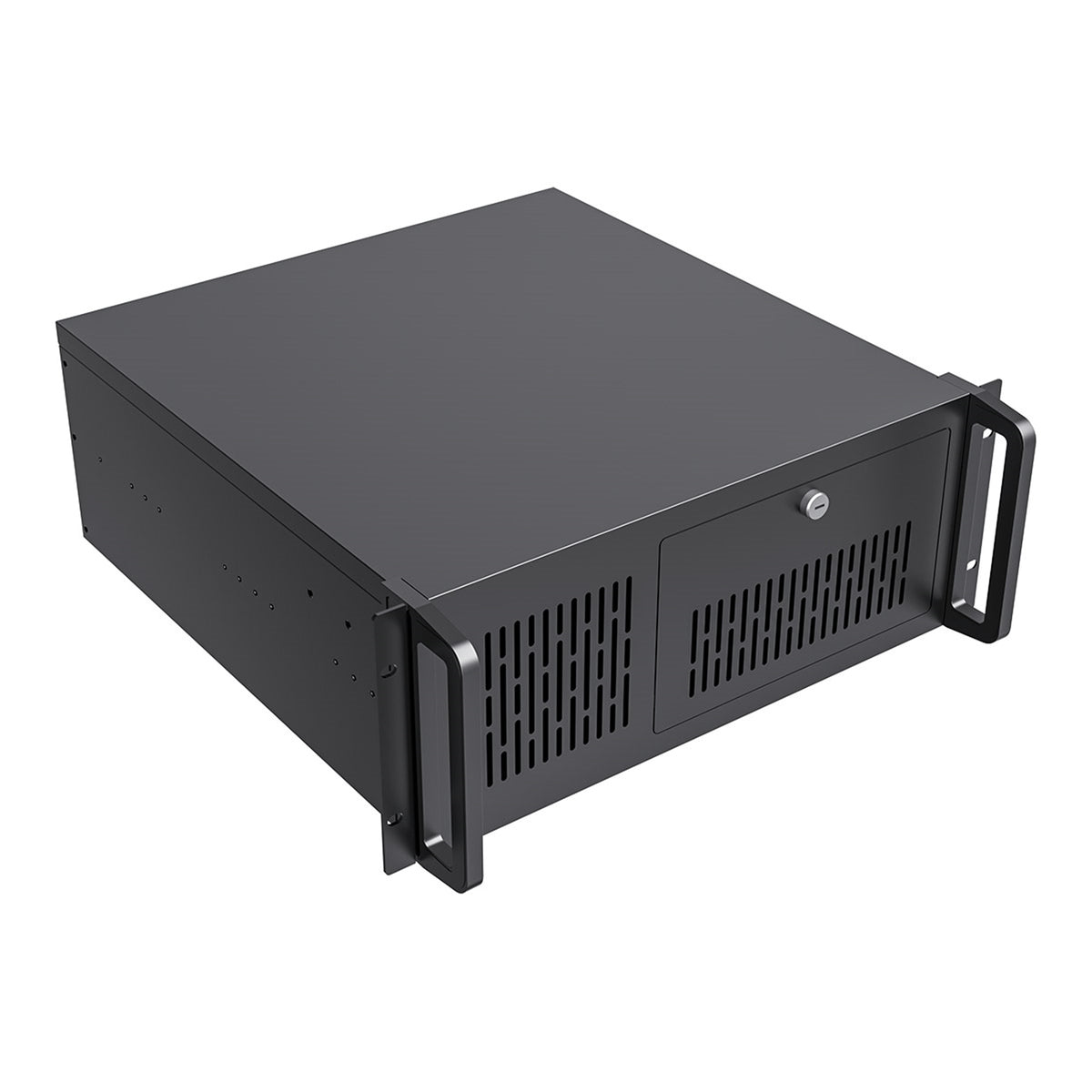

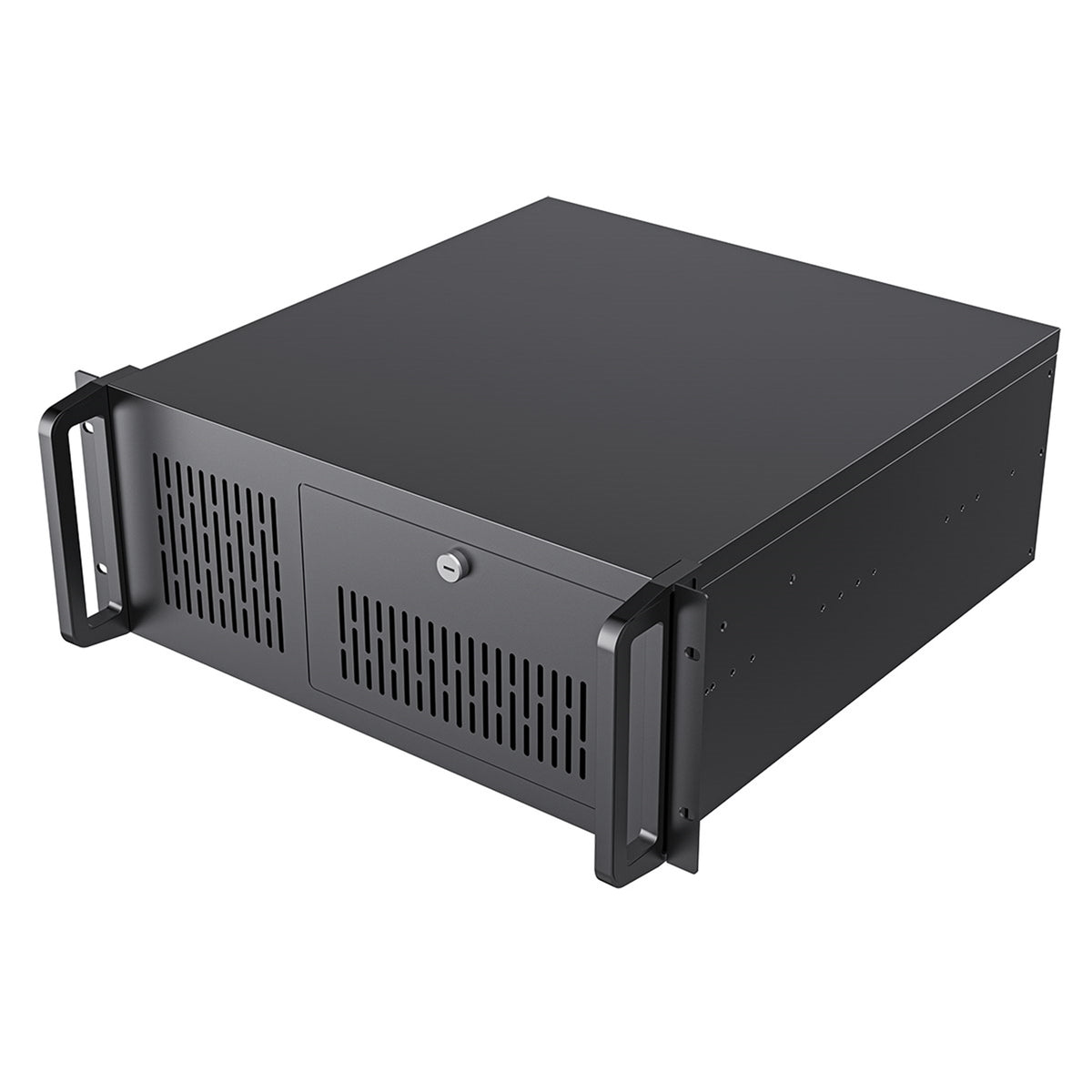

CiT 4U Rackmount Server Case 500mm, Lockable Door, Supports ATX/mATX, 8xHDD Bays

Cit 4U rackmount chassis, is a cost-effective computer chassis featuring plenty of power and storage device options. The 4U computer chassis provides the best support for various rackmount systems. A pre-installed 1 x 120mm front fan and 2 x 60mm Optional rear fans deliver an exceptional thermal performance you can rely on.

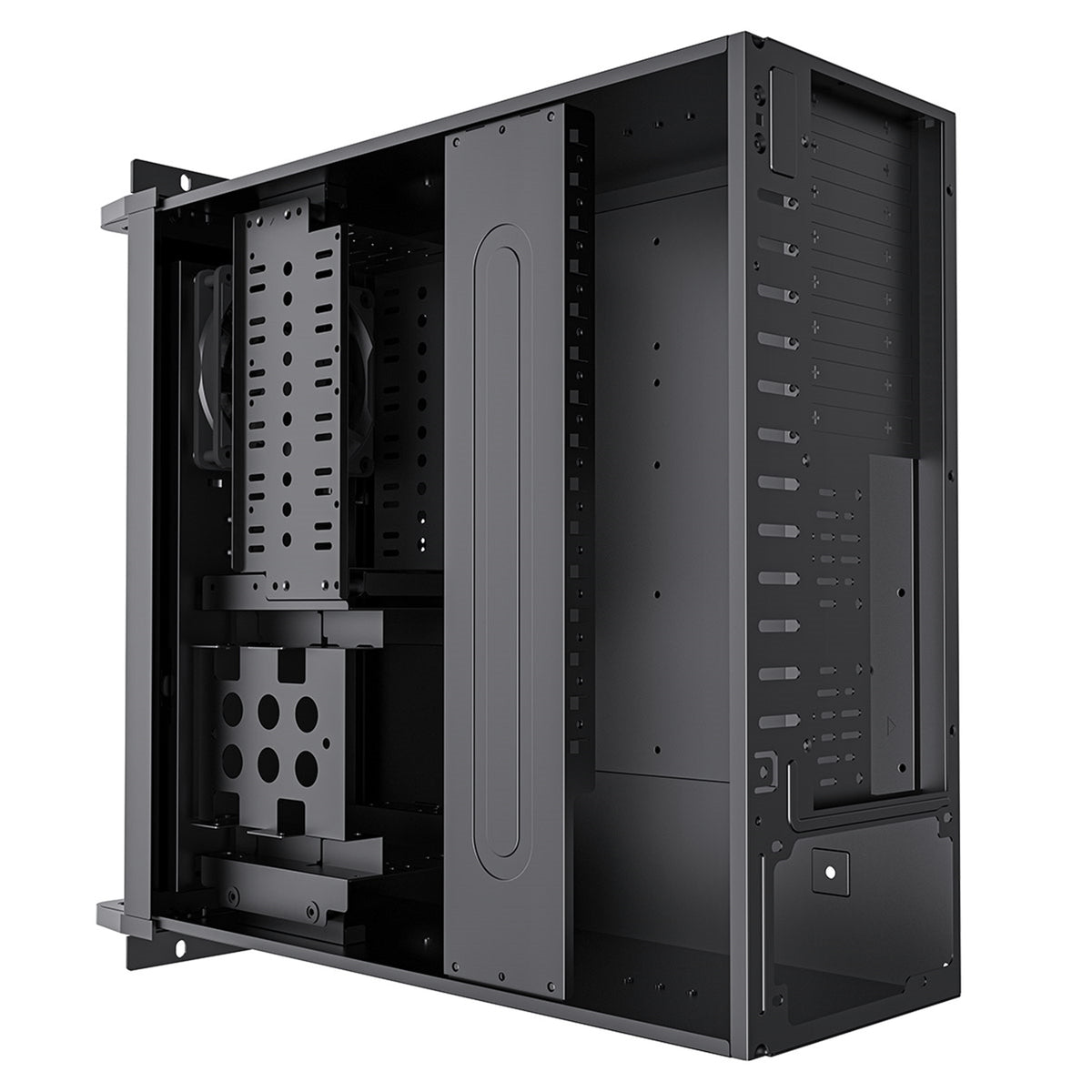

The front door with key lock delivers confident protection against unauthorised access and theft, for great peace of mind. Support up to 8 internal 3.5" HDDs, 2 x 2.52 HDD and eight expansion slots, so users can expand your server system easily. Configure or build your own custom 4U rack server starting with the chassis.


Key Features

4U Rackmount Case - 4U Rack Mount 500m Deep
Server Motherboard Support - Motherboard Support - Mini ITX, Micro ATX & ATX (up to 305mm xx245mm / 12" x 9.6")

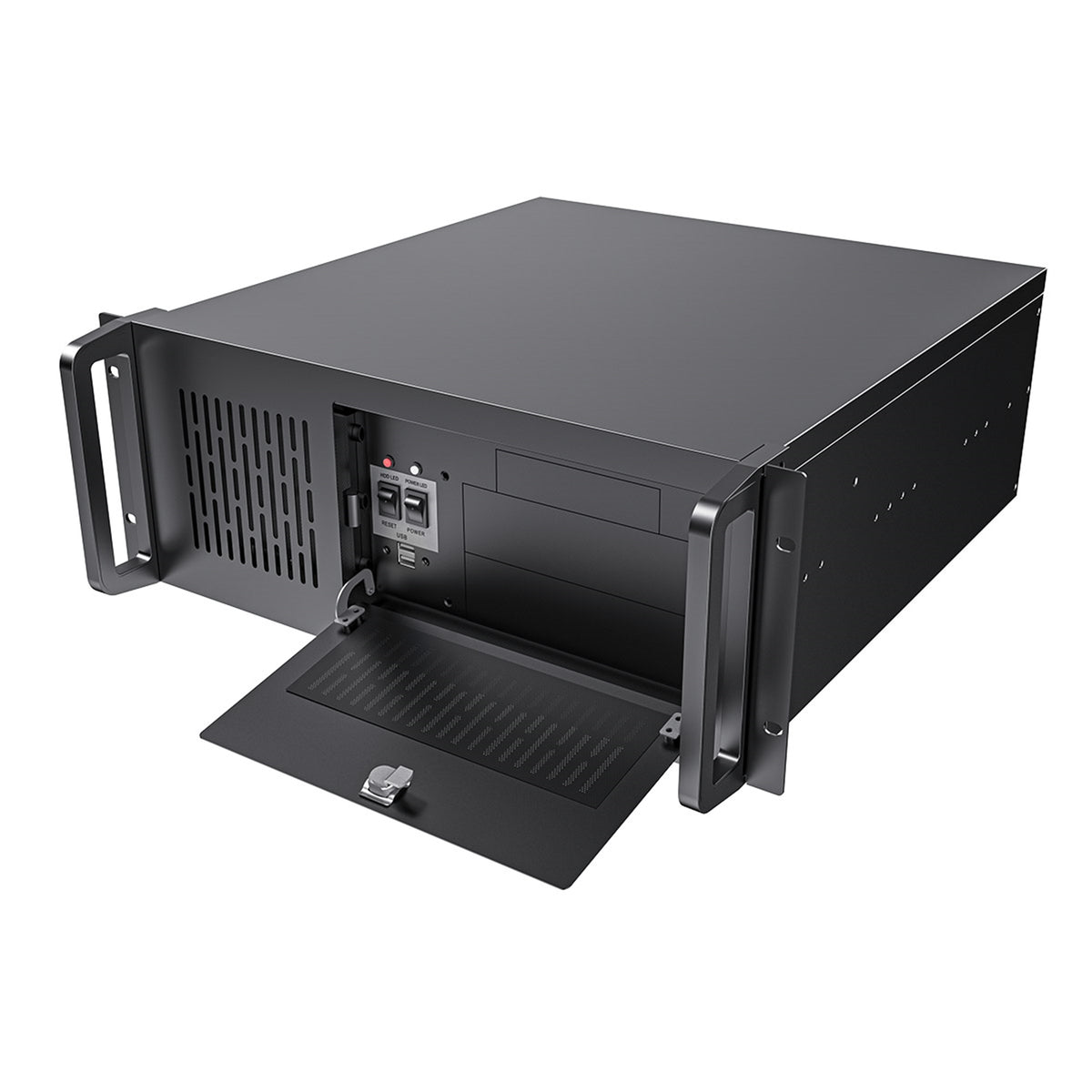

Switches - Power ON/OFF & Reset
Indicators - LEDs for HDD LED and Power LED

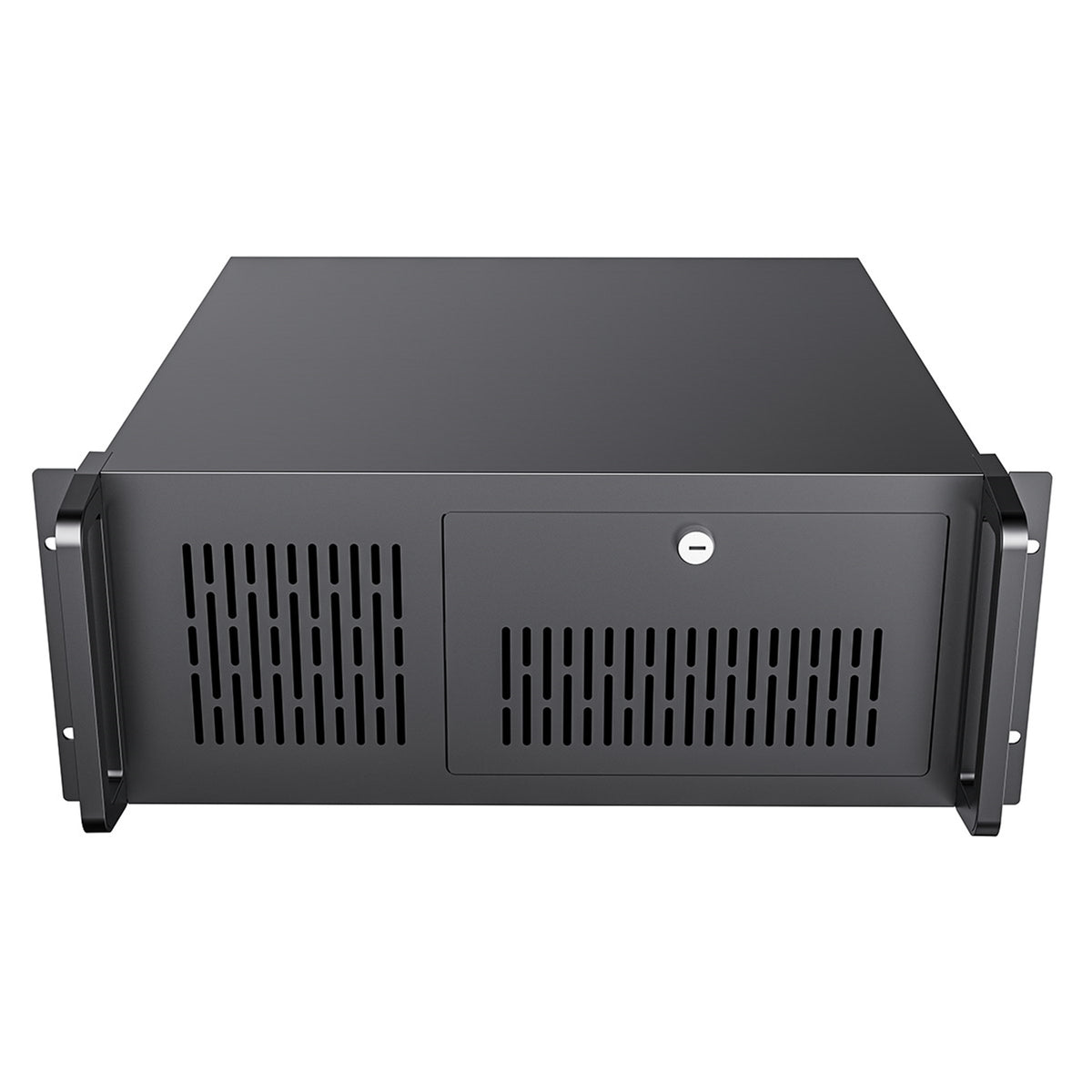

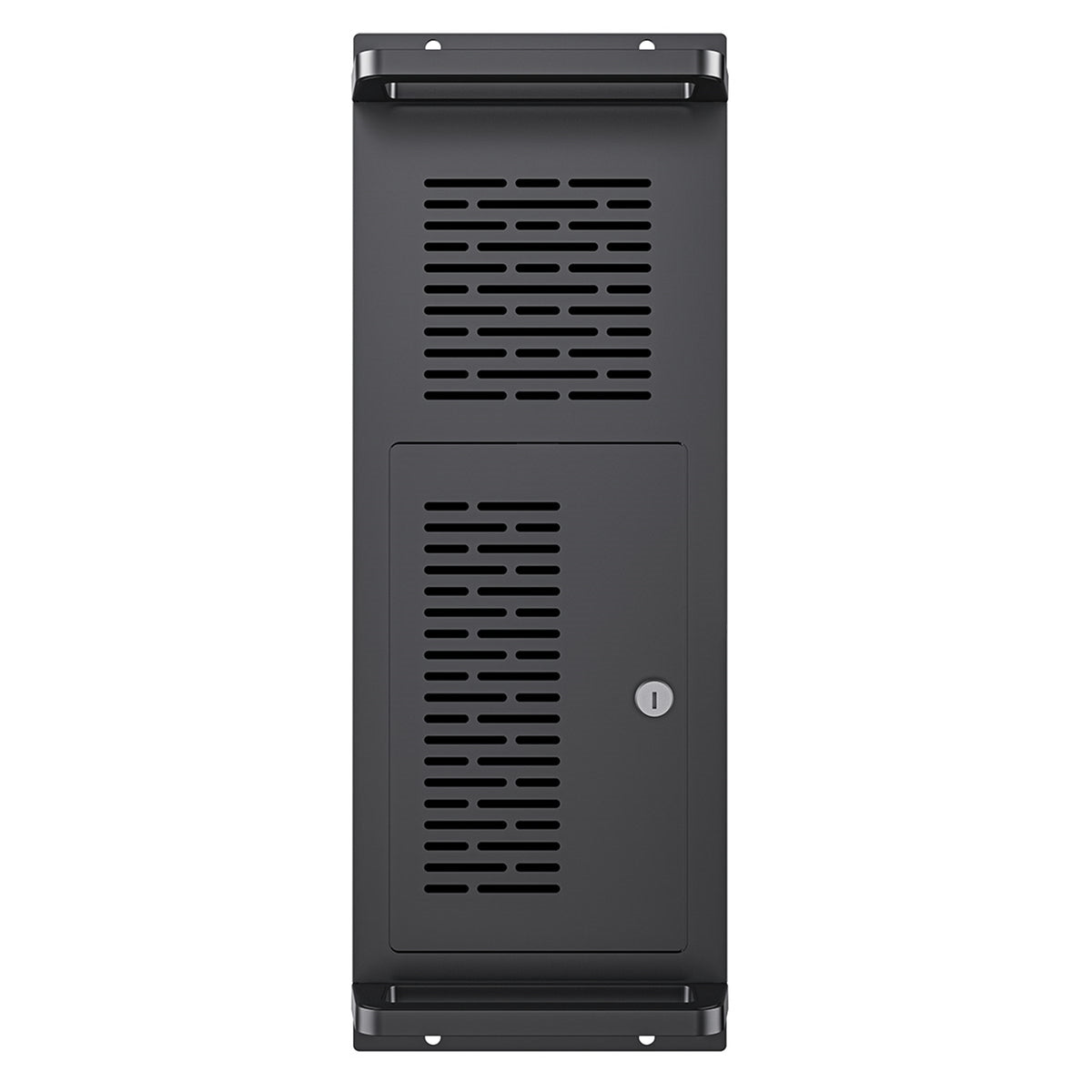

Security - Front Door Is Lockable

Specifications

Rackmount Dimensions (Excluding Fascia / Panels):(W) 428 x (H) 172 x (D) 455mm


Case Specifications

Form Factor
Rackmount

Motherboard Support
ATX, Micro ATX, Mini ITX

PSU Support
Standard ATX

PSU Location
Bottom

Gaming Case
No

Water Cooling
Not Water Cooling Ready

Body Material
0.7mmSECCmetal

Front Bezel Material
1.5mm SGCC metal

Side Panel
Blank

External Bays
2 x 5.25" External
1 x 3.5" External

Internal Bays
8 x 3.5" Internal
2 x 2.5" Internal

Drive Bay Notes
1 x 2.5" & 3.5" is Shared

Expansion Slots
7 x Full Size

Cooling
Cooling Front:Space For 1 x 120mm Fan (1 x 120mm Black Fan inc.)
Cooling Top:None
Cooling Rear:Space for 2 x 60mm Fans
Cooling Side:None
Cooling Bottom:None

IO Ports
2 x USB 2.0

GPU Max Length
270mm

CPU Cooler Maximum Height115mm

Front Bezel Colour
Black

Body Colour
Black

PSU Included
No

General Specifications

Manufacturer Part Number:4U RACKMOUNT
EAN Number:5055492407283
Has Mains Plug:No
Colour:Black
What's In The Box:4U 500 Rackmout
Accessories
Unit (Product) Dimensions (mm):482mm x 177mm x 501mm (W x H x D)
Packaging Dimensions (mm):565mm x 253mm x 527mm (W x H x D)
Net Weight (KGs):8.1 KGs
Gross Weight (KGs):9.2 KGs
